MODEL- OMNISMART700          VENDOR- TRIPPLITE

FEATURES- OmniSmart 700 UPS System
       6 outlets (3 UPS/surge, 3 surge-only); Automatic Voltage Regulation
        (AVR) corrects brownouts and overvoltages without draining battery
        power; Built-in RJ11 jacks provide complete modem/fax surge
        protection; USB port and free software facilitate unattended
        shutdown.

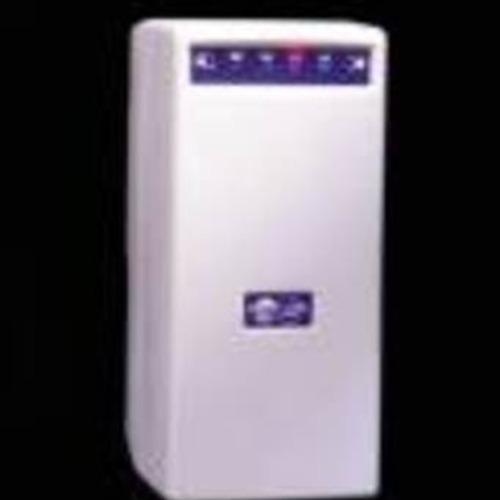

       Tripp Lite's OMNISMART700 UPS System provides intelligent, line-
        interactive battery backup for personal computers, network
        workstations and small servers. 700 VA of battery backup maintains
        your Internet or network connection allowing you to work online
        through short blackouts or safely shut down during longer ones.
       Unique design features 6 outlets (3 UPS & surge + 3 surge-only),
        diagnostic LEDs and a built-in serial port that works with
        PowerAlert Software to provide automatic unattended shutdown.
        Built-in RJ11 jacks prevent surges from damaging your modem/fax
        equipment. A 6-ft. telephone cord is also included.
       $50,000 Ultimate Lifetime Insurance. No warranty cards required for
        coverage!
         DSL connections.
       Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
  Includes OMNISMART700 UPS System, PowerAlert Software by download and
    6 ft. network cable, 6 ft. Telephone cord, Warranty information and
    Instruction manual.

  -- SPECIFICATIONs -----------------------------------
RATING         -  700 Volt Amps,  450 Watts
RECEPTACLES    - (3) NEMA 5-15R UPS supported outlets
                 (3) NEMA 5-15R Surge Only outlets
INTERFACE PORT - (1) built-in USB communications port for use with
                  PowerAlert software and cabling.
FAX/MODEM PORT - Set of RJ11 jacks protect two phone lines simultaneously
                 from surges.
WAVEFORM       - On-line: Pure Sine
              On-battery: PWM Sinusoidal
RUNTIME        -  17 minutes (half-load),  5 minutes (full-load)
                 Up to 45 min. typical runtime (PC w/15" monitors).
RE-CHARGE TIME - 2 to 4 hours to 90%
TRANSFER TIME  - 2 - 4 ms
SUPPRESSION    - 360 Joules          MAX. SURGE CURRENT- 27,000 amps
   Suppression response time: Less than one nanosecond
EMI/RFI        - Greater than 40 dB @ 1 MHz  Noise Reduction
VOLTAGE        - Input/Output: 120
  Line interactive system corrects voltage to nominal levels, boosting input
   between 75 to 112 volts and reducing input between 127 and 147 volts.
   Output voltage in battery mode is regulated to 120 volts +/- 5%.
BATTERY        - External battery not supported.
                 Battery access via a battery door.
CONTROLS       - On/off and Self test/alarm silence switches, LEDs indicate
                 on-line, on-battery, voltage correction, and battery
                 low/replace, audible alarms.
SOFTWARE       - PowerAlert UnAttended Shutdown software.
SIZE -  4.75"w x 10.5"h x 7.00"d          WT.-  20 lbs.
   www.tripplite.com
