Product Description:

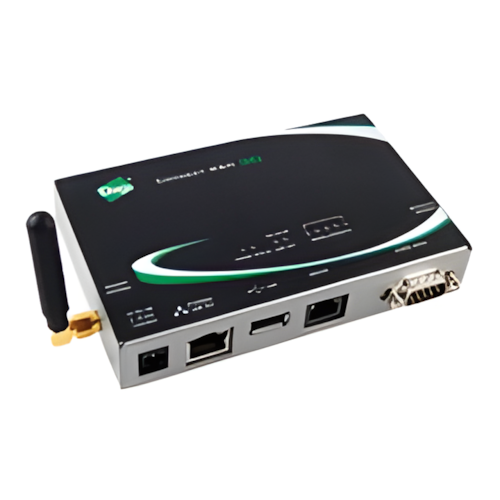

The Digi Connect WAN family of commercial-grade Wireless WAN cellular
routers provides secure high-speed wireless connectivity to remote
sites and devices. Digi Connect WAN cellular products can be used for
reliable primary wireless network connectivity to equipment at remote
locations, as well as for a backup to existing landline communications.
They are also ideal for use where wired networks (e.g., leased line /
frame relay, ISDN, DSL) are not feasible, or where alternative network
connections are required. Digi Connect WAN products are able to provide
a primary Wireless WAN connection to remotes sites containing Ethernet
and / or serial devices. Applications include new construction
locations, power utility substations, retail / POS sites, temporary
facilities without primary wired connections, and many more. For backup
network applications, Digi Connect WAN cellular products integrate with
remote locations via a secondary Ethernet WAN port on an existing
router. This provides a truly diverse network connection for remote
locations requiring maximum uptime, such as retail / POS and financial
applications. Digi SureLink is a unique feature that provides a
"persistent connection" over wireless networks by utilizing a three-way
client and server initiated scheme. All Digi Connect WAN cellular
products seamlessly integrate with Digi Connectware Manager, which
provides easy setup, configuration and maintenance of large
installations. Users can upgrade firmware or change settings on
thousands of devices with only a few clicks. It also makes
troubleshooting simple by reporting problems like identifying
misbehaving devices or network issues.
| Device Type |
Wireless router |
| Form Factor |
External |
| Service Provider |
Sprint Nextel |
| Width |
5.2 in |
| Depth |
3.3 in |
| Height |
1 in |
| Localization |
North America |
| Networking |
| Connectivity
Technology |
Wireless, wired |
| Data Transfer
Rate |
100 Mbps |
| Data Link
Protocol |
Ethernet, Fast Ethernet |
| Switching
Protocol |
Ethernet |
| Network /
Transport Protocol |
TCP/IP, UDP/IP |
| Remote
Management Protocol |
HTTP |
| Status Indicators |
Link activity, power, link OK |
| Features |
DHCP support, NAT support, VPN
passthrough, Access Control List (ACL) support, IPSec passthrough |
| Compliant
Standards |
IEEE 802.3 |
| Antenna |
| Antenna |
External detachable |
| Antenna Qty |
2 |
| Communications |
| Type |
Wireless cellular modem |
| Cellular
Enhancement Protocol |
GSM, GPRS, UMTS, EDGE, HSDPA, CDMA
2000 1X EV-DO Rev. A |
| Expansion / Connectivity |
| Interfaces |
1 x cellular phone - CDMA2000 1X
EV-DO Rev. A
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x management - RS-232/422/485 - 9 pin D-Sub (DB-9)
1 x USB |
| Miscellaneous |
| Encryption
Algorithm |
SSL |
| Authentication
Method |
Secure Shell v.2 (SSH2) |
| Compliant
Standards |
CE, FCC Class A certified, EN 60950,
EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15,
RoHS |
| Power |
| Power Device |
Power adapter - external |
| Power
Consumption Operational |
3.4 Watt |
| Environmental Parameters |
| Min Operating
Temperature |
-22 °F |
| Max Operating
Temperature |
158 °F |
| Humidity Range
Operating |
5 - 95% |
|
