Product Description:

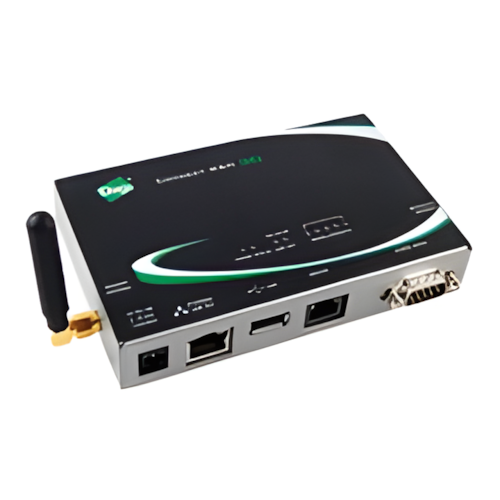

Digi
Connect WAN products provide high-performance wireless communications
for primary and backup connectivity to remote locations. They offer an
easy and cost-effective means of connecting virtually any remote
location into the corporate IP network. They are ideal for use where
wired networks are not feasible or where alternative network
connections are required. Benefits include instant deployment,
elimination of wiring costs and problems due to wire breaks, the
ability to traverse firewalls, and the ability to move the connection
virtually anywhere.
| Device Type |
Wireless router |
| Form Factor |
External |
| Service Provider |
AT&T |
| Width |
5.2 in |
| Depth |
3.3 in |
| Height |
1 in |
| Localization |
North America |
| Networking |
| Connectivity
Technology |
Wireless, wired |
| Data Transfer
Rate |
100 Mbps |
| Data Link
Protocol |
Ethernet, Fast Ethernet |
| Switching
Protocol |
Ethernet |
| Network /
Transport Protocol |
TCP/IP, UDP/IP |
| Remote
Management Protocol |
HTTP |
| Status Indicators |
Link activity, power, link OK |
| Features |
DHCP support, NAT support, VPN
passthrough, Access Control List (ACL) support, IPSec passthrough |
| Compliant
Standards |
IEEE 802.3 |
| Antenna |
| Antenna |
External detachable |
| Antenna Qty |
1 |
| Communications |
| Type |
Wireless cellular modem |
| Cellular
Enhancement Protocol |
GSM, GPRS, UMTS, EDGE, HSDPA |
| Expansion / Connectivity |
| Interfaces |
1 x cellular phone - GSM
850/900/1800/1900 / UMTS 2100
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x management - RS-232/422/485 - 9 pin D-Sub (DB-9)
1 x USB |
| Miscellaneous |
| Encryption
Algorithm |
SSL |
| Authentication
Method |
Secure Shell v.2 (SSH2) |
| Compliant
Standards |
CE, FCC Class A certified, EN 60950,
EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15,
RoHS |
| Power |
| Power Device |
Power adapter - external |
| Power
Consumption Operational |
3.4 Watt |
| Environmental Parameters |
| Min Operating
Temperature |
-22 °F |
| Max Operating
Temperature |
158 °F |
| Humidity Range
Operating |
5 - 95% |
|
