MODEL- 3048-00-02CG

DESCRIPTION- 56K V.92 Serial Faxmodem with Windows & Macintosh Software
       The 3048CG is a high-performance 56K fax modem that plugs into
        the serial port of any computer. Both Windows and Macintosh
        fax/modem software is included. The model 3048CG performance is
        enhanced by an on-board Controller, DSP (Digital Signal Processor)
        and ITU V.92/V.44 standard compatibility. Robust power handling
        features make this modem suitable for unattended remote
        applications. Those features include advanced power handling to
        protect against brownouts and power glitches that can freeze
        other modems, and ZoomGuard Lightning Protection.
       Other features include Extended Status Reporting with ten indicator
        lights, a high-quality monitor speaker, and a heavy-duty on/off
        switch. This product is compliant with Restriction on Hazardous
        Substance (RoHS) regulations and can be used on systems shipped
        into the EU. 2556IM.

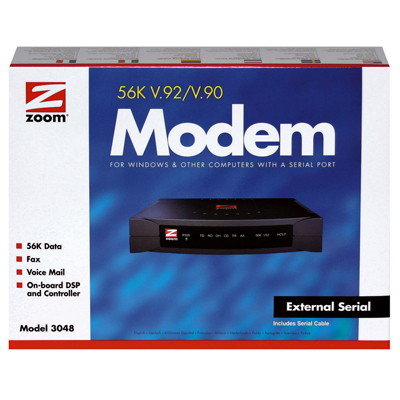

    Includes V.92 serial modem 3048CG, Phone cord, Power adapter, Serial
      cable, User guide, CD with software and multilingual documentation.
* Faster Negotiation
   Most modems call the same Internet service number every time. V.92
   modems save the connection profile to significantly reduce connection
   time.
* Improved Data Compression
   The V.42bis compression standard was set many years ago, before the
   World Wide Web! The V.44 standard is designed for the kinds of content
   seen on the Web today and can noticeably improve your download speeds.
* Faster Upload Speed
   V.92 can send e-mail and attachments up to 40 percent faster than V.90
   modems.
* Modem-on-Hold
   Allows you to answer an incoming call without losing an Internet
   connection on the same line.
* ZoomGuard Lightning Protection
   Provides the best protection in the industry against the leading cause
   of modem failure.
* Advanced Power Handling
   Protects against brownouts and power glitches which can freeze other
   modems - a "must-have" for unattended modem applications.
* Caller I.D.
   For use with compatible phone services.
* High-quality Monitor Speaker
   To clearly monitor the status of the call's progress: dialtone, busy,
   ring, voice answer, or any other audible output from the phone line.
* On-board Digital Signal Processor and Controller
   For the highest level of system stability and compatibility with
   virtually any operating system that supports a serial communications
   port.
* Extended Status Reporting
   Reports status of modem's performance with ten indicator lights, which
   include a V.92 indicator and a modem-on-hold indicator.
* Voice Mail Support
   When used with a soundcard.
* Multiple Language Documentation and Software
   The modem documentation and software are provided in: English, Spanish,
   Portuguese, German, French, Dutch, Italian, and Swedish. Modem hardware
   documentation is also provided in Greek, Polish, and Turkish. Software
   is also provided in Dansk, Norsk, Chinese and Suomi.
* RoHS compliant

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- RS-232 Serial port
DATA SPEEDS  - 56,000 bps receive/48,000 bps send with auto-negotiation of
                 V.92 and V.90.
               300 to 33,600 bps full-duplex supporting all international
                 and Bell standards.
FAX SPEEDS   - 300 to 14,400 bps, Group 3, Class 1
STANDARDS    - Data         : V.92, V.90, V.34, V.32bis, V.32, V.22bis,
                                V.22A/B, V.22, V.23, V.21, Bell 103/212A.
               Compression  : V.44, V.42bis, MNP5
               Error Control: V.42, MNP2-4
               Hayes AT and extended AT command set compatible
               V.80 for H.324 (videophone) compatibility
CONNECTORS   - (2) Standard (RJ-11) telephone jacks for telephone and line
                   connections.
DIALING      - Supports programmable duration DTMF (touchtone)
               Call progress tone detection (dial tones, busy, ring, etc.)
VIDEO        - Supports V.80 (required for point-to-point H.324 video over
                 standard phone lines).
MISCELLANEOUS- On-board Controller and DSP
               Downloadable firmware for easy upgrades
               Voice mail with multiple private mailboxes, password
                 protection, remote retrieval and easy message review
                 (requires soundcard).
               Plug and Play for automatic configuration with Windows 95,
                 98, Me, 2000, XP and NT 4.0.
               10 LED status lights: Power, Transmit Data, Receive Data,
                 Off Hook, Carrier Detect, Terminal Ready, Auto Answer,
                 56K, V.92 Operation, Modem-On-Hold.
REQUIREMENTS - Available serial port (also called RS-232 port, modem
                 port, or COM port).
               Voice Mail requires a soundcard or built-in audio
                 capability for message playback.
APPROVALS    - FCC Part 15B and 68, UL, C-UL, CE, Industry Canada,
                 RoHS compliant.
DIMENSIONS   - 5.77" x 1.12" x 4.42"
      www.zoom.com
