MOXA

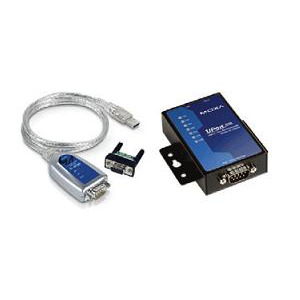

USB to 1-Port RS-232/422/485 Serial converter, 921.6Kbps, 15KV ESD Protection, mini DB9F-to-TB

1371384_MOXA_UPort1150.jpg-USB_TO_PORT_RS_232_422_485_SERIAL_CONVERTER_921.6KBPS_15KV_ESD_PROTECTION_MINI_DB9F_TO_TB

Manufacturer	MOXA
Mfg. Part #	UPort 1150
ITEM#	830076
Unit Price	$100.26 (~CAD$100.05)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$100.26 (~CAD$100.05)	$118.26 or less (~CAD$118.02)
3 ~ 7	$99.16 (~CAD$98.96)	$106.99 or less (~CAD$106.77)
8 ~ 14	$98.05 (~CAD$97.85)	$103.55 or less (~CAD$103.34)
15 ~ 19	$96.94 (~CAD$96.74)	$101.74 or less (~CAD$101.53)
20 ~	$95.83 (~CAD$95.63)	$100.46 or less (~CAD$100.25)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
1-port RS-232/422/485 USB-to-serial converters with 2 KV isolation protection (optional)

Instant Plug & Play
The UPort™ 1150/1150I USB-to-serial converters allow you to connect 1 RS-232/422/485 device to your laptop or workstation through the USB (Universal Serial Bus) port. These plug & play USB solutions are compatible with both new and legacy RS-232/422/485 devices, and are perfect for mobile, instrumentation, and point-of sale applications.

Simplified, Hassle-free Serial Port Expansion
USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports, saving on setup time and cost.

Features and Benefits

Compatible with USB 2.0
12 Mbps USB data rate
Software selectable RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485
Certified drivers provided for Windows (including Vista), WinCE 5.0, and Linux
15 KV ESD protection for all serial ports
2 KV optical isolation protection (UPort™ 1150I)
Full modem status LEDs for UPort™ 1150I

Specifications

USB
Compliance	USB 1.0/1.1 compliant, USB 2.0 compatible
Connector(s)	UPort™ 1150: USB type A UPort™ 1150I: USB type B
Speed	12 Mbps (Full-Speed USB)
Serial Interface
Serial Standards	RS-232/422/485
Number of Ports	1
Connector(s)	DB9 male
Serial Line Protection
ESD Protection	15 KV embedded
Optical Isolation Protection	2 KV (UPort™ 1150I only)
Performance
Baudrate	50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
I/O Address	Assigned by BIOS
IRQ	Assigned by BIOS
FIFO	64 bytes
Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w	TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w	Data+(B), Data-(A), GND
Driver Support
Operating Systems	Windows (2000, XP x86/x64, 2003 x86/x64, Vista x86/x64), WinCE 5.0, Linux 2.4 x64, 2.6 x86/x64
Physical Characteristics
Enclosure	UPort™ 1150: ABS + PC UPort™ 1150I: SECC sheet metal (1 mm), IP30 protection
Dimensions	UPort™ 1150: 37.5 x 60 x 20.5 mm (1.48 x 2.36 x 0.81 in) UPort™ 1150I: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Environmental Limits
Operating Temperature	0 to 55°C (32 to 131°F)
Operating Humidity	5 to 95% RH
Storage Temperature	-20 to 70°C (-4 to 158°F)
Regulatory Approvals	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11, FCC Part 15 Class B
Power Requirements
Power Consumption	UPort™ 1150: 77 mA @ 5 VDC UPort™ 1150I: 260 mA @ 5 VDC
Warranty
Warranty Period	5 years
