Product Description:

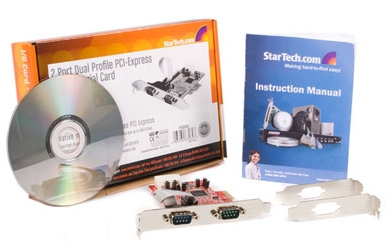

This
dual profile PCI Express RS-232 Serial card turns a PCI Express slot
into two available RS-232 (DB9) serial connection, while relying on a
native, single-chip design for optimal performance and reliability.
Compatible with a broad range of operating systems, including
Windows 2000/XP/2003/Vista, Linux Kernel 2.6.11 and up, and MAC OS 10.4
and above, the PEX2S552 PCI Express Serial Card also features an
optional low profile bracket that allows the card to be installed in
virtually any computer case.
Features
128-byte deep FIFO per transmitter and receiver
Automated in-band software flow control using programmable
Xon/Xoff in both directions
Automated out-of-band flow control using CTS/RTS and DSR/DTR
Compliant with PCI Express base specifications revision 1.0a
Native single-Chip, single lane PCI Express
Selectable power output on pin 9 for the serial port
Single chip design optimizes speed and reliability
Two high speed RS-232 serial ports with data transfer rate up
to 460.8 Kbps
Specifications
| Warranty |
Lifetime warranty |
| Bus
Type |
PCI
Express |
| Connector
Types |
2 -
DB9 Male |
| Product
Height |
0.79
in [20 mm] |
| Product
Length |
4.13
in [105 mm] |
| Number
of Ports |
2 |
| Carton
Quantity |
50 |
| Product
Width |
4.72
in [120 mm] |
| Bus
Type |
PCI
Express |
| Chipset |
MOSCHIP
MCS9901 |
| Maximum
Date Transfer Rate |
460.8
Kbps |
| Note |
Selectable
power output on pin 9 of the serial port |
| OS
Support |
Windows
2000/XP/2003/Vista/Linux Kernel 2.6.11 & above/MAC 10.4 & above
|
| Supports |
x1,
x2, x4, x8, x16(lane) |
|
