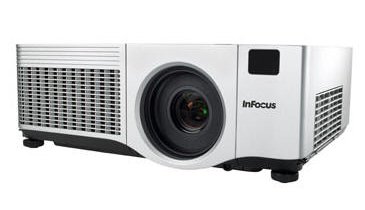

Product Description:
The InFocus IN5102 offers rich installation options with onboard
connectivity and a full range of lens options. This wireless-ready 4000
lumen network projector combines functional details with exceptional
power and high performance. The IN5102 outputs 4000 max ANSI lumens to
illuminate the brightest boardroom or the largest conference hall.
Equipped with HDMI 1.3 the IN5102 will connect to the latest PCs and
supports 1080p video and up to UXGA resolution, providing images with
stunning detail. The IN5102 features interchangeable lenses to easily
fit ultra short-throw rear projection or long-throw installation needs.
Horizontal and vertical lens shift make the IN5102 a flexible projector
to integrate. HDMI 1.3 and 5 BNC inputs enable compatibility with all
the leading switching and signal routing hardware. Four "assignable"
audio sources allow mix and match pairing of audio with data or video
sources. Additional features include wireless-compatible architecture
supports InFocus LiteShow II, 2 stereo speakers and a full-featured
remote with laser and wired control functionality.
| General |
| Device Type |
LCD projector |
| Built-in Devices |
Stereo speakers |
| Width |
16.5 in |
| Depth |
12.4 in |
| Height |
5.1 in |
| Enclosure Color |
Black, silver |
| Projector / Panel |
| Image Brightness |
4000 ANSI lumens |
| Image Brightness
(Reduced) |
3200 ANSI lumens |
| Image Contrast
Ratio |
1000:1 |
| Image Size |
2.5 ft - 29 ft |
| Projection
Distance |
3.7 ft - 44 ft |
| Throw Ratio |
1.5 - 1.8:1 |
| Resolution |
1024 x 768 (native) / 1600 x 1200
(resized) |
| Native Aspect
Ratio |
4:3 |
| Video Bandwidth |
140 MHz |
| Color Support |
24-bit (16.7 million colors) |
| Max Sync Rate (V
x H) |
120 Hz x 91 kHz |
| Lamp Type |
UHB 275 Watt |
| Lamp Life Cycle |
2000 hour(s) / 3000 hour(s)
(economic mode) |
| Controls /
Adjustments |
Keystone correction |
| OSD Languages |
Danish,
Chinese (traditional), Chinese (simplified), English, German, French,
Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian,
Spanish, Dutch, Turkish, Korean |
| Features |
Eco-Mode technology, High-bandwidth
Digital Content Protection System (HDCP), Wireless Ready |
| Projector Lens System |
| Lens |
Standard lens |
| Lens Aperture |
F/1.74-2.06 |
| Zoom Type |
Manual |
| Zoom Factor |
1.2x |
| Keystone
Correction Type |
Digital |
| Keystone
Correction Direction |
Horizontal, vertical |
| Vertical
Keystone Correction |
-40 / +40 |
| Horizontal
Keystone Correction |
-20 / +20 |
| Lens Shift Type |
Powered |
| Lens Shift
Direction |
Horizontal, vertical |
| Vertical Lens
Shift |
1:1 - 9:1 |
| Horizontal Lens
Shift |
6:4 - 4:6 |
| Video Input |
| Analog Video
Format |
NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC
4.43 |
| Analog Video
Signal |
RGB, S-Video, composite video,
component video |
| Digital Video
Standard |
High-Definition Multimedia Interface
(HDMI) |
| Digital
Television Video Formats |
480p, 720p, 1080i, 480i, 576i, 576p,
1080/60p |
| Video Output |
| Analog Video
Signal |
RGB |
| Audio Output |
| Type |
Speaker(s) - integrated |
| Sound Output Mode |
Stereo |
| Output Power /
Channel |
4 Watt |
| Speaker(s) |
1 x right / left channel |
| Input Device |
| Type |
Remote control - external - wireless |
| Expansion / Connectivity |
| Interfaces |
1 x HDMI input - 19 pin HDMI Type A
1 x component video input - BNC x 5
1 x component video input - RCA x 3
1 x VGA input - 15 pin HD D-Sub (HD-15)
1 x S-video input - 4 pin mini-DIN
1 x composite video input - RCA
2 x audio line-in - RCA x 2
2 x audio line-in - mini-phone stereo 3.5 mm
1 x remote control - mini-phone 3.5 mm ( management )
1 x USB - mini-USB Type B ( management )
1 x serial RS-232 ( management )
1 x remote control - sub-mini phone 2.5 mm ( management )
1 x VGA output - 15 pin HD D-Sub (HD-15)
1 x audio line-out - mini-phone stereo 3.5 mm
1 x network - RJ-45 ( management ) |
| Miscellaneous |
| Cables Included |
1 x VGA cable
1 x A/V cable |
| Compliant
Standards |
CE, UL, TUV GS, GOST, cUL, NOM, CCC,
PSB, FCC, IRAM, RoHS |
| Power |
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Power
Consumption Operational |
420 Watt |
| Manufacturer Warranty |
| Service &
Support |
2 years warranty |
| Service &
Support Details |
Limited warranty - parts and labor -
2 years
Limited warranty - lamp - 6 months
Limited warranty - accessories - 90 days |
| Environmental Parameters |
| Min Operating
Temperature |
50 °F |
| Max Operating
Temperature |
95 °F |
| Sound Emission |
32 dB |
|
