Product Description:

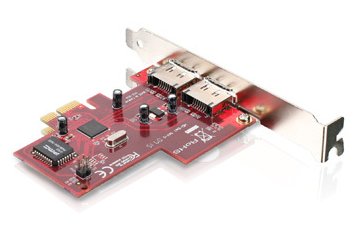

The IOGEAR 2-Port RAID eSATA 3.0Gbps Dual Profile PCI Express Card adds
2 external SATA ports to your desktop computer. It is great for users
who want to add SATA connectivity to their computers but do not want to
buy a whole new computer. Devices commonly used with this host adapter
are hard drives, Blu-ray optical drives HD-DVD drives, media center
drives and more. The low profile design of this adapter makes it ideal
for computers that have limited internal expansion space. The 2-Port
RAID eSATA 3.0Gbps Dual Profile PCI Express Card also supports multiple
RAID (Redundant Array of Independent Drives) configurations. RAID can
be designed to provide increased data reliability or increased I/O
performance, or both. The card supports RAID 5, 0, 1, 10 and JBOD
setups. This card is designed to work on the high-bandwidth PCI-Express
interface, effectively quadrupling the amount of available computing
bandwidth over the traditional PCI interface. IOGEAR'S PCI-Express SATA
Cards support all Serial ATA features, including 3.0Gbps SATA transfer
speeds, native command queuing, port multipliers with FIS-based
switching, programmable output signal swing strengths for longer
external cables or extended backplanes, hot plugging, enclosure
management and ATAPI device support.
| General |
| Device Type |
Storage controller (RAID) - plug-in
card |
| Interface Type |
PCI Express x1 |
| Width |
0.4 in |
| Depth |
5 in |
| Height |
4.5 in |
| Storage Controller |
| Controller
Interface Type |
Serial ATA-300 |
| Data Transfer
Rate |
300 MBps |
| Supported Devices |
Hard drive, DVD drive, disk array
(RAID) |
| Channel Qty |
2 |
| Max Storage
Devices Qty |
2 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| Processor |
Silicon Image SiI3112 |
| Expansion / Connectivity |
| Interfaces |
2 x storage - eSATA-300 - 7 pin
external Serial ATA |
| Compatible Slots |
1 x PCI Express x1 |
| Miscellaneous |
| Included
Accessories |
Low-profile bracket |
| Compliant
Standards |
CE |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft
Windows 2000 / XP, Microsoft Windows Server 2003, Microsoft Windows
Vista, Microsoft Windows Vista (64-bit versions), Apple MacOS X 10.4.9,
Apple MacOS X 10.4.10, Apple MacOS X 10.5.1, Apple MacOS X 10.4.11 |
| Manufacturer Warranty |
| Service &
Support |
3 years warranty |
| Service &
Support Details |
Limited warranty - 3 years |
|
