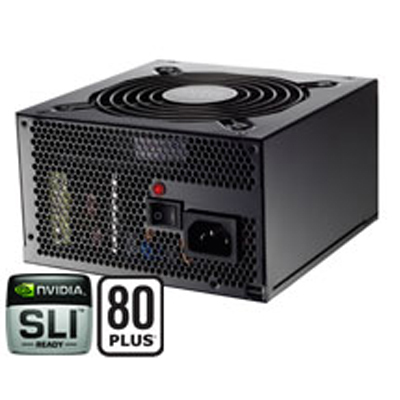

MODEL- REALPOWERPRO550    VENDOR- COOLERMASTER

FEATURES- Real Power Pro 550 Watt Power Supply
       In order to satisfy more customer's demand for high-end PSU, Cooler
        Master is announcing the Real Power Pro series, to continue our
        Real Power series's well known reputation. It is compliant with the
        newest Intel Standard ATX 12V V2.2 and SSI standard EPS 12V V2.91
        simultaneously.
       In addition to the clean and stable power, the advanced features of
        this Power Supply include Quad GPU compatibility, Quad CPU support,
        and an 85% efficiency rating. With the world's first technology of
        six +12V rails, Real Power Pro proves to be a spectacular
        performer, especially for workstation and high-end graphic card
        system, which includes 4 connectors for the most powerful PCI
        Express VGA Card.
* Eco-design for energy and money saving by Active PFC. (>0.99) / High
  Effieicency (>80%).
* Ultra-silent operation with intelligent 120mm fan speed controller makes
  superb heat dissipation at low noise (17 dBA).
* Compliance with the newest Intel standard ATX 12V V 2.2
* Compliance with the newest SSI standard EPS 12V V2.91
* PCI-e connector with bead core protection to minimize EMI for reducing
  noises.
* Worry-free Power Failure Detector will light up when Over-Voltage, Under-
  Voltage, Over-Temperature, Over-Current, Over-Loading, and Short circuit
  occur.

  -- SPECIFICATIONs -----------------------------------
CONNECTORS   - 20+4 Motherboard Connector x1
               4-Pin + 12v CPU Connector x1
               8-pin + 12v CPU Connector x1
               6-Pin PCI-e connectors x4
               8-pin PCI-e Connectors x2
               S-ATA Connectors x8
               4-pin Peripheral Connectors x6
               4-Pin Floppy connector x1
TYPE         - ATX Form Factor 12V V2.2/SSI standard EPS 12V V2.91
INPUT VOLTAGE- 90-264V (Auto Range)
INPUT CURRENT- 8A @ 115 VAC/4A @ 230 VAC
INPUT FREQUENCY RANGE-
               47-63 Hz
PFC          - Active PFC (0.99)
POWER GOOD SIGNAL-
               100-500 ms
HOLD UP TIME - >17ms
EFFICIENCY   - >80% Typically
MTBF         - >100,000 hrs
PROTECTION   - OVP/OCP/OTP/OLP/Short/Full Protection
OUTPUT CAPACITY-
               550 Watts Continuous
               660 Watts Max. Output Capacity
APPROVALS    - CE/cUL/TUV/NEMKO/BSMI/FCC
DIMENSIONS   - Standard ATX 150 x 140 x 86 (mm)
