Product Description:

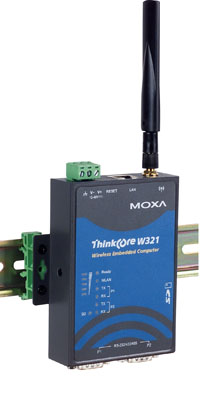

The ThinkCore W321 embedded computer features 2 software-selectable
RS-232/422/485 serial ports, 802.11a/b/g for WLAN communication, 1
Ethernet port, and an SD socket for external storage expansion. The
MOXA ART 32-bit ARM9 processor and the built-in Linux system provide a
powerful and reliable platform for any harsh, industrial environment,
promising an ideal solution for industrial M2M applications such as
data acquisition, protocol conversion, and remote device control and
monitoring.
Features
 |
MOXA ART ARM9 32-bit 192 MHz processor |
|
|
On-board 32 MB RAM, 16 MB flash disk |
|
|
802.11a/b/g wireless LAN |
|
|
WEP, WPA, and WPA2 encryption |
|
|
Infrastructure Mode and Ad-hoc Mode supported |
|
WLAN Repeater function supported |
|
|
2 software-selectable RS-232/422/485 serial ports |
|
10/100 Mbps Ethernet for network redundancy |
|
Designed to withstand 5G continuous vibration and 50G
shock |
|
SD socket for storage expansion supported |
|
Ready-to-run Linux 2.6 platform |
|
DIN-rail or wall-mount installation |
|
Robust, fanless design |
|
Hardware Specifications
|
|
|
|
| MOXA ART ARM9 32-bit 192 MHz |
|
|
|
|
|
|
|
|
|
|
| SD socket x 1 or storage expansion |
|
|
|
|
| RS-232 x 1 (TxD, RxD, GND), 4-pin header output |
|
|
|
|
| Reset button x 1 (for resetting to factory defaults) |
|
|
|
|
| RTC, buzzer, Watchdog Timer |
|
|
|
|
| Built-in Embedded Linux with MMU support |
|
|
|
|
| |
| WLAN Communication |
| |
|
|
|
|
|
|
|
|
|
802.11a: 5.15-5.25 GHz,
5.25-5.35 GHz, 5.725-5.825 GHz
802.11b/g: U.S., Europe and Japan product covering
2.4 to 2.484 GHz
|
|
|
|
|
Carrier Sense Multiple Access with
Collision Avoidance (CSMA/CA) |
|
|
|
|
802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSSS (DBPSK, DQPSK, CCK) |
|
|
| Transmission Power
(Typical) |
|
5.15-5.35 GHz: 14 dBm @ 6 Mbps; 14 dBm @ 54 Mbps
5.725-5.825 GHz: 14 dBm@ 6 Mbps; 13 dBm @ 54 Mbps
2.412-2.483 GHz (IEEE802.11g): 17 dBm @ 6 Mbps; 15 dBm @ 54 Mbps
2.412-2.472 GHz (IEEE802.11b): 18 dBm @ 1-11 Mbps |
|
|
| Receiver Sensitivity
(Typical) |
|
5.15-5.35 GHz: 6 Mbps @ -82 dBm; 54 Mbps @ -67 dBm
5.47-5.725 GHz: 6Mbps@ -82 dBm; 54 Mbps @-67 dBm
5.725-5.825 GHz: 6Mbps@ -80 dBm; 54 Mbps @ -69 dBm
2.412-2.472 GHz (IEEE802.11g): 6 Mbps @ -84 dBm; 54 Mbps @-69 dBm
2.412-2.472 GHz (IEEE802.11b): 11 Mbps @ -82 dBm; 1 Mbps @ -90 dBm |
|
|
|
|
54 Mbps with auto fallback (54, 48, 36, 24, 18, 12, 11,
9, 6, 5.5, 2, 1 Mbps)
802.11b supports rates of 1, 2, 5.5, 11 Mbps
802.11a/g supports rates of 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
|
|
|
| Up to 100 meters (@ 11 Mbps, in open areas) |
|
|
|
|
| WEP 64-bit/128-bit, WPA, WPA2 data encryption |
|
|
|
|
|
|
|
| External 2 dbi Dipole Antenna |
|
|
|
|
| Ad-hoc (802.11b/g only), Infrastructure |
|
|
|
| |
| Network Communication |
|
|
| Auto-sensing 10/100 Mbps x 1, RJ45 |
|
|
|
|
| Built-in 1.5 KV magnetic isolation protection |
|
|
|
| |
| Serial Communication |
|
|
| 2 software-selectable RS-232/422/485 ports, DB9 male
connector |
|
|
|
|
| Built-in 15 KV ESD protection for all signals |
|
|
|
|
|
|
|
|
|
|
| None, Even, Odd, Space, Mark |
|
|
|
|
| RTS/CTS, XON/XOFF, RS-485 ADDC™ |
|
|
|
|
| 50 bps to 921.6 Kbps, supports Any Baudrate |
|
|
|
| |
| LEDs |
|
|
|
|
|
|
|
|
| 10M/Link (on connector), 100M/Link (on connector) |
|
|
|
|
|
|
| |
| Power Requirements |
|
|
| |
| Mechanical |
|
|
| 77 x 111 x 26 mm (without wall-mount ear and antenna) |
|
|
|
|
|
|
|
|
|
|
| Wall-mount, DIN-rail (optional, needs DK35A DIN-rail kit)
|
|
|
|
| |
| Environmental |
|
|
| -10 to 60°C (14 to 140°F),
5 to 95% RH |
|
|
|
|
| -20 to 80°C (-4 to 176°F), 5 to 95% RH |
|
|
|
|
| 5G @ IEC-68-2-6, sine wave, 5-500 Hz, 1 Oct./min, 1
hr/axis. |
|
|
|
|
| 50G @ IEC-68-2-27, half sine wave, 30 ms |
|
|
|
| |
| Regulatory Approvals |
|
|
FCC: Part 15C & Part 15E
CE: ETSI EN 301 489-1/-17, ETSI EN 301 893, ETSI EN 300 328, EN50392 |
|
|
|
|
UL/cUL: UL60950-1
TÜV: EN60950-1 |
|
|
|
|
|
|
|
|
|
| |
| Software Specifications |
| Linux |
|
|
|
|
|
|
|
|
|
| TCP, UDP, IPv4, SNMP V1/V3, ICMP, IGMP,
ARP, HTTP, CHAP, PAP, SSH 1.0/ 2.0, SSL, DHCP, NTP, NFS,
SMTP, Telnet, FTP, PPP, PPPoE |
|
|
|
|
|
|
|
| bash, busybox, tinylogin, telnet, ftp, scp |
|
|
| Supported Services
and Daemons |
|
telnetd: Telnet Server daemon
ftpd: FTP server daemon
sshd: Secure shell server
Apache: Web server daemon, supports PHP and XML
MySQL: Database Server and Client
OpenVPN: Virtual private network service manager
iptables: Firewall service manager
pppd: dial in/out over serial port daemon & PPPoE
snmpd: snmpd agent daemon
inetd: TCP server manager program |
|
|
| Application
Development Environment |
|
MOXA Linux API Library
Linux Tool Chain: Gcc, Glibc, GDB
Windows Tool Chain: Gcc, Glibc,Insight (Windows-based source level
debug utility)
BINEncryptor: Encryption tool for binary files; based on MOXA
Intellectual Protection Technology (Patented) |
|
|
|
|
| SD Card, UART, RTC, Buzzer |
|
|
|
|
|
