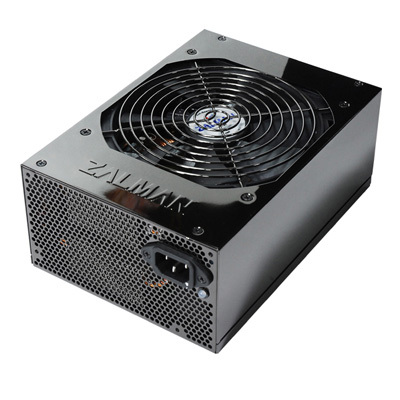

MODEL- ZM1000-HP          VENDOR- ZALMAN USA

FEATURES- Heatpipe-cooled 1000W Power Supply
       1000W PSU equipped with a dual heat-pipe cooling solution for stable
        power supply.
       ZM1000-HP is an ultra-quiet power supply that complies with ATX12V
        Version 2.2, and supports the latest dual-core CPUs (Intel Core2
        series/AMD Athlon64-X2 series), as well as the latest dual graphic
        card systems(NVIDIA SLI-Ready Certified).
* Dual Heatpipes Installed for Maximum Cooling Performance
   A heatpipe with ultra-high cooling performance incorporated on the power
   supply's main rectifiers enables high load operation even at low RPM for
   a dramatic reduction in noise levels.
* Improved Power Factor & Reduced Harmonics through Active PFC
   By implementing Active PFC (Power Factor Correction), the Power Factor
   (PF) is improved from 75% (Passive PFC) up to 99% while harmful harmonic
   frequencies are reduced to meet the line harmonic distortion
   requirements of IEC61000-3-2 Class D.
* High Efficiency Design and 80 PLUS Certified
   This power supply is capable of reaching a maximum of 86% efficiency
   (230VAC, Full & Typical Load) through its use of high switching
   frequency and low power-loss circuitry. This product has been certified
   with the 80 PLUS Power Supply Certification and guarantees a higher
   efficiency compared to uncertified products.
* ATX20+4 Pin Main Connector
   ATX20+4 pin main connector broadens the range of motherboard
   compatibility.
* Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
   Two ATX12V CPU 2  2(4-Pin) power cables can be combined to form an
   EPS12V CPU 8-Pin power cable.
* Four PCI Express VGA Power 6-Pin & 6+2 Pin Connectors
   Four independent 6-Pin Power Connectors (two 6-pin & two 6+2 pin)
   provide support for Nvidia's Quad SLI.
* Modular Cables
   Modular cables provide organized cable management and improved air
   circulation inside the computer case.
* Ultra Quiet 140mm Fan
   Ultra quiet 2-Ball Bearing 140mm fan maximizes the airflow and minimizes
   the noise level enabling a noiseless computing environment with
   optimized cooling.
* Standby Noise Filter Switch
   The 5Vsb Noise Filter eliminates high frequency noise in standby mode.
   The Standby Noise Filter Switch is NOT a power switch. The AC Power Cord
   MUST be unplugged in order to turn the power supply OFF.
* Six Independent +12VDC Outputs
   Six +12VDC rails supply power independently to the CPU, VGA,
   motherboard, and peripheral components for the highest level of
   stability and performance.
* EZ Grip Connectors for ODDs & HDDs
   EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs.
* Gold-Plated Terminals
   Gold-plated the terminals minimize power loss by reducing contact
   resistance.
* Sleeved Cables
   All power cables are sleeved for easy cable management and improved air
   circulation inside the computer case.
* Multiple Safety Features
   Over-Voltage Protection, Over-Current Protection, Short-Circuit
   Protection, Under-Voltage Protection, Over-Temperature Protection.
* Internal Blue LED
   Blue LEDs are installed inside the power supply for cool aesthetics.
* WEEE & RoHS
   Complies to WEEE & RoHS Environmental Directives of Europe.
    - WEEE : Waste Electrical and Electronic Regulations
    - RoHS : Restriction of Hazardous Substances Regulations
* International Safety and EMC Certifications

  -- SPECIFICATIONs -----------------------------------
CONNECTORS      - (2) PCI Express x1 Power connectors
                  (1) PCI Express 3 Power connector
                  (1) PCI Express 4 Power connector
                  (1) CPU Power connector
                  (1) Mainboard Power connector
                  (1) SATA Power connectors
                  (10) ODD/HDD Power connectors
                  (2) FDD Power connectors
AC INPUT RANGE  - 100 ~ 240 VAC, 47/63Hz
AC INPUT CURRENT- 115 VAC, 15A; 230VAC, 8A
PFC TYPE        - Active PFC
POWER FACTOR    - 99% maximum
DIMENSIONS      - 210(L) x 150(W) x 86(H) mm
