Product Description:

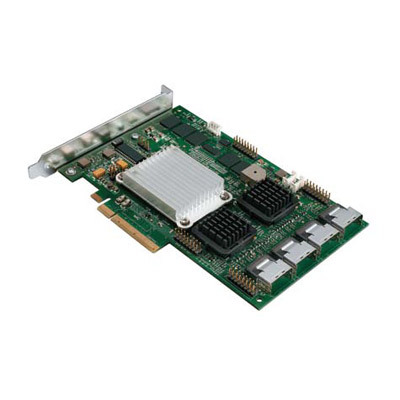

The Intel RAID Controller SRCSASPH16I
addresses data availability concerns that arise when large numbers of
drives are deployed in mission-critical environments. With 16 internal
ports, this SAS/SATA RAID solution can directly connect to SAS or SATA
hard drives. This adapter can support up to122 physical devices for the
most storage-intensive environments.
|
Host Interface:
|
PCI Express x8
|
|
Data Transfer Rate:
|
Up to 300MBps per
Port |
|
RAID Levels:
|
0
1
5
6
10
50
60
|
|
Drive Support:
|
Up to 122 x
Physical |
|
Standard Memory:
|
256MB Embedded
|
|
Ports:
|
4 x SFF-8087 SAS
300 - Serial Attached SCSI Internal |
|
Form Factor:
|
Half-length
Full-height Plug-in Card |
|
Dimensions:
|
4.2" Height x
6.6" Width |
|
Pallet Qty :
|
99995 |
|
Shipping Dimensions :
|
3.1" Height x
7.5" Width x 13.3" Depth |
|
Case Pack Qty :
|
5 |
|
