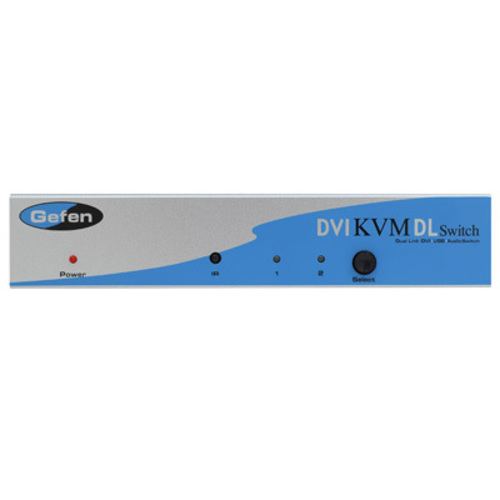

MODEL- EXT-DVIKVM-241DL   VENDOR- GEFEN

FEATURES- 2x1 DVI KVM DL Switcher
       The ex-tend-it 2x1 DVI KVM DL Switcher allows you to easily switch
        between two cross-platform dual link DVI computers using just one
        dual link DVI display and USB 2.0 keyboard and mouse. Dual link DVI
        describes the use of all 24 pins of the DVI connector to achieve
        mega high video resolutions up to 3840x2400. USB 2.0, also known as
        hi-speed USB, is the next generation of USB capable of sending data
        significantly quicker than before. Stereo audio is routed through
        along with the video to the display. Audio, video and control
        signals are "switched" for each computer upon selection, providing
        you with an easy and effective method of accessing two computers
        from one workstation without the hassle of networking.
       You simply connect your dual link DVI display and USB 2.0
        keyboard/mouse to the Switcher's outputs. Then you connect both
        computers' dual link DVI, USB and audio ports to the Switcher's
        inputs using the supplied cables. From there, you select the
        computer you want using the IR remote that comes with the unit or
        with any contact closure remote control. It allows you to choose
        between a Macintosh or PC keyboard/video/mouse combination.
    Includes DVI KVM DL Switcher, RMT-2IR, One 5V Power Supply, Two 6 foot
      Dual Link DVI cables, Two 6 foot USB Cables, Two Audio Cables.
* Switches easily between any two dual link DVI computers with USB 2.0 and
  audio.
* Maintains highest resolutino dual link video
* Saves time and increase your productivity
* Use either PC or Mac USB 2.0 keyboard/mouse
* Auto EQ
* Front panel switching
* Discrete IR remote (included)
* Parallel remote port (RMT-2 not included)
* Supports resolutions up to 1080p, 2K, and 3840x2400
* Supports DDWG standards for DVI monitors
* Rackmountable

  -- SPECIFICATIONs -----------------------------------
VIDEO AMPLIFIER BANDWIDTH- 2 x 1.65 Gbps
INPUT VIDEO SIGNAL       - 1.2 volts p-p
INPUT DDC SIGNAL         - 5 volts p-p (TTL)
DUAL LINK RANGE          - 3840 x 2400
DVI CONNECTOR            - DVI-I 29-pin female (digital only)
AUDIO CONNECTOR          - Mini-phone stereo 3.5mm
USB 2.0 INPUT CONNECTOR  - type "B"
USB 2.0 OUTPUT CONNECTOR - type "A"
POWER SOURCE             - 5V DC Power Supply, Consumption: 15 watts (max)
DIMENSIONS               - 8.5"W x 1.75"H x 4.625"D
                           1U Rackmountable (half rack space)
