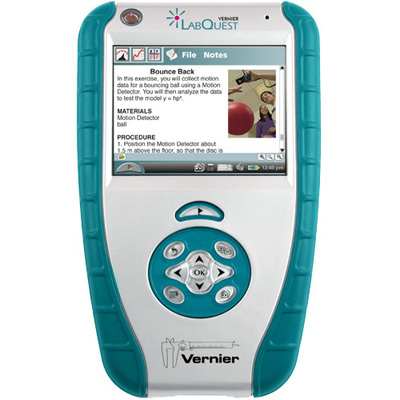

MODEL- LABQUEST           VENDOR- VERNIER SOFTWARE

FEATURES- LabQuest
       Breakthrough technology for science education. This rugged new
        interface is designed to be powerful, yet beautifully simple.
       One-touch simplicity for real-time data analysis at your fingertips,
        the Vernier LabQuest is as easy to use as point and touch.
* Hardware
   - 320 x 240 pixel color touch screen
   - Rechargeable, high-capacity internal battery
   - 40 MB built-in storage and SD/MMC card slot for expandability
   - Built-in temperature sensor and microphone
* Software
   - High-speed data collection with color graphs and powerful analysis
   - Linear and curve fits
   - Draw a prediction before taking data
   - Display a tangent line on the graph
   - Color-coded periodic table, on-screen keyboard, scientific calculator,
     and stopwatch.
   - Export data to Logger Pro software
* Durability
   - Temperature range of 0 - 70 degrees C
   - Splash proof
   - Rugged enclosure with rubber molding for shock absorption
   - Rechargeable, high-capacity internal battery
* Curriculum
   - Experiments from a variety of subject areas, including biology,
     chemistry, physics, Earth science, water quality, advanced chemistry,
     physical science, and more.
   - More than 200 experiments are available in our popular lab books
   - 50 embedded labs with instructions, figures, and data tables

  -- SPECIFICATIONs -----------------------------------
USER INTERFACE- 7 cm x 5.3 cm (8.89 cm diagonal) screen
                320 x 240 pixel color graphic display
                Weighs 350 grams
                416 MHz Application Processor
                LED backlight
                Easily visible outdoors
                Excellent graphing and analysis capabilities
                Stylus and touch screen for navigation and user input
                4 push buttons for quick function access
                5-button navigation cluster
                On/off switch
                On-screen keyboard, plus easy ability to take notes during
                  experiments.
                50 embedded experiments
                On-board periodic table
                Software stopwatch
DATA ACQUISITION-
                Works with existing Vernier sensors
                100k samples per second collection rate
                40 MB on-board data storage with further expansion through
                  SD/MMC card, or USB drive.
                12-bit resolution
                Built-in air temperature sensor, microphone, and sound
                  sensor.
CONNECTORS    - Six channels for Vernier sensors
                USB Standard-A port   (see list of supported printers)
                USB mini-AB port
                DC power jack
                SD/MMC expansion slot
                Audio In/Mic/Out
ENVIRONMENTAL - 0 - 70 degrees C
                Splash proof
                Rugged enclosure with rubber molding for shock absorption
POWER SOURCE  - Rechargeable, high-capacity battery
                DC charging/powering through external adapter (included)
DIMENSIONS    - 10cm W x 16cm H x 4cm D
