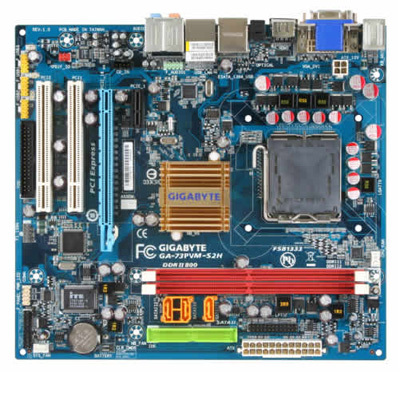

MODEL- GA-73PVM-S2H      VENDOR- GIGABYTE TECHNOLOGY

FEATURES- NVIDIA GeForce 7100/nForce 630i Chipset Motherboard
       GA-73PVM-S2H supports Intel latest high performance CPU delivers the
        most energy-efficient performance available today. Based on Intel's
        Micro Architecture, the Intel multi-core processors with 4 cores
        and two shared L2 caches provide the best capability-per-watt
        solutions and are an ideal choice for multi-media enthusiasts and
        intensive multi-tasking environments. This cutting-edge processor
        offers significant performance boosts and provides an overall more
        energy efficient platform.
* GeForce 7100 / nForce 630i Chipset
   The NVIDIA GeForce 7100 / nForce 630i MCP (Media and Communications
   Processor) features CineFX 3.0 Engine. This unique combination of MCP
   creates a single motherboard featuring a world-class DX9, Shader Model
   3.0 GPU for faster and smoother game-play, a high quality video
   processing engine for advance quality of video and DVD playback.
* Solid Capacitor for CPU VRM
   Stable system operation depends upon the quality of CPU VRM (voltage
   regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid
   Capacitors for CPU VRM to ensure a longer lifespan for systems in daily
   operation and boost system stability under extreme conditions. CPU VRM
   with Solid Capacitors featuring better electronic conductivity,
   excellent heat resistance enhances system durability even operating in
   high temperature environment.
* Windows Vista Premium Logo Certified
   Windows Vista Premium promises to deliver a streamlined computing
   experience designed to fundamentally change how users view, find and
   organize their digital information. With GIGABYTE New S series MCP73
   series solutions all enabling support for Vista Premium, GIGABYTE offers
   a fresh and unique desktop experience that will be more informative,
   intuitive and completely new.
* HDMI-The Next Generation Multimedia Interface
   HDMI is the latest High-Definition Multimedia Interface able to provide
   up to 5Gb/s video transmitting bandwidth and 8-channel high quality
   audio all through a single cable. Able to transmit superior,
   uncompressed digital video and audio, HDMI ensures the crispest
   rendering of digital content up to 1080p without the quality losses
   associated with analog interfaces and their digital-to-analog
   conversion. In addition, HDMI is compatible with HDCP (High-bandwidth
   Digital Content Protection), allowing the playback of Blu-ray/HD DVD and
   other protected media content.
* Smart
   The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE
   proprietary innovative software such as Download Center, @BIOS, Q-Flash,
   Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now
   becomes much easier and user friendly through GIGABYTE Smart features.
* Safe
   Safe is the key feature of GIGABYTE S-series motherboards with the
   following elements: Excellent hardware design reinforced BIOS protection
   through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting
   Recovery Technology. Unique system software such as Xpress Recovery 2,
   PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the
   stability and reliability of your PC!.
* Supports DDR2 800/667 up to 4GB Memory
   Available with 2 DIMM slots supporting up to 4GB of DDR2 800 memory.
* ALC889A Enables a Superior Audio Experience
   - Excellent Audio Performance
     High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-
     Noise ratio playback quality, designed especially for Windows Vista
     Premium PCs.
   - Blu-ray/HD DVD Full Rate Audio Support
     The ALC889A enables high quality Full Rate Lossless Audio for content
     protected media and support for both Blu-ray and HD DVD formats for an
     exhilarating home theater entertainment experience.
   - 7.1+2 Channel High Definition Output
     The ALC889A provides support for 7.1 sound playback, plus 2 channels
     of independent stereo output (multiple streaming) through the front
     panel stereo outputs.
* SATA 3Gb/s storage interface
   The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s.
   Native Command Queuing is a new specification that enables out-of-order
   execution of commands for efficient retrieval of data. Hot Plug support
   allows users to insert and remove hard disk drives without shutting off
   power to the system.
* IEEE1394 motherboard
   This motherboard with IEEE1394 FireWire interface from Texas Instruments
   (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394
   interface further enhances PC connectivity with consumer electronics
   audio/video (A/V) appliances, and storage peripherals.
* Gigabit LAN connectivity
   The Gigabit network interface delivers a high speed LAN connection with
   data transfer rate up to 1000Mb/s, providing new generation connectivity
   for the broadband era. Gigabit LAN is ideally for seamless internet
   connection such as streaming audio and video contents.
* RoHS compliant
   As a member of the global community to look after the environment,
   Gigabyte complies with the European Union's Restriction of use of
   certain Hazardous Substances (RoHS) directive which limits the use of
   lead, mercury, cadmium and other hazardous substances in electronic
   products.. From components and material selection to production
   processes, make up of accessories, packaging/color boxes etc; GIGABYTE
   has carefully examined and designed this product to be 100% RoHS
   compliant. GIGABYTE will continue to develop RoHS compliant PC
   components and commit valuable resources to promoting and advancing RoHS
   directive goals and objectives.

  -- SPECIFICATIONs ------------------------------------
PROCESSOR    - Support for an Intel Core 2 Extreme processor/Intel Core 2
                 Quad processor/Intel Core 2 Duo processor/Intel Pentium
                 processor Extreme Edition/Intel Pentium D processor/Intel
                 Pentium 4 processor Extreme Edition/Intel Pentium 4
                 processor/Intel Celeron processor in the LGA 775 package.
               1333/1066/800 MHz FSB
CHIPSET      - NVIDIA GeForce 7100/nForce 630i
MEMORY       - (2) 240-pin 1.8V DDR2 DIMM sockets support up to 4 GB of
                   system memory.
               Support for DDR2 800/667/533 MHz memory modules
EXPANSION    - (1) PCI Express x16 slot
               (1) PCI Express x1 slot
               (2) 32-bit PCI slots
AUDIO        - Realtek ALC889A codec with High Definition Audio supports
                 2/4/5.1/7.1-channels.
               Support for S/PDIF In/Out and CD In
VIDEO        - Integrated in the NVIDIA GeForce 7100/nForce 630i chipset
ETHERNET     - RTL 8211B chip (10/100/1000 Mbit)
STORAGE      - NVIDIA GeForce 7100/nForce 630i chipset:
                 (3) SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2)
                       supporting up to 3 SATA 3Gb/s devices.
                 (1) eSATA 3Gb/s port on the back panel supporting up to
                       1 SATA 3Gb/s device.
                 Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
                 (1) IDE connector supporting ATA-133/100/66/33 and up to
                       2 IDE devices.
               iTE IT8718 chip:
                 (1) floppy disk drive connector supporting up to 1 floppy
                       disk drive.
FIREWIRE     - T.I. TSB43AB23 chip supports up to 2 IEEE 1394a ports (1 on
                 the back panel, 1 via the IEEE 1394 bracket connected to
                 the internal IEEE 1394 header).
USB          - Integrated in the NVIDIA GeForce 7100/nForce 630i chipset
                 supports up to 10 USB 2.0/1.1 ports (4 on the back panel,
                 6 via the USB brackets connected to the internal USB
                 headers).
INTERNAL I/O - (1) 24-pin ATX power connector
               (1) 4-pin PCIe 12V power connector
               (1) Floppy connector
               (1) IDE connector
               (3) SATA 3Gb/s connectors
               (1) CPU fan header
               (1) System fan header
               (1) Front panel header
               (1) Front panel audio header
               (1) CD In connector
               (1) S/PDIF In/Out header
               (3) USB 2.0/1.1 headers
               (1) IEEE 1394a header
               (1) Parallel port header
               (1) Serial port header
               (1) Power LED header
               (1) Chassis intrusion header
BACK PANEL IO- (1) PS/2 keyboard port
               (1) PS/2 mouse port
               (1) 15-pin D-SUB port
               (1) DVI-D port
               (1) HDMI pot
               (1) Optical S/PDIF Out connector
               (1) eSATA 3Gb/s port
               (4) USB 2.0/1.1 ports
               (2) IEEE1394a ports
               (1) RJ-45 port
               (6) Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker
                     Out/Side Speaker Out/Line In/Line Out/Microphone).
HARDWARE MONITORING-
               System voltage detection
               CPU/System temperature detection
               CPU/System fan speed detection
               CPU overheating warning
               CPU/System fan failure warning
               CPU/System fan speed Control
BIOS         - 1 x 4 Mbit flash
               Use of licensed AWARD BIOS
               PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
MISCELLANEOUS- Supports @BIOS
               Supports Download Center
               Supports Q-Flash
               Supports EasyTune
               Supports Xpress Install
               Supports Xpress Recovery2
DIMENSIONS   - microATX form factor, 244mm x 220mm
www.giga-byte.com
