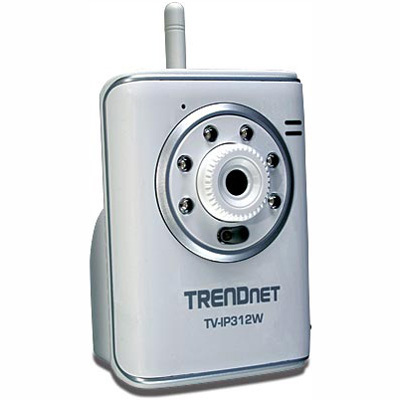

MODEL- TV-IP312W          VENDOR- TRENDnet

FEATURES- 2-Way Audio Wireless Day/Night Internet Camera Server
       The Wireless 2-Way Audio Day/Night Internet Camera transmits real-
        time high quality video and audio over the Internet.  See, hear and
        talk to people, in your camera's viewing area during the day or in
        the dark, from any Internet connection.  Complimentary SecurView
        camera management software allows you to monitor what you value
        most at home or at work.
       The camera provides crystal clear MPEG4 video streams over an
        internet connection.  The Infrared lens provides night monitoring
        for low light environment.  A built-in microphone and optional
        speakers accommodate 2-way audio communication. Advanced intuitive
        software includes motion detection recording, email alerts,
        scheduled recordings and progressive search options.  This cameras
        brilliant image quality, USB flash support, day and night
        capabilities and 2-way audio make it ideal for home, small office
        and business use.
    Includes TV-IP312 unit, Multi-language quick installation guide,
      Utility CD-ROM, Camera stand, 1.8m (5ft) Cat. 5 Fast Ethernet Cable,
      Power Adapter (5V DC 2.5A).
* Compatible with wireless g and b devices.
* Advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
* Built-in USB port allows you to store still image directly onto a USB
  flash or hard drive (USB port supports up to 500mA power device with
  FAT16/32 format).
* Infrared lens enables day and night version (night visibility up to
  5 meters).
* Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet
  protocols.
* High quality MPEG-4 and MJPEG video recording with up to 30 frames per
  second.
* Supports 3GPP live video viewing via 3G mobile phone (The 3G service from
  a mobile phone provider is required).
* Hear and talk to people in your camera's viewing area through your
  computer.
* Record streaming video to your computer and Network Storage
* Supports still image snapshot to FTP, Email and Flash drive
* Motion detection with Email notification
* Supports two adjustable motion detection windows with just-in-time
  snapshot.
* Supports time stamp overlay
* Quick Universal Plug and Play installation
* Free SecurView software: view and record up to 16 cameras
  simultaneously (Monitoring multiple cameras may require a high
  performance CPU).

  -- SPECIFICATIONs -----------------------------------
WIRELESS       - Standard         : IEEE 802.11b/g
                 Security         : 64/128-bit WEP, WPA-PSK, WPA2-PSK
                 Antenna          : 2dBi Detachable Reverse SMA Connector
IMAGE SENSOR   - Sensor           : 1/4" Color CMOS sensor
                 Resolution       : 640 x 480 pixel
                 Lens             : F: 4.6mm, F: 2.8 (IR Lens)
                 Viewing Angle    : 60 degrees
                 Min. Illumination: 0.5 lux @ f2.0
AUDIO          - Microphone Input : Internal Omni-Directional
                 Sensitivity      : -48dB + 3dB
                 Frequency
                          Response: 50 ~ 16,000Hz
                 Audio Output     : 3.5mm Speaker Output Jack
                 Format           : PCM/AMR (Mono)
VIDEO/IMAGE    - Video Format     : MPEG4 (Simple Profile), MJPEG, 3GPP
                 Image Frame Rate : 30fps @ VGA, QVGA, QQVGA
                 Frame Rate
                           Setting: 1 ~ 30 fps
                 Compression Ratio: 5 Levels
                 Resolution       : 640 x 480, 320 x 240, 160 x 120
                 Up/Down Reversal : Yes
                 Exposure Control/
                   White Balance/
                      Gain Control: Automatic
                Image Setting     : Adjustable  Brightness, Sharpness,
                                      Saturation.
                Flip Images       : Vertical/Horizontal
                Light Frequency   : 50Hz, 60Hz or Outdoor
COMMUNICATION - LAN               : 10/100Mbps Auto MDIX
                Protocol          : HTTP, FTP, TCP/IP, UDP, ICMP, DHCP,
                                      NTP, DNS, DDNS, SMTP, PPPoE, UPnP,
                                      RTP, RTSP, RTCP.
HARDWARE       - CPU              : ARM9 base
                 RAM              : 32Mbyte SDRAM
                 ROM              : 8Mbyte Nor Flash
                 OS               : Linux
                 USB Port         : USB 1.1
                                    Up to 500mA power device with FAT16/32
                                      format.
INDICATORS     - LEDs for Power, Link
REQUIREMENTS   - Pentium 4 1GHz or above
                 512MB RAM or more
                 1024 x 768 Resolution
                 Windows 2000/XP/Vista
POWER SOURCE   - 5V DC, 2.5A External Power Adapter; Consumption 8 watt
DIMENSIONS     - 2.67" x 3.94" x 2.95"        WT.- 9.7 oz.
 www.trendnet.com
