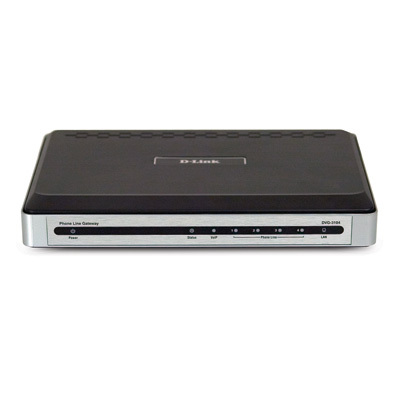

MODEL- DVG-3104MS       VENDOR- D-LINK

FEATURES- VoiceCenter 4-port PSTN Gateway for Microsoft Response Point
       D-Link VoiceCenter, a Microsoft Response Point phone system, is an
        IP-based phone system designed for small to medium-sized businesses
        (SMB) with support for up to 50 users. VoiceCenter provides
        numerous advantages over traditional PSTN (analog) phone systems
        while retaining the reliability of PSTN phone lines for accepting
        inbound and making outbound calls. Unlike previous generations of
        complicated, hard-to-use IP-based products, VoiceCenter is easy to
        install, manage, and maintain. Rather than taking days, it only
        takes a short amount of time to get the phone system up and
        running. VoiceCenter is also portable - businesses that need to
        relocate offices can easily take the phone system along.
       In addition, while D-Link provides solid phone system hardware, the
        integrated Microsoft Response Point phone system software provides
        state-of-the-art features such as Voice-activated Dialing and
        Voicemail Access, Automated Attendant for routing calls, and
        Automatic Phone and Gateway Discovery that allows for a simplified
        setup process.
    Includes DVG-3104MS 4-Port PSTN Gateway, CD with Product Documentation,
      Power Adapter, CAT5 Ethernet Cables, Phone Cable.
* Add More Phone Lines
   The DVG-3104MS 4-Port PSTN Gateway plays a vital role in the D-Link
   VoiceCenter phone solution because it is responsible for bridging and
   routing outside PSTN lines into the VoiceCenter internal IP-based phone
   system. The DVG-3104MS provides four PSTN (FXO) ports for connecting up
   to four phone lines and one 10/100 Ethernet port for connecting to a
   network. A total of up to 50 PSTN lines can be added to a VoiceCenter
   phone system. Both the DVX-2000MS-5 and DVX-2000MS-10 VoiceCenter
   bundles include one DVG-3104MS unit for connecting PSTN lines and more
   lines can be added to the system without purchasing additional licenses.
   Simply add more DVG-3401MS Gateways as needed to support additional
   phone lines.
* Easy To Use And Install
   Because the entire VoiceCenter phone system is designed with simplicity
   in mind, installing additional DVG-3104MS Gateways to an existing phone
   system is a breeze. Once a network and new phone lines are connected to
   the DVG-3104MS, you can use the Microsoft Response Point software to
   easily add and configure new phone lines to a VoiceCenter phone system.
   The way the DVG-3104MS handles inbound and outbound calls is transparent
   to VoiceCenter users. It is virtually the same as accepting or making
   calls from an analog telephone.
   The D-Link DVG-3104MS 4-Port PSTN Gateway enables integration of
   reliable PSTN phone lines to VoiceCenter, a Microsoft Response Point
   phone solution. With a solid, dependable hardware platform from D-Link
   and an easy to use, install, and manage phone system software from
   Microsoft, the VoiceCenter phone system is the clear choice for today's
   productivity and efficiency-minded small to medium-sized business.

  -- SPECIFICATIONs ----------------------------------
KEY FEATURES - Auto-discovery
               Auto-provisioning Ability
               Route PSTN Lines to an IP Network
NETWORK      - SIP (RFC 3261) Compliant
               10/100Base-TX Connection
               PSTN Port: Four Analog FXO Ports
               COM Port: RJ-45 Console Port
               QoS by ToS (Type of Service)
               SNTP (Simple Network Time Protocol)
TELEPHONE SUPPORT-
               Caller ID
               Line Hunting
               VAD (Voice Activity Detection)
               CNG (Comfort Noise Generator)
               Dynamic Jitter Buffer
               Completed Voice Band Signaling Support
               Bad Frame Interpolation
               Gain/Attenuation Settings
               G.168 Echo Cancellation
               Provide Inbound and Outbound DTMF Generation/Detection
                 between LAN and PSTN Interface.
DEVICE MANAGEMENT-
               Secure Web-GUI Configuration
               FTP Software Upgrade
               Remote Configuration
               RJ-45 Console
INDICATORS   - LEDs for Indicator for PSTN Port Status
                "    "  Power ON/OFF
                "    "  Link/ACT Status
                "    "  READY Work Status
                "    "  VoIP Status
ENVIRONMENTAL- Operating Temperature: 32 to 122 degrees F
               Storage Temperature  : -13 to 131 degrees F
               Humidity             : 5% ~ 95% (Non-condensing)
APPROVALS    - FCC B, FCC Part 68, UL
POWER        - 5V, 4A
DIMENSIONS   - 6.0"w x 1.5"h x 9.0"d           WT.- 1.1 lbs.
   www.dlink.com
