MODEL- DVX-2000MS-5     VENDOR- D-LINK

FEATURES- VoiceCenter IP Phone System, 5-Phone Kit
       D-Link VoiceCenter, a Microsoft Response Point phone system, is an
        IP-based phone system designed for small to medium-sized businesses
        (SMB) with support for up to 50 users. VoiceCenter provides
        numerous advantages over traditional PSTN (analog) phone systems
        while retaining the reliability of PSTN phone lines for accepting
        inbound and making outbound calls. Unlike previous generations of
        complicated, hard-to-use IP-based products, VoiceCenter is easy to
        install, manage, and maintain. Rather than taking days, it only
        takes a short amount of time to get the phone system up and
        running. VoiceCenter is also portable - businesses that need to
        relocate offices can easily take the phone system along.
       In addition, while D-Link provides solid phone system hardware, the
        integrated Microsoft Response Point phone system software provides
        state-of-the-art features such as Voice-activated Dialing and
        Voicemail Access, Automated Attendant for routing calls, and
        Automatic Phone and Gateway Discovery that allows for a simplified
        setup process.

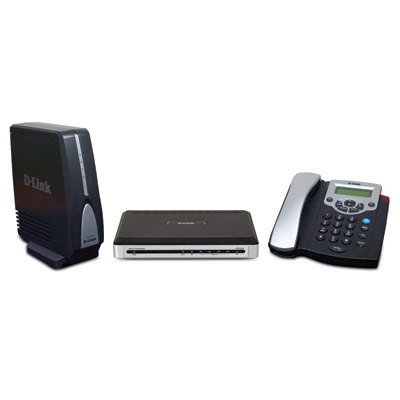

    Includes DVX-2000MS PBX/Base Unit, DVG-3104MS 4-Port PSTN Gateway,
      DPH-125MS IP Phones (5), CD with Software and Product Documentation,
      Power Adapters, CAT5 Ethernet Cables, Phone Cable.
* What is Included with DVX-2000MS-5 VoiceCenter IP Phone System?
   DVX-2000MS-5 VoiceCenter IP Phone System includes one DVX-2000MS
   PBX/Base Unit, one DVG-3104MS PSTN Gateway, five DPH-125MS IP Phones,
   and the Microsoft Response Point phone system software. There are no
   additional fees or licenses required to add more phones or Gateways to
   the system. Simply add more as needed - up to 50 phones and 50 PSTN
   lines.
* How Does It All Work Together?
   The DVX-2000MS PBX/Base Unit is the heart of VoiceCenter that runs the
   Microsoft Response Point phone system software. It is also responsible
   for routing all inbound/outbound calls as well as internal calls. Using
   the Microsoft Response Point phone system software on a networked PC,
   the DVX-2000MS can be configured and easily managed. In addition, the
   software facilitates hardware setup by providing Automatic Phone and
   Gateway Discovery feature that automatically detects when new IP phones
   or PSTN gateways are connected to a network.
   The DVG-3104MS PSTN Gateway enables SMBs to connect PSTN lines to a
   VoiceCenter IP-based phone system on a network. The Gateway provides
   four PSTN (FXO) ports for connecting up to four separate PSTN lines.
   More Gateways can be added to a network to accommodate additional PSTN
   lines.
   The DPH-125MS IP Phone includes many standard and advanced features not
   found in analog phone systems. With the built-in Microsoft Response
   Point (RP) button, users have one-touch access to Voice-activated
   commands. Voice-activated Dialing is one of the Voice-activated commands
   that enable users to reach anyone in the company directory or their
   Microsoft Outlook address book by simply saying their name. Users can
   also transfer, park, and retrieve calls the same way. Voicemail to e-
   mail forwarding is another convenient feature. Installing the DPH-125MS
   is a breeze since there is no need to run additional Ethernet cables to
   desktops. This phone provides two Ethernet ports for connecting to a
   network and PC. Setting up new phone extensions is just as easy and only
   takes a few simple steps to complete.
* Next-generation SMB Phone System
   By building a solid, dependable hardware platform to run a powerful yet
   easy to use, install, and manage phone software, D-Link and Microsoft
   have accomplished creating the next-generation SMB phone system. D-Link
   VoiceCenter, a Microsoft Response Point phone system, is the clear
   choice for today's productivity and efficiency-minded small to medium-
   sized business.

  -- DVX-2000MS SPECs ---------------------------------
PHONE SYSTEM - Phone Network Integration: PSTN Support via FXO ATA
               Automated Attendant
                   (DTMF & Speech-based): User Directory
                                          Frequently Asked Questions
                                          Nicknames
                                          Easy Access to Live Operator
                                          Customizable Prompts
               Call Forwarding To
                      External Phone
                        Numbers-specific: External Phone Numbers Treated as
                                            Internal Phones.
               Incoming Call Direct Access (Similar To DID)
               Call Forwarding to Internal Lines
               Personal External Line Impersonation (e.g. Employee's Cell
                 Phones).
               PA System Integration
VOICEMAIL    - Built-in Voicemail System
               Voicemail-to-E-mail Forwarding
               Voicemail Retrieval over the Phone
               Approximately 1,000 Minutes of Voicemail Storage
PC INTEGRATION-
               Contacts     : Microsoft Outlook Integration
                              Incoming Call Notification
                              Windows Contacts/Windows Address Book
                                Integration.
               Configuration: Easy Customization by the End-user
                              Call Forwarding Rules Management
               Employee Directory
ADMINISTRATION-
               Seamless Self-setup & Administration:
                              Auto-discovery of Phones and PSTN Gateways
                              Wizards for Phone and Service Configuration
                              Reserve Lines for Inbound Calls
               Ongoing Operations:
                              System Status Monitoring
                              Voice Mail Usage Summary
                              System Settings Backup & Restore
PHONE        - One-touch Voice Commands:
                              Voice Dial Other Employees
                              Voice Dial Personal Contacts
                              Park
                              Retrieve
                              Transfer
               Phone Auto Discovery
ENVIRONMENTAL- Operating Temperature: 32 to 122 degrees F
               Storage Temperature  : -13 to 131 degrees F
               Humidity             : 5% ~ 95% (Non-condensing)
APPROVALS    - FCC A
DIMENSIONS   - 3.54"w x 9.06"h x 8.07"d       WT.- 3.5 lbs.
  -- DVG-3104MS SPECs ---------------------------------
KEY FEATURES - Auto-discovery
               Auto-provisioning Ability
               Route PSTN Lines to an IP Network
NETWORK      - SIP (RFC 3261) Compliant
               10/100Base-TX Connection
               PSTN Port: Four Analog FXO Ports
               COM Port: RJ-45 Console Port
               QoS by ToS (Type of Service)
               SNTP (Simple Network Time Protocol)
TELEPHONE SUPPORT-
               Caller ID
               Line Hunting
               VAD (Voice Activity Detection)
               CNG (Comfort Noise Generator)
               Dynamic Jitter Buffer
               Completed Voice Band Signaling Support
               Bad Frame Interpolation
               Gain/Attenuation Settings
               G.168 Echo Cancellation
               Provide Inbound and Outbound DTMF Generation/Detection
                 between LAN and PSTN Interface.
DEVICE MANAGEMENT-
               Secure Web-GUI Configuration
               FTP Software Upgrade
               Remote Configuration
               RJ-45 Console
INDICATORS   - LEDs for Indicator for PSTN Port Status
                "    "  Power ON/OFF
                "    "  Link/ACT Status
                "    "  READY Work Status
                "    "  VoIP Status
ENVIRONMENTAL- Operating Temperature: 32 to 122 degrees F
               Storage Temperature  : -13 to 131 degrees F
               Humidity             : 5% ~ 95% (Non-condensing)
APPROVALS    - FCC B, FCC Part 68, UL
POWER        - 5V, 4A
DIMENSIONS   - 6.0"w x 1.5"h x 9.0"d           WT.- 1.1 lbs.
  -- DPH-125MS SPECs ----------------------------------
PROTOCOL     - IETF SIP (RFC3261)
NETWORK INTERFACE-
               RJ45 x 2, 10/100BaseT
LCD DISPLAY  - 2 x 16 Characters
KEYPAD       - 25 Keys (Including Microsoft Response Point (RP) Button for
                 One-touch Access to Voice-activated Commands).
CALL FEATURES- Call Hold, Call Mute, Call Retriever, Call Transfer
               Call Waiting
               Call Forward (Busy / No Answer / Unconditional)
               Caller ID Display
               Anonymous Call, Anonymous Call Blocking
               In-band DTMF / Out-of-band DTMF
               (RFC 2833) / SIP INFO
               Message Waiting Indicator
               3-way Conference
               Redial
CODEC        - G.711u-law
               G.711a-law
               G.729a/b
PHONE FUNCTIONS-
               Multi-user (4 SIP Accounts)
               Speakerphone Communication
               Pre-dial Before Sending
               Handset / Speakerphone Volume Adjustment
               Speed-dial (10 Records)
               Phonebook (200 Records)
               Call History (Incoming / Outgoing / Missed Calls)
SECURITY     - HTTP 1.1 Basic/Digest Authentication for Web Setup
               MD5 for SIP Authentication (RFC 2069/ RFC 2617)
DIAL METHODS - Direct IP Call without SIP Registration
               Dial Registered Number via SIP Server
               Dial URI from Phonebook / Speed-dial
VOICE QUALITY- VAD (Voice Activity Detection)
               CNG (Comfort Noise Generation)
               AEC (Acoustic Echo Cancellation)
               G.168
               Jitter Buffer
QoS          - ToS Field
               IEEE 802.1q VLAN
TONE         - DTMF
               Ring Tone, 4 Selectable and 4 Editable Tones
               Ring Back Tone (Local and Remote)
               Dial Tone
               Busy Tone
IP ASSIGNEMENT-
               Static IP
               DHCP
               PPPoE
NAT TRAVERSAL- UPnP
               STUN
TCP/IP       - IP/TCP/UDP/DHCP/RTP/RTCP
               ICMP/HTTP/NTP/TFTP/DNS
CONFIGURATION- Key & LCD Configuration
               Web Browser Configuration
               Auto/Manual Provisioning System
FIRMWARE UPGRADE-
               TFTP
               Auto Provisioning System
ENVIRONMENTAL- Operating Temperature: 32 to 104 degrees F
               Storage Temperature  : -4 to 140 degrees F
               Humidity             : 5% ~ 95% (Non-condensing)
APPROVALS    - FCC Class B, UL
POWER SOURCE - Input AC 100-120V / 220-240V
               Output DC 5V
DIMENSIONS   - 7.9"w x 3.2"h x 7.9"d          WT.- 1.61 lbs.
