MODEL- 8530-7202-9500     VENDOR- CRU

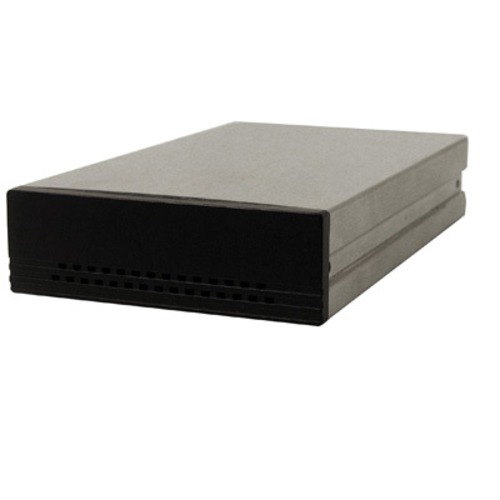

FEATURES- DataPort Dual Port 25 SAS Complete Assembly- Black finish
       DP25 Dual Port SAS Complete Assembly, RoHS, Silver Lock.
       The DataPort 25 Dual Port SAS is a high-performance small form
        factor enclosure designed to make any capacity 2.5" SAS or SATA HDD
        removable from a 3.5" peripheral bay. SAS provides the highest
        levels of performance and reliability. The DataPort 25 Dual Port
        SAS can support Dual Port SAS operation with a SAS drive. The
        DataPort 25 Dual Port SAS can also support a single SATA drive or
        when used with the DataPort 25 dual drive SATA carrier, two SATA
        drives.
    Includes DataPort 25 SAS frame assembly, DataPort 25 SAS carrier
      assembly, (4) M3 x 4mm Phillips pan-head screws for hard drive
      mounting, (4) M3 x 5mm Phillips pan-head screws for frame mounting
      with rails, (4) M3 x 4mm Phillips pan-head screws for frame mounting
      in case, (2) M3 x 4mm Phillips pan-head screws for carrier cover
      mounting, (2) Keys for lock.
* Removable HDD Carrier supports one 2.5" low-profile drive
* Can support two 2.5" SATA HDDs when used with DataPort 25 SATA carrier
  (8511-5009-9500).
* Supports full duplex 6Mb/s transfer rates when in DP25 SAS frame
* Front view LEDs indicate drive activity, power-on status and indicate
  configuration errors.
* Receiving frame mounts in any standard 3.5" bay
* Heavy-duty stainless steel and die cast metal construction
* Supports RAID applications (0, 1, 5 & JBOD)
* Standard 4-pin floppy power connector for ease of install
* Designed for maximum airflow and heat dissipation
* High durability Hirose connectors rated for over 25,000 insertions
* 12 Volt power required for SAS hard drives
* Dimensions: 102mm W x 26mm H x 155mm D
