MODEL- 5615-02-00AF       VENDOR- ZOOM TELEPHONICS

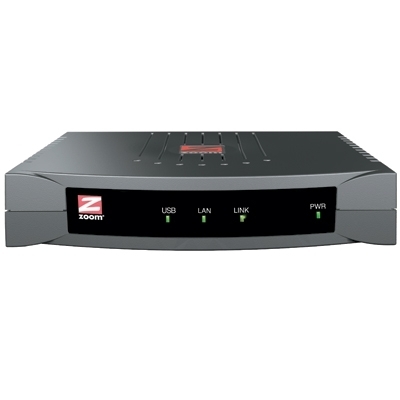

FEATURES- Zoom 5615 ADSL 2/2+ Bridge Modem
       The Zoom Bridge Modem is an ADSL 2/2+ modem with an Ethernet
        interface to a computer or a router. The Model 5615 provides a very
        stable system installation with a simplified set of configuration
        options to ensure problem free operation.
       The Bridge Modem works with any operating system which supports an
        Internet browser, including Windows, Macintosh OS and Linux. The
        Zoom Bridge Modem comes pre-configured to work with the most
        popular ADSL service configurations.
       The Model 5615 also supports the use of third party PPPoE client
        software to provide compatibility with the widest range of service
        providers.
       For most installations, the Model 5615 simply plugs into the ADSL-
        provisioned phone line and uses the factory settings. In the
        unusual event the factory default settings need to be changed, an
        easy-to-use graphic interface is accessed using any Web browser
        software.
    Includes Ethernet modem, Ethernet cable, Phone cable, CD-ROM disk,
      User manual, Power adapter, filters and phone adapters.
* The Bridge Modem works with any operating system that supports an
  Internet browser, including Windows, Macintosh and Linux and comes pre-
  configured to work with the most popular ADSL service configurations.
* The model 5615 also supports the use of third party PPPoE client software
  to provide compatibility with the widest range of service providers.
* The 5615 is compatible with older ADSL protocols as well as the new ADSL
  2/2+ standards for download speeds of up to 24 Mbps and extended
  distances at which high data rates can be delivered.
* For most installations, the 5615 simply plugs into the ADSL-provisioned
  phone line and uses the factory settings.  In the unusual event that the
  factory default settings need to be changed, an easy-to-use graphic
  interface is accessed using any Web browser software.

  -- SPECIFICATIONs ----------------------------------
ADSL COMPLIANCE-
               Compliant with ADSL standards:
                 - Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1)
                   standards.
                 - Splitterless G.lite (G.992.2) specification
               Compliant with ADSL 2 standards:
                 - G.dmt.bis (ITU G.992.3)
               Compliant with ADSL 2+ standards:
                 - G.992.5
                 - ADSL2 Annex L (Reach extended ADSL)
               DMT modulation and demodulation
               Full-rate adaptive modem
                 - Maximum downstream rate of 8 Mbps (ADSL), or 24 Mbps
                   (ADSL 2+).
                 - Maximum upstream rate of 896 Kbps (ADSL), or 1024 Kbps
                   (ADSL 2+).
               Supports splitterless ADSL implementation
               Interoperable with all major DSLAM manufacturers
ATM PROTOCOLS- WAN mode support: PPP over ATM (RFC 2364) and PPP over
                                   Ethernet (RFC 2516).
               LAN mode support: Bridged/Routed IP over ATM (RFC 1483) and
                                   Classical IP over ATM (RFC 1577).
               ATM Forum UNI 3.1/4.0 PVC
               Up to eight virtual circuits
               ATM segmentation and re-assembly
               ATM AAL5 (adaption layer type 5)
               OAM F4/F5
BRIDGE MODE  - Ethernet to ADSL self learning - Transparent Bridging (IEEE
                 802.1D).
               Supports up to 128 MAC learning addresses
ETHERNET INTERFACE-
               IEEE 802.3 compliant
               Auto-sensing 10/100 Mbps RJ-45 port
WEB-BASED    - HTTP Graphical User Interface
               Password protected system management
               Firmware upgrade
               WAN and LAN side connection statistics
REQUIREMENTS - Any computer with an operating system that supports TCP/IP
                 including Windows, Macintosh OS and Linux OR
               A router with built-in PPPoE support
APPROVALS    - CE, UL, C-UL, FCC Part 15B, FCC Part 68, CS-03
DIMENSIONS   - 5.7" x 4.4" x 1.1"
 www.zoom.com
