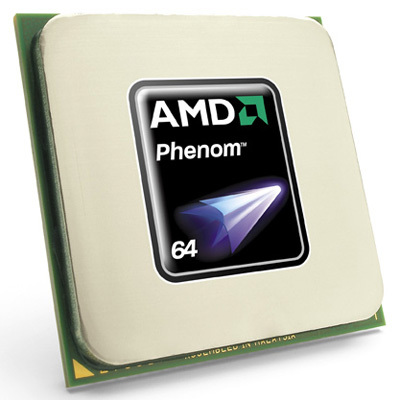

MODEL- HD9500WCGDBOX      VEND0R- A M D

FEATURES- AMD Phenom 9500 Quad-core Processor
       2.2 GHz, 2MB Total L2 Cache, 2MB L3 Cache, Socket AM2+, 95W Thermal
         Design Power, 65nm SOI CMOS technology, 3600MHz System Bus.
       Quad-core performance for life-like gaming, crystal-clear digital
        media, and serious megatasking.
       The ultimate megatasking experience. Featuring true multi-core
        design and award-winning AMD64 technology with Direct Connect
        Architecture, AMD Phenom 9000 Series processors deliver the
        ultimate megatasking experience by providing direct and rapid
        information flow between processor cores, main memory, and graphics
        and video accelerators. AMD Phenom 9000 Series processors have the
        technology to break through the most challenging processing loads.
       AMD Phenom 9000 Series processors feature low latency access to main
        memory for amazingly rapid response and phenomenal system
        performance. AMD Phenom 9000 Series processors were designed for
        megatasking--running multiple, multi-threaded applications. Surge
        through the most demanding processing loads, including advanced
        multitasking, critical business productivity, advanced visual
        design and modeling, serious gaming, and visually stunning digital
        media and entertainment.
       Phenomenal performance with advanced processor design. The AMD
        Phenom 9000 series processors are the most advanced processors for
        true multitasking with true quad-core design. Don't get bogged down
        by non-native quad-core processors and obsolete front side bus
        architectures. With an integrated memory controller and shared L3
        cache, AMD Phenom 9000 Series processors have low-latency access to
        main memory for amazingly rapid system response and phenomenal
        system performance.
       Blast through performance bottlenecks. All AMD Phenom 9000 series
        processors feature AMD64 with Direct Connect Architecture to blast
        through performance bottlenecks. Award winning HyperTransport 3.0
        technology just got faster, providing support for full 1080p high-
        definition video and extreme total system bandwidth.
       Shatter the memory barrier. Superior AMD64 architecture offers
        direct access to DDR2 memory. Enjoy virtually unlimited memory
        options with AMD64 technology and 64-bit Windows Vista. Shatter the
        memory barrier with AMD Phenom 9000 series processors and 64-bit
        Windows Vista.
* AMD64 with Direct Connect Architecture
   - Helps improve system performance and efficiency by directly connecting
     the memory controller and I/O to the CPU.
   - Designed to enable simultaneous 32- and 64-bit computing
   - Integrated DDR2 Memory Controller
   - BENEFITS:
      - Increases application performance by reducing memory latency
      - Scales memory bandwidth and performance to match compute needs
      - HyperTransport Technology provides up to 14.4GB/s peak bandwidth
        per processor--reducing I/O bottlenecks.
      - Up to 27.2GB/s total delivered processor-to-system bandwidth
        (HyperTransport bus + memory bus).
* AMD Balanced Smart Cache
   - Shared L3 cache
   - In addition to the 512K L2 cache per core, up to 2MB of L3 cache
     shared by up to 4 cores.
      - BENEFIT: Shortened access times to highly accessed data for better
        performance.
* AMD Wide Floating Point Accelerator
   - 128-bit floating point unit (FPU)
   - High performance (128bit internal data path) floating point unit per
     core.
      - BENEFIT: Larger data paths for quicker floating point calculations
        and better performance.
* HyperTransport technology
   - One 16-bit link up to 3600MT/s
   - Up to 8.0 GB/s HyperTransport I/O bandwidth; Up to 14.4GB/s in
     HyperTransport Generation 3.0 mode.
   - Up to 27.2GB/s total delivered processor-to-system bandwidth
     (HyperTransport bus + memory bus).
      - BENEFIT: Quick access times to system resources for better
        performance.
* Integrated DDR2 DRAM Controller with AMD Memory Optimizer Technology
   - A high-bandwidth, low-latency integrated DDR2 memory controller
   - Supports PC2-8500 (DDR2-1066*); PC2-6400 (DDR2-800), PC2-5300
     (DDR2-667), PC2-4200 (DDR2-533) or PC2-3200 (DDR2-400) SDRAM
     unbuffered DIMMs.
   - Support for 64-bit DDR2 SDRAM memory
   - Up to 12.8GB/s memory bandwidth
      - BENEFIT: Quick access to system memory for better performance.
* AMD Virtualization (AMD-V) With Rapid Virtualization Indexing
   - Silicon feature-set enhancements designed to improve the performance,
     reliability, and security of existing and future virtualization
     environments by allowing virtualized applications with direct and
     rapid access to their allocated memory.
      - BENEFIT: Helps virtualization software to run more securely and
        efficiently enabling a better experience when dealing with virtual
        systems.
* AMD Cool'n'Quiet 2.0 technology
   - Enhanced power management features which automatically and
     instantaneously adjusts performance states and features based on
     processor performance requirements.
   - For quieter operation and reduced power requirements
      - BENEFIT: Enables platform designs providing less heat and noise
        efficient performance and energy usage.
* AMD CoolCore Technology
   - Reduces processor energy consumption by turning off unused parts of
     the processor. For example, the memory controller can turn off the
     write logic when reading from memory, helping reduce system power.
   - Works automatically without the need for drivers or BIOS enablement.
   - Power can be switched on or off within a single clock cycle, saving
     energy without comprimised performance.
      - BENEFIT: Helps users get more efficient performance by dynamically
        activating or turning off parts of the processor.
* Dual Dynamic Power Management
   - Enables more granular power management capabilities to reduce
     processor energy consumption.
   - Separate power planes for cores and memory controller, for optimum
     power consumption and performance, creating more opportunities for
     power savings within the cores and memory controller.
      - BENEFIT: Helps improve platform efficiency by providing on demand
        memory performance while still allowing for decreased system power
        consumption.

  -- SPECIFICATIONs -----------------------------------
L1 Cache (Instruction + Data) per core: 128KB (64KB + 64KB)
L2 Cache (512KB per core)             : 2MB
L3 Cache                              : 2MB
HyperTransport Technology             : HyperTransport technology up to
                                          3600MT/s full duplex, or up to
                                          14.4GB/s I/O Bandwidth.
Integrated DDR2 Memory Controller     : yes
Memory Controller Width               : 128-bit
Type of Memory Supported              : PC2-8500 (DDR2-1066)
                                        PC2 6400 (DDR2-800)
                                        PC2 5300 (DDR2-667)
                                        PC2 4200 (DDR2-533)
                                        PC2 3200 (DDR2-400)
                                         unbuffered memory
Memory Bandwidth                      : up to 12.8 GB/s dual channel
Total Processor-to-system Bandwidth   : up to 27.2 GB/s
                                     (HyperTransport plus memory bandwidth)
Process Technology                    : 65 nanometer, SOI (silicon-on-
                                          insulator) Technology.
Packaging                             : socket AM2+ (940-pin) organic micro
                                          PGA.
Thermal Design Power                  : 95W
Die Size                              : 65nm: 285mm
Number of Transistors                 : 65nm: 450 million
