MODEL- SILENTSQUAREEVO    VENDOR- ASUS

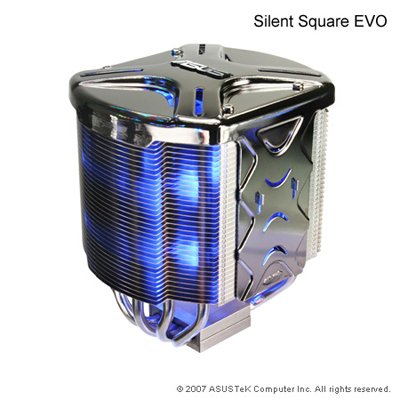

FEATURES- Silent Square EVO CPU Cooler
       Extremely quiet at a mere 22dBA.
       Waved fins enable maximum heat dissipation that lower CPU temp by
        20-30%.
       Universal clip design for easier installations.
* Multiple Application with PWN Function
   Silent Square EVO supports the Intel Core 2 Extreme/Core 2 Quad Quad-
   core CPU (LGA 775) and AMD Athlon 64 FX/X2 Dual-Core processors
   (939/940/AM2). PWM function automatically modulates 9cm fan speed
   according to CPU temperature and delivers a quiet cooling at a mere
   22dBA.
* Inner Fan
   The fan positioned inside the frame for maximum airflow and VRM shield
   guides cool air to critical components around the CPU for stable
   operation.
* Fast Heat Transfer
   The "wave-shaped" double side fin design on both sides of the cooler for
   larger heat exchange area, and combined of the copper base and five
   copper heat pipes can efficiently transfer the heat to the fins,
   maintaining the temperature for high-performance computing and stable
   operation.

  -- SPECIFICATIONs -----------------------------------
CPU SUPPORT  - Intel Core 2 Extreme/Core 2 Quad (Quad-Core)
               Intel Core 2 Duo/Pentium Dual Core/Pentium D (Dual-Core)
               Intel Core 2 Duo/Pentium Dual Core (Dual-Core)
               Intel Pentium 4 HT/Celeron D
               AMD Athlon 64 FX
               AMD Athlon 64 X2
               AMD Athlon 64
               AMD Sempron
CPU SOCKET   - Intel LGA 775
               AMD 754/939/940
               AMD AM2
HEATSINK     - Cu. Base + Al. fins + 5 Heat Pipes
FAN          - Dimension (mm): 92 x 92 x 25
               Bearing Type  : Vapo
               Connector     : 4-Pin with PWM Control
               Speed         : 2300 rpm +/- 10%
               Max. Airflow  : 36.5 CFM
               Air Pressure  : 2.8 mm-H2O max.
DIMENSIONS   - 120 (L) x 105 (W) x 146 (H) mm     WT.- 745 grams
