MODEL- 2600PRO256PE       VENDOR- DIAMOND MULTIMEDIA

FEATURES- Viper ATI Radeon HD 2600 256MB GDDR2 PCIe Video Card- Retail
       The ATI Radeon HD 2600 delivers powerful graphics performance to
        enhance the stunning Windows Aero user interface. ATI Catalyst
        graphics management software is Certified for Windows Vista and is
        designed for quick and easy setup of graphics, video, and multiple
        displays. The ATI Radeon HD 2600 features advanced hardware HD
        video processing and HDMI with built-in 5.1 surround sound for
        stunning big-screen entertainment. Home theater aficionados will be
        mesmerized by ATI Avivo HD technology that delivers sharp images
        and vibrant color fidelity from 1080p playback of Blu-ray and HD
        DVDs movies.

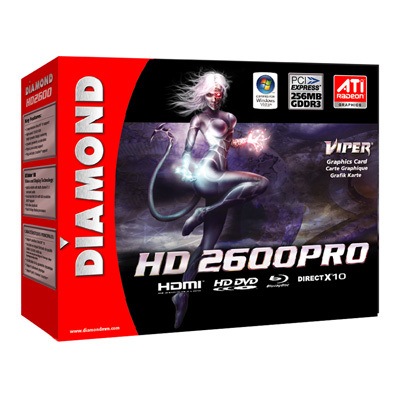

    Includes Diamond Viper Radeon HD 2600PRO graphics card, Quick Start
      Guide, Installation CD, TVO Cable, DVI to VGA adapter, Component HDTV
      Adapter.
* Native PCI Express x16 bus interface
* 128-bit GDDR2 memory interface
* High-speed 128-bit-HDR (High Dynamic Range) rendering
* Up to 24X Custom Filter Anti-Aliasing
* Support for Microsoft DirectX 10 & Shader Model 4.0, OpenGL 2.0
* ATI Avivo HD Video and Display architecture
* HDCP Support
* CATALYST Software Drivers
* Windows Vista 3D environment Support
* Optimized for Windows Vista with comprehensive DirectX 10 and DirectX 9
  support.
    - ATI Avivo HD Video and Display Technology
    - Built-in HDMI with Multi-channel 5.1 surround audio
    - Dual dual-link DVI with full resolution HDCP support
    - HD video playback
    - Dual 30-bpp display processors
    - CATALYST Software Drivers
    - Windows Vista 3D environment Support
    - RoHS compliant

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- PCI Express, native x16 lane
MEMORY       - 256MB (16Mx16) GDDR2
               128-bit Memory Interface
               800 MHz Memory Speed
               16.0 GB/s. Peak Memory Bandwidth
CHIPSET      - ATI RADEON HD 2600PRO
               600 MHz Core Speed
               14.4 Gpixels/sec. Peak Pixel Fill Rate
CONNECTORs   - (1) 7-pin S-Video/Composite port
               (2) Dual Link DVI + HDTV-out with VIVO
                   (HDMI support through dongle)
O/S SUPPORT  - Windows XP/XP x64 Edition/Media Center Edition 2005/Vista
REQUIREMENTS - AMD Athlon or Intel Pentium 4
               512MB of system memory; 1GB or more for best performance.
               Optical drive for installation software (CD-ROM or DVD-ROM
                 drive).
               A 750 Watt or better power supply with two 2x3-pin PCIe
                 power connectors. For optimal performance, we recommend
                 requires one 2x3-pin and one 2x4-pin PCIe power connector.
  www.diamondmm.com
