Product Description
|

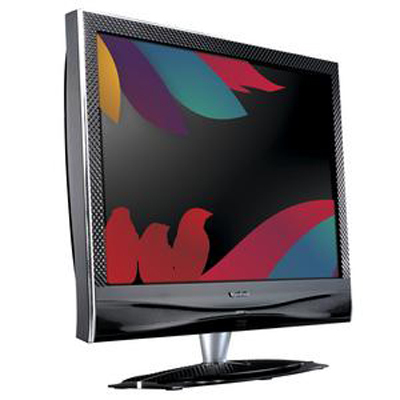

ViewSonic DiamaniDuo NX2232w - 22" LCD TV
|
|
Product Type
|
LCD TV
|
|
Diagonal Size
|
22" - widescreen
|
|
Dimensions (WxDxH)
|
20.3 in x 2.9 in x 15.1 in - without stand
|
|
Weight
|
13.2 lbs
|
|
Color
|
Black, silver
|
|
Digital Television Certification
|
HDTV
|
|
Resolution
|
1680 x 1050
|
|
Display Format
|
720p
|
|
Input Video Formats
|
480p, 720p, 1080i, 480i, 576i, 576p
|
|
Video Interface
|
Component, composite, HDMI, S-Video
|
|
PC Interface
|
VGA (HD-15)
|
|
HDCP Compatible
|
Yes
|
|
Technology
|
TFT active matrix
|
|
Progressive Scan
|
Yes
|
|
Image Aspect Ratio
|
16:9
|
|
TV Tuner
|
1x analog/digital combo
|
|
Digital TV Tuner
|
ATSC, QAM
|
|
Analog TV Tuner
|
NTSC
|
|
Additional Features
|
On-screen menu, anti-reflection coating, anti-glare
coating
|
|
Sound Output Mode
|
Stereo
|
|
Speaker System
|
2 speakers
|
|
Remote Control
|
Remote control - infrared
|
|
Power
|
AC 120/230 V ( 50/60 Hz )
|
|
Manufacturer Warranty
|
1 year warranty
|
|
General
|
|
Product Type
|
22" LCD TV
|
|
Digital Television Certification
|
HDTV
|
|
TV Tuner
|
1x analog/digital combo
|
|
Video Interface
|
Component, composite, HDMI, S-Video
|
|
PC Interface
|
VGA (HD-15)
|
|
HDCP Compatible
|
Yes
|
|
Dimensions
|
Without stand
|
|
Width
|
20.3 in
|
|
Depth
|
2.9 in
|
|
Height
|
15.1 in
|
|
Weight
|
13.2 lbs
|
|
Enclosure Color
|
Black, silver
|
|
Display
|
|
Diagonal Size
|
22" - widescreen
|
|
Technology
|
TFT active matrix
|
|
Resolution
|
1680 x 1050
|
|
Display Format
|
720p
|
|
Image Aspect Ratio
|
16:9
|
|
Color Depth
|
24-bit (16.7 million colors)
|
|
Image Contrast Ratio
|
1000:1
|
|
Dynamic Contrast Ratio
|
2400:1
|
|
Brightness
|
300 cd/m2
|
|
Progressive Scan
|
Progressive scanning (line doubling)
|
|
Viewing Angle
|
160 degrees
|
|
Viewing Angle (Vertical)
|
160 degrees
|
|
Pixel Response Time
|
5 ms
|
|
V-Sync Rate at Max Res.
|
60 Hz
|
|
Max V-Sync Rate
|
75 Hz
|
|
Max H-Sync Rate
|
64 kHz
|
|
Backlight Life
|
50,000 hour(s)
|
|
Additional Features
|
On-screen menu, anti-reflection coating, anti-glare
coating
|
|
TV Tuner
|
|
Analog TV Tuner
|
NTSC
|
|
Digital TV Tuner
|
|
Digital TV Tuner
|
ATSC, QAM
|
|
Video Features
|
|
16:9 Mode
|
Yes
|
|
HDTV Ready
|
Yes
|
|
Analog Video Input Signals
|
NTSC, PAL, SECAM
|
|
Input Video Formats
|
480p, 720p, 1080i, 480i, 576i, 576p
|
|
Remote Control
|
|
Type
|
Remote control - infrared
|
|
Audio System
|
|
Sound Output Mode
|
Stereo
|
|
Speakers Included
|
2 speakers
|
|
Output Power / Total
|
5 Watt
|
|
Speaker(s)
|
2 x right/left channel speaker - built-in - 2.5 Watt
|
|
Connections
|
|
Connector Type
|
2 x HDMI ( 19 pin HDMI Type A )
1 x VGA input ( 15 pin HD D-Sub (HD-15) )
Composite video input ( RCA phono )
1 x component video input ( RCA phono x 3 )
1 x S-Video input ( 4 pin mini-DIN )
1 x audio line-in ( mini-phone stereo 3.5 mm )
1 x audio line-in ( RCA phono x 2 )
1 x audio line-out ( mini-phone stereo 3.5 mm )
|
|
Stands & Mounts
|
|
Stand Included
|
Yes
|
|
Stand Design
|
Tabletop
|
|
Flat Panel Mount Interface
|
100 x 100 mm
|
|
Miscellaneous
|
|
Compliant Standards
|
CE, GOST, SASO, CB, RoHS
|
|
Power
|
|
Power Device
|
Power supply - internal
|
|
Voltage Required
|
AC 120/230 V ( 50/60 Hz )
|
|
Power Consumption Operational
|
48 Watt
|
|
Manufacturer Warranty
|
|
Service & Support
|
1 year warranty
|
|
Service & Support Details
|
Limited warranty - parts and labor - 1 year
|
|
Dimensions & Weight Details
|
|
Dimensions & Weight Details
|
Panel with stand - 20.3 in x 6.1 in x 17.1 in x 14.3 lbs
|
|
Dimensions & Weight (Shipping)
|
|
Weight (Shipping)
|
18.5 lbs
|
