MODEL- CL1000M            VENDOR- ATEN CORP

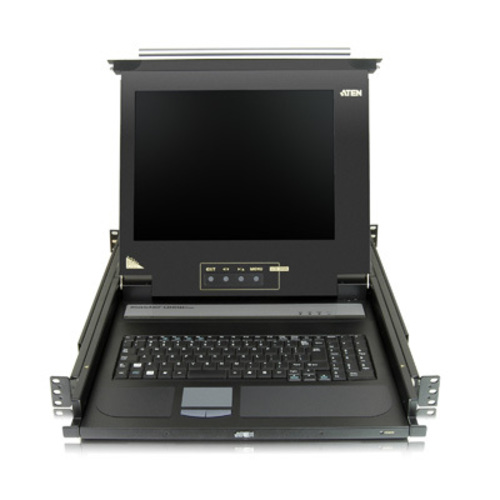

FEATURES- 17" Single-Rail LCD Integrated Console
       ATEN's economy LCD KVM console, CL1000M, offers a space-saving,
        streamlined approach to IT environments by integrating a keyboard,
        17" LCD monitor, and touchpad in a 1U Slideaway housing. The LCD
        display is built into the cover; the keyboard and touchpad are
        built into the base. Setup is fast and easy. There is no software
        to configure, no installation routines, and no incompatibility
        problems. Slide the console module section out; flip the cover up;
        and you are ready to go to work. When finished, flip the cover down
        and slide the console module away back into the rack.
       There is no better way to save time and money than with a CL1000M
        installation. By using the CL1000M to manage your installation,
        you: (1) save all the space those standard components, keyboard,
        mouse, and monitor, would take up; (2) eliminate the expense of
        having to purchase a separate keyboard, monitor, and mouse for each
        computer if attaching to a KVM switch; (3) take advantage of
        upgrading your current system, since CL1000M is compatible with all
        types of KVM switches; (4) save time for installation. Just connect
        the cable between CL1000M and a KVM or a computer, and the CL 1000M
        is ready to serve you.
    Includes CL-1000 Slideaway Console Module with Standard Rack Mounting
      Kit, Custom KVM Cable (6 ft. PS2), Power Cord, User Manual and
      Quick Start Guide.
* Integrated KVM console featuring a 17" LCD monitor in 1U heigh.
* Dual Consoles Design - remote access ready
* Compatible with all ATEN KVM Switches and most of KVM switch in the
  market.
* Built in internal power 1280 x 1024 resolution assures crisp video
  display.
* Less than 1 U high mountable rack
* Adjustable depth to fit within the different racks

  -- SPECIFICATIONs ---------------------------------
CONNECTORS   - Power   : (1) 3 prong AC Socket
               Computer: (1) SPHD-15 Female (Yellow) (for keyboard, Mouse
                            and monitor).
EMULATION    - Mouse   : PS/2
               Keyboard: PS/2
HOUSING      - Metal case
POWER SOURCE - 120V AC, 60Hz; Consumption 24W
DIMENSIONS   - 18.9"w x 1.8"h x 23.6"d           WT.- 30 lbs.
www.aten-usa.com
