MODEL- 8230-10020-71      VENDOR- PINNACLE SYSTEMS

FEATURES- PCTV HD Ultimate Stick
       Enjoy live HD or SD TV on your PC anytime and anywhere!
       Watch and record SD and HDTV on any PC using the Pinnacle PCTV HD
        Ultimate Stick, featuring a unique PVR application that runs from
        the stick's on-board flash memory. Plug it into any PC and start
        watching and recording in seconds -- no software installation
        required.
       This includes pausing and automatically recording all of your
        favorite shows in the familiar and friendly MCE environment. All of
        this, and there is absolutely no new software to learn. The PCTV HD
        Ultimate Stick is a must have for anyone that wants to get a taste
        of HD quality content for a fraction of the price of an HD TV set.
        It is also an attractive solution for the majority of Windows
        Vista/XP MCE owners who did not purchase a TV tuner with their
        systems.
       Pinnacle PCTV HD Ultimate Stick is an ultra-compact USB 2.0 powered
        TV tuner in an attractive stick form factor that brings the
        brilliant sharpness of HDTV via ATSC to your PC. ATSC, the new
        digital TV standard, comes over-the-air and for free in high or
        standard definition, and there are absolutely no required
        subscription fees. In addition to ATSC, standard analog TV (NTSC)
        can be received via cable or antenna. The included Pinnacle
        TVCenter Pro software lets you not only watch TV, but also record
        it. You can even pause, rewind or fast forward your favorite TV
        shows. Good looks, great features and minimum size, will make the
        PCTV HD Ultimate Stick a must have wherever you are. The sleek
        USB 2.0 device is so compact that you can really take it wherever
        you go with your laptop and always have high quality HD TV with
        you.
       Pinnacle PCTV HD Ultimate Stick provides everything you need to turn
        your PC into a digital TV with fully functional DVR. You can
        actually view and record true over-the-air HD content for free. All
        of this power is available in an elegantly designed form factor
        with a size similar to a standard USB flash memory stick. The fun
        does not end here, as the PCTV HD Ultimate Stick also supports
        analog TV. The PCTV HD Ultimate Stick includes a USB 2.0 powered TV
        tuner and a mini antenna.
       If you have a Windows Media Center equipped laptop or PC (Windows
        Vista Home Premium/Ultimate or Windows XP MCE), don't worry, the
        Pinnacle PCTV HD Ultimate Stick is fully compatible with Windows
        Media Center. This qualified combination provides everything from
        watching live TV to all of the great features of a fully functional
        digital video recorder (DVR) with free integrated Electronic
        Program Guide (EPG).

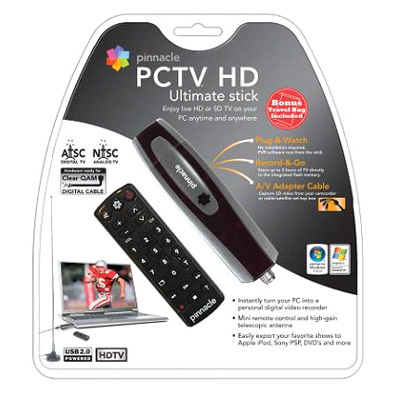

   Includes USB 2.0 TV tuner for ATSC/NTSC reception with 1GB flash memory
     and preinstalled Pinnacle TVCenter Pro software; Mini remote control
     including batteries; Portable telescopic high-gain antenna; A/V
     adapter cable; USB extender cable; Printed QuickStart guide; CD-ROM
     with Pinnacle TVCenter Pro recovery software; CD-ROM with Pinnacle
     Studio QuickStart software.
* Ultra-portable USB 2.0 TV tuner
* Watch SD and free HD TV on your PC - no service fees
* Mini antenna included (for digital TV reception in good signal areas;
  rooftop aerial is recommended for optimum reception).
* Hardware ready for ClearQAM (unencrypted digital cable) reception.
* Supports both analog (NTSC) and digital (ATSC) TV signals
* On-stick personal video recorder
   - Full PVR application preinstalled on the stick's on-board memory.
   - Record up to 2 hours of TV directly to the stick to play it back on
     any PC.
   - Capture SD video from camcorder or set-top box using included adapter
     cable.
   - Turns your PC into a PVR with TimeShifting: pause, rewind TV
   - Electronic Programming Guide
   - Automatically record shows to the integrated flash memory or to your
     hard drive in the destination file format of choice (i.e. iPod, PSP,
     DivX, etc.), or even direct-to-DVD.
   - Trim you videos with Pinnacle Studio QuickStart
   - On-board memory can also be used to store additional files
   - TV tuner fully compatible with Windows Media Center (Windows Vista
     and XP MCE; remote kit sold separately).

  -- SPECIFICATIONs -----------------------------------
TV STANDARDS - ATSC (HDTV up to 1080i, SDTV)
               NTSC (cable, over the air)
CONNECTORS   - TV antenna input (F-connector/Coaxial)
               S-Video, Composite Video (RCA), Stereo Audio (1/8")
RECORD FORMAT- MPEG-1/2
               MPEG-4 (compatible with PSP or iPod)
               DivX
REQUIREMENTS - Windows XP with SP2 or Windows Vista (32 bit)
               Intel Pentium 4 2.4 GHz, Pentium M 1.3 GHz or AMD Athlon 64
                 processor (for HDTV reception, a Pentium 4 2.8GHz or
                 Pentium M 1.7 GHz or equivalent AMD Athlon 64 processor is
                 recommended).
               RAM: Windows XP--256MB RAM (512MB recommended) for Windows
                  Vista--512 MB (1GB recommended).
               Free USB 2.0 port
               Sound/graphics controller with support for DirectX 9
               Hard drive with minimum 1 GB free space (20 GB recommended
                 for TV recording).
               CD or DVD drive
www.pinnaclesys.com
