MODEL- BX80562Q6600       VENDOR- INTEL CORP.

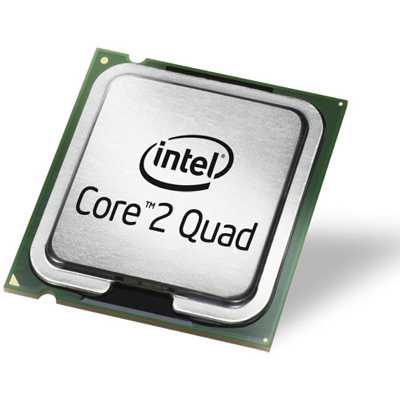

FEATURES- Core 2 Quad Processor Q6600- Retail boxed
       Boxed product with fan and heat sink.
       2.40 GHz Clock Speed, 8MB L2 Cache, 1066 MHz Front Side Bus, 65nm,
        LGA 775 package, 4 Cores, Intel EM64T, Enhanced Intel Speedstep
        Technology, Intel Virtualization Technology.
       The Intel Core 2 Quad processor is the latest in cutting edge
        processor technology for the desktop PC. Based on the Intel Core
        microarchitecture, the Intel Core 2 Quad processor delivers four
        complete execution cores within a single processor, delivering
        unprecedented performance and responsiveness in multi-threaded and
        multi-tasking business and home use environments.
       The unprecedented performance of the Intel Core 2 Quad processor is
        made possible by each of the four complete execution cores
        delivering the full power of Intel Core microarchitecture. More
        instructions can be carried out per clock cycle, shorter and wider
        pipelines execute commands more quickly, and improved bus lanes
        move data throughout the system faster. This quad-core processor
        represents Intel's continued leadership and drive of multi-core
        processing and more parallel computing.
       The Intel Core 2 Quad processor is at the center of today's most
        interactive and content rich software experiences. The evolving set
        of threaded multi-media applications, including digital content
        creation, will shine as users are able to complete tasks faster.
        Game play can achieve even greater visualization and realism as
        tasks such as artificial intelligence (AI), physics, and rendering
        can be distributed across each of the four complete execution cores
        and run in parallel.
* Quad-Core Processor
   Provides four complete execution cores in a single Processor with 8 MB
   of L2 cache and a 1066 MHz Front Side Bus. Four dedicated, physical
   threads help operating systems and applications deliver additional
   performance, so end users can experience better multi-tasking and multi-
   threaded performance across many types of applications and work load.
* Intel Wide Dynamic
   Improves execution speed and efficiency, delivering more instructions
   per clock cycle. Each of the four Execution cores can complete up to
   four full instructions simultaneously.
* Intel Smart Memory Access
   Optimizes the use of the data bandwidth from the memory subsystem to
   accelerate out-of-order execution. A newly designed prediction mechanism
   reduces the time in-flight instructions have to wait for data. New pre-
   fetch algorithms move data from system memory into fast L2 cache in
   advance of execution. These functions keep the pipeline full, improving
   instruction throughput and performance.
* Intel Advanced Smart Cache
   The shared L2 cache is dynamically allocated to each processor core
   based on workload. This efficient, dual-core optimized implementation
   increase the probability that each core can access data from fast L2
   cache, significantly reducing latency to frequently used data and
   improving performance.
* Intel Advanced Digital Media Boost
   Accelerates the execution of Streaming SMD Extension (SSE) instructions
   to significantly improve the performance on a broad range of
   applications, including video, audio, image and photo processing,
   multimedia, encryption, financial, engineering and scientific
   applications. The 128-bit SSE instructions are now issued at a
   throughput rate of one per clock cycle effectively doubling their speed
   of execution on a per clock basis over previous generation processors.
* Intel Virtualization Technology (Intel VT)
   Intel VT allows one hardware platform to function as multiple "virtual"
   platforms. For businesses, Intel VT offers improved manageability,
   limiting downtime and maintaining worker productivity by isolating
   computing activities into separate partitions.
* Intel Extended Memory 64 Technology (Intel EM64T)
   An enhancement to Intel's 32-bit architecture to enable the processor to
   access larger amounts of memory. With appropriate 64-bit supporting
   hardware and software, platforms based on an Intel processor supporting
   Intel EM64T can allow the use of extended virtual and physical memory.
* Execute Disable Bit
   Provides enhanced virus protection when deployed with a supported
   operating system. The Execute Disable Bit allows memory to be marked as
   executable or non-executable, allowing the processor to raise an error
   to the operating system if malicious code attempts to run in non-
   executable memory, thereby preventing the code from infecting the
   system.
* Digital Thermal Sensor (DTS)
   Provides for more efficient processor and platform thermal control
   improving system acoustics. The DTS continuously measures the
   temperature at each processing core. The ability to continuously measure
   and detect variations in processor temperature enables system fans to
   spin only as fast as needed to cool the system. The combination of these
   technologies can result in significantly lower noise emissions from the
   PC.
* Intel designed Thermal Solution for boxed processors
   Includes a 4-pin connector for fan speed control to help minimize the
   acoustic noise levels generated from running the fan at higher speeds
   for thermal performance. Fan speed control technology is based on actual
   CPU temperature and power usage.

  -- SPECIFICATIONs -----------------------------------
sSPEC NUMBER         - SL9UM
CPU SPEED            - 2.40 GHz
PCG                  - 05B
BUS SPEED            - 1066 MHz
BUS/CORE RATIO       - 9.0
L2 CACHE SIZE        - 8 MB
L2 CACHE SPEED       - 2.40 GHz
PACKAGE TYPE         - LGA 775
MANUFACTURING TECH.  - 65 nm
CORE STEPPING        - B3
CPUID STRING         - 06F7h
THERMAL DESIGN POWER - 105W
THERMAL SPECIFICATION- 62.2 degrees C
CORE VOLTAGE         - 1.100V-1.372V
