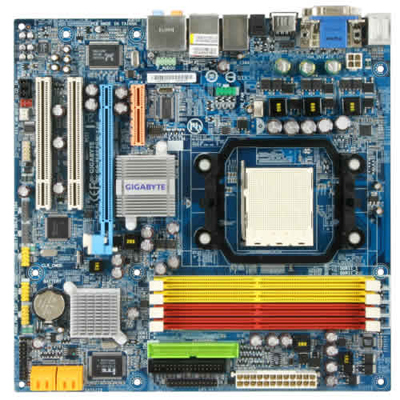

MODEL- GA-MA69GM-S2H      VENDOR- GIGABYTE TECHNOLOGY

FEATURES- mATX ATI chipset Motherboard
       GIGABYTE Technology latest "S" series motherboards for AMD socket
        AM2 platform, featuring with innovative features- Safe, Smart
        Technologies. The new S series motherboards GA-MA69GM-S2H;
        supporting AMD new generation AM2 processor with dual channel DDR2
        800MHz high frequency memories, providing reliable and user
        friendly computing and reaching the maximum system performance
        easily via personalized software settings. GIGABYTE S series
        motherboards, the champion's choice for AMD Socket AM2 platform!
          - Supports AMD Athlon 64/Sempron Socket AM2 platform
          - Dual-Channel DDR2 800 for outstanding system performance
          - Integrated ATI Radeon X1250-based graphics
          - Ultimate graphics performance with PCI-E x16 interface
          - Integrated SATA 3Gb/s with RAID function
          - Features high speed Gigabit Ethernet and IEEE 1394
          - Integrated ALC889A 8-Channel High Definition audio with 106 dB
            Signal to Noise ratio, fully support Blu-ray/HD DVD playback.
          - Integrated DVI/HDMI interface with HDCP
          - TV out cable with S-video/YPbPr interface
          - Supports Windows Vista Premium
* Smart
   The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE
   proprietary innovative software such as Download Center, @BIOS, Q-Flash,
   Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now
   becomes much easier and user friendly through GIGABYTE Smart features!
    - Download Center
      Smart driver selection and download from Gigabyte's website.
    - Xpress Install
      Complete drivers installation on one simple click.
    - Smart LAN
      BIOS built-in diagnostic program to examine LAN cable connection
      status.
    - @BIOS/Q-Flash
      Smart and automatic BIOS update via internet/BIOS built-in flash
      utility.
    - Boot Menu
      Select boot device without entering bios setup.
    - Smart Fan
      Make your system cooler and quieter.
* Safe
   Safe is the key feature of GIGABYTE S-series motherboards with the
   following elements: Excellent hardware design, reinforced BIOS
   protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE
   BIOS Setting Recovery Technology. Unique system software such as Xpress
   Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further
   strengthen the stability and reliability of your PC!
    - Virtual Dual BIOS
      BIOS crash free protection with physical BIOS and Xpress BIOS Rescue.
    - BIOS Settings Recovery
      Recoverable Safe and frequently used CMOS settings.
    - HDD S.M.A.R.T.
      Hard drive "Self Monitoring Analysis and Reporting Technology"
      support.
    - C.O.M. (Corporate Online Manager)
      System administration utility for local area network.
    - Xpress Recovery 2
      Quick system image backup and restore.
    - PC Health Monitor
      System health monitor via bios and EasyTune utility.
* Windows Vista Premium Logo Certified
   Windows Vista Premium promises to deliver a streamlined computing
   experience designed to fundamentally change how users view, find and
   organize their digital information. With GIGABYTE 'S' series socket
   AM2 solutions all enabling support for Vista Premium, GIGABYTE offers a
   fresh and unique desktop experience that will be more informative,
   intuitive and completely new.
* AMD Validated Solution (AVS) qualified
   AMD Validated Solutions (AVS) takes the guesswork out of building and
   selling high-quality, reliable commercial solutions based on AMD64
   technology. GIGABYTE has teamed with AMD to offer best-of-breed
   commercial platforms with high quality, high efficiency, and services
   support to meet the AVS commercial stable infrastructure.
* AMD Athlon 64 FX/64 X2/64 Processor
   The leading-edge performance and unparallel technology of AMD Athlon 64
   socket AM2 series processor has built its strength on the well-known
   AMD64 framework which consisted of 64-bit computing platform,
   HyperTransport Technology, and integrated memory controller. The latest
   Athlon 64 socket AM2 processor brings the power and multitasking
   performance on the desktop platform and ensures superior performance on
   mission critical business applications.
* AMD 690G Chipset
   The brand new AMD 690G chipset features ATI Radeon X1250-based graphics
   architecture. This unique combination of Integrated Graphics Processor
   (IGP) creates a single motherboard featuring a world-class DX9, Pixel
   Shader V2.0, ATI Avivo Technology, ATI SurroundView Technology for
   faster and smoother game-play, a high quality video processing engine
   for advance quality of video and DVD playback.
* PCI Express Interface
   Revolutionary PCI Express interface provides scalable bandwidth for
   multi-purpose usage. PCI-E x16 interface doubles the bandwidth of
   graphics interface of previous generation thus delivering the utmost
   gaming experience. PCI-E x1interface provides twice the bandwidth of PCI
   interface up to 250MB/s for new generation I/O peripheral devices.
* HDMI Interface
   HDMI is latest High-Definition Multimedia Interface, which is able to
   provide up to 5Gb/s video transmitting bandwidth and also 8-channel high
   quality audio. Via transmitting uncompressed digital data, HDMI is able
   to reduce signal interference as transferring between digital and analog
   signal, seen and heard, direct from the source. In addition, HDMI is
   compatible with HDCP (High-bandwidth Digital Content Protection), which
   allowing playback of Blu-ray/HD DVD and other protected contents.
* ALC889A with DTS Connect Enables a Superior Audio Experience
   - Excellent Audio Performance
     High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-
     Noise ratio playback quality, designed especially for Windows Vista
     Premium PCs.
   - Blu-ray/HD DVD Full Rate Audio Support
     The ALC889A enables high quality Full Rate Lossless Audio for content
     protected media and support for both Blu-ray and HD DVD formats for an
     exhilarating home theater entertainment experience.
   - 7.1+2 Channel High Definition Output
     The ALC889A provides support for 7.1 sound playback, plus 2 channels
     of independent stereo output (multiple streaming) through the front
     panel stereo outputs.
* Gigabit LAN connectivity
   The Gigabit network interface delivers a high speed LAN connection with
   data transfer rate up to 1000Mb/s, providing new generation connectivity
   for the broadband era. Gigabit LAN is ideally for seamless internet
   connection such as streaming audio and video contents.
* SATA 3Gb/s & RAID
   This platform supports reliable storage solution for enhanced data
   protection and data accessing performance. Serial ATA 3Gb/s is firstly
   introduced in this platform to provide blazingly 3Gb/s bus bandwidth
   thus higher disk performance. The NVIDIA RAID allows multi-disk designs
   to be set up as RAID 0, 1, 0+1, 5 based on users' priority of
   protection/performance. This NVIDIA RAID function makes the RAID even
   more accessible by introducing the innovative windows-based facility.
* IEEE1394 motherboard
   This motherboard with IEEE1394 FireWire interface from Texas Instruments
   (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394
   interface further enhances PC connectivity with consumer electronics
   audio/video (A/V) appliances, and storage peripherals.

  -- SPECIFICATIONs ----------------------------------
PROCESSOR    - AMD Socket AM2 Athlon 64 FX/Athlon 64 X2 Dual-Core/
                 Athlon 64/Sempron processors.
CHIPSET      - North Bridge: AMD 690G
               South Bridge: ATI SB600
               Super I/O chip: ITE IT8716
               Integrated Peripherals: Realtek RTL8110 Gigabit Ethernet
                                       Realtek ALC889A Audio Codec
MAIN MEMORY  - (4) 240-pin DDR2 DIMM memory slots (supports up to 16GB
                   memory) via dual channel DDR2 800/667/533/400 DIMMs.
                   Supports 1.8V DDR2 DIMMs
               NOTE: Due to the limitation of Windows 32-bit operating
                     system, when more than 4GB of physical memory is
                     installed, the actual memory available for the
                     operating system will be less than 4GB; Windows 64-bit
                     operating system doesn't have such limitation.
EXPANSION    - (2) 32-bit PCI slots
               (1) PCI-Express x16 slot
               (1) PCI-Express x4 slot
AUDIO        - Integrated Realtek ALC889A Audio Codec
VIDEO        - Integrated ATI Radeon X1250-based graphics
ETHERNET     - Integrated Realtek RTL8110 Gigabit Ethernet
FIREWIRE     - Integrated IEEE-1394a/FireWire
STORAGE      - (2) UDMA ATA 133/100/66 Bus Master IDE connectors
               (4) Serial ATA 3.0Gb/s connectors with RAID function
INTERNAL I/O - (1) 24-pin ATX power connector
               (1) 4-pin ATX 12V power connector
               (1) Floppy connector
               (1) IDE connector
               (4) SATA 3Gb/s connectors
               (1) CPU fan connector
               (1) System fan connector
               (1) Front panel connector
               (1) Front audio connector
               (1) CD In connector
               (1) SPDIF In/Out header
               (1) TV Out header
               (2) IEEE 1394a headers
               (3) USB 2.0/1.1 header for additional 6 USB 2.0/1.1 ports
                   by cables.
               (1) Parallel port header
               (1) Serial port header
               (1) Power LED header
               (1) Chassis Intrusion header
REAR PANEL I/O-
               (2) PS/2 ports for Keyboard/Mouse
               (1) 15-pin VGA port
               (1) DVI-D port (does NOT support VGA port by adaptor)
               (1) HDMI port
               (1) Optical SPDIF Out port
               (1) IEEE-1394a/FireWire port
               (4) USB 2.0/1.1 ports
               (1) RJ45 port
               (6) Audio ports (Line In/Line Out/MIC In/Surround Speaker
                   Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side
                   Speaker Out).
HARDWARE MONITORING-
               System voltage detection
               CPU/System temperature detection
               CPU/System fan speed detection
               CPU/System warning temperature
               CPU fan failure warning
               Supports CPU/System Smart Fan function (Note 3)
                  (Note 3) Whether the CPU Smart FAN Control function is
                           supported will depend on the CPU you install.
BIOS         - 4Mbit flash ROM
               Use of licensed AWARD BIOS
               PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
MISCELLANEOUS- Supports @BIOS
               Supports Download Center
               Supports Q-Flash
               Supports EasyTune (only supports Hardware Monitor function)
               Supports Xpress Install
               Supports Xpress Recovery2
               Supports Xpress BIOS Rescue
POWER        - ATX power connector and ATX 12V connector
DIMENSIONS   - microATX (24.4cm x 24.4cm)
