MODEL- 100-435068         VENDOR- A T I

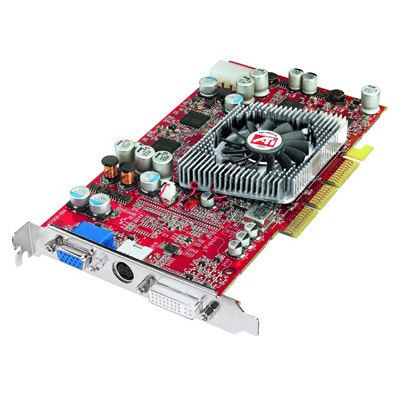

FEATURES- Radeon 9800 PRO Mac Edition (RoHS compliant)
       The cinematic revolution continues with the Radeon 9800 Mac Edition,
        the fastest and most visually advanced 3D performer on the planet.
        A supercharged, 256-bit DDR memory interface and 8 thrilling pixel
        pipelines generate the power to deliver real-time, Hollywood
        calibre graphics for the most demanding next-generation games.

* Cinematic Rendering
   Backed by highly programmable shader engines and supporting the latest
   OpenGL feature sets, the Radeon 9800 PRO Mac Edition is designed to
   bring the most detailed worlds to life with motion picture quality
   lighting, textures and effects.
* Maximum 3D
   Savor a 3D experience with the sharpest, clearest picture quality
   imaginable, thanks to SmoothVision 2.1 and its latest anti-aliasing and
   texture filtering technologies. Add eight parallel rendering pipelines,
   a 256-bit wide memory interface and support for the AGP 4X standard, and
   you have the blazing fast performance to deliver interactive frame rates
   at the highest resolutions and detail settings.
* Redefining Realism
   128-bit floating-point color precision and powerful programmable shaders
   of the SmartShader 2.1 technology, enable hyper-realistic imagery to be
   displayed with billions of color variations.
   VideoShader integrates programmability to provide unprecedented support
   for digital and high definition video.
* Generation Now Technology
   Radeon 9800 PRO Mac Edition is ATI's most advanced Visual Processing
   Unit (GPU) and is optimized to run the most demanding 3D next-generation
   games and applications.
   VERSAVISION allows you to view your desktop the way you want, providing
   hardware accelerated display rotation and scaling.
* Eight parallel rendering pipelines process over 3 billion pixels per
  second.
* Four parallel geometry engines process up to 380 million transformed and
  lit polygons per second.
* High precision 32-bit per channel rendering
* SmartShader 2.1 technology
   - Advanced programmable vertex and pixel shaders in hardware
   - 2.0 Vertex Shaders support vertex programs up to 65,280 instructions
     with flow control.
   - 2.0 Pixel Shaders support up to 16 textures per rendering pass
   - 128-bit, 64-bit & 32-bit per pixel floating point color formats
   - Shadow volume rendering acceleration
   - High dimension floating point textures
* SmoothVision 2.1
   - State-of-the-art full-scene anti-aliasing
   - New technology processes over 18 billion anti-aliasing samples per
     second for unprecedented performance.
   - Supports up to 6x mode with programmable sample patterns
   - Advanced anisotropic filtering
   - Supports up to 16 trilinear filtered texture samples per pixel
   - Efficient adaptive algorithm enables this feature with minimal
     performance degradation.
* HyperZ III+
   - Hierarchical Z-Buffer and Early Z Test reduce overdraw by detecting
     and discarding hidden pixels.
   - Lossless Z-Buffer Compression and Fast Z-Buffer Clear reduce memory
     bandwidth consumption by over 50%.
   - Z Cache optimized for real-time shadow rendering
* DVD AND QUICKTIME ACCELERATION:
   - Top quality DVD and all-format DTV/ HDTV decode with low CPU overhead
   - Seamless integration of programmable pixel shaders with video data
* ADVANCED DUAL DISPLAY SUPPORT
   - Drive two displays simultaneously with independent resolutions and
     refresh rates.
   - VERSAVISION provides hardware accelerated display rotation and scaling

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit AGP 4x/2x
MEMORY       - 128 MB DDR memory
CHIPSET      - Radeon 9800 PRO Graphics Processing Unit (GPU)
CONNECTORs   - (1) DVI-I port (DVI to VGA adapter included)
               (1) 15-pin VGA port
               (1) S-Video port (S-Video to Composite adapter included)
DISPLAY SUPPORT-
               Dual Integrated 10-bit per channel 400MHz DACs
               Integrated 165MHz TMDS transmitter (DVI compliant)
               Integrated TV-Out support up to 1024x768 resolution
DISPLAY MODES-  640 x  480 @ 200 Hz      1600 x 1024 @ 150 Hz
                720 x  480 @ 200 Hz      1600 x 1200 @ 120 Hz
                800 x  600 @ 200 Hz      1792 x 1344 @  75 Hz
                832 x  624 @  75 Hz      1856 x 1392 @  75 Hz
               1024 x  768 @ 200 Hz      1920 x 1080 @ 120 Hz
               1152 x  864 @ 200 Hz      1920 x 1200 @ 100 Hz
               1152 x  870 @  75 Hz      1920 x 1440 @  90 Hz
               1280 x  960 @ 200 Hz      2048 x 1152 @ 100 Hz
               1280 x 1024 @ 150 Hz      2048 x 1280 @ 100 Hz
               1600 x  900 @ 150 Hz      2048 x 1536 @  85 Hz
REQUIREMENTS - Mac OS X 10.2.5 or later
               AGP 4x or 2x capable Macintosh
               128MB of system memory
               Installation software requires CD-ROM drive
               DVD playback requires DVD drive
               Power connection to the computer
               Radeon 9800 PRO Mac Edition requires connection to your
                 computer's internal power supply for operation. ATI
                 recommends a 300-Watt power supply or greater to ensure
                 normal system operation where a number of other internal
                 devices are installed.
www.ati.com
