MODEL- WL-330GE           VENDOR- ASUS

FEATURES- World's Smartest Wireless Access Point
       Innovative Integration of Access Point, Ethernet Adapter, Gateway
        and Universal Repeater.
       Isn't it so frustrating to find out that the last Internet
        connection or LAN point has been taken when you just have to access
        the Internet?

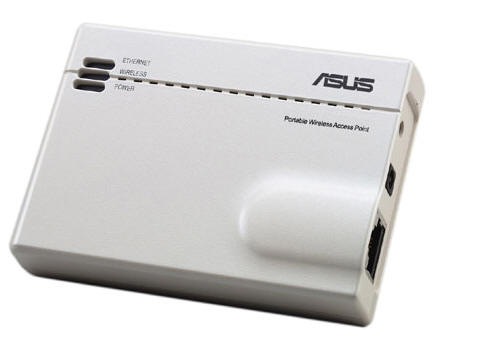

       Well, fret no more, as ASUS has released the WL-330gE Wireless
        Access Point. This nifty little gadget is able to combine 4
        wireless functions, namely Access Point, Ethernet Adapter, Gateway
        and Universal Repeater, into 1 - providing you with connectivity
        wherever you are.




* Compact Pocket-size for Portability
   The ASUS WL-330gE is compact and portable - weighing in at only 2.2 oz
   and being only 85 mm(L) x 60 mm(W) x 17 mm(H) in size. This petite size
   makes it easy to carry and implement under any situation and truly makes
   the ASUS WL-330gE shine. With such portability, it is able to provide
   wireless access to the Internet easily and without hassle.
* Numerous Functions
   To utilize the WL-330gE under AP or Gateway mode, users just have to
   simply connect it to the Ethernet port on the modem or a LAN connection,
   and it is ready to go. This is crucial when a meeting room has only one
   Ethernet connection and there is a need for multiple connections to the
   Internet. What's more, the WL-330gE can provide superior flexibility
   when building a wireless network by supporting NAT and DHCP servers to
   enable Internet sharing. This is especially useful when you are in an
   outside hotspot. With the WL-330gE's "hotspot mode" under the Gateway
   mode, not only can your laptop access the Internet, your (or your
   friend's) other WiFi devices like PDAs, PSPs or WiFi phones can access
   it as well with no extra cost.
   Additionally, in Ethernet adapter mode, the WL-330gE can convert
   Ethernet-capable devices (desktop, network printer, game console, set
   top box) into wireless ones. It can even become a universal repeater to
   extend the wireless signal coverage.
* Easy and User-Friendly Setup
   With an easy-to-use setup user interface, you will just require a few
   clicks to finish setting up for easy wireless Internet access. You only
   need to find the WL-330gE using "Device Discovery", then click on
   "Configure" and choose the mode you require, and the WL-330gE is ready
   to go. Featuring a driver-free Plug'n'Play function, Just plug your
   configured WL-330gE to your modem/router or the Ethernet-capable device,
   then your WL-330gE is ready to go! Wireless Internet access has never
   been easier.

  -- SPECIFICATIONs -----------------------------------
ETHERNET PORT- (1) RJ45 for 10/100 BaseT
                   Supports Ethernet and 802.3 with max. bit rate
                     10/100Mbps and auto cross-over function (MDI-X).
WIRELESS PORT- Transmit Power: 11b 19+-1.5 dBm, 11g 17+-1.5 dBm at nominal
                 temperature.
               Receiver Sensitivity: -95 +-1dBm @  1Mbps
                                     -85 +-1dBm @ 11Mbps
                                     -73 +-1dBm @ 54Mbps
               Antenna Gain in 1.25dBi
               2 x internal IFA antenna
               Range: Indoor 130 feet (40m)
                      Semi-open 330 feet (100m)
                      Outdoor (LOS, Line-Of-Sight) 1500 feet (457m) Range
                        and throughput may vary by different environment.
BUTTONS      - Reset Button: Push for 5 seconds to restore factory setting
WIRELESS     - 802.11g/802.11b Compliant
               Operation Channels: Ch 1~11 for N. America
                                   Ch 1~14 Japan
                                   Ch 1~13 Europe (ETSI)
               Wi-Fi Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK,
                                 WPA-Enterprise, WPA2-Enterprise, Radius
                                 with 802.1x.
               WMM: WMM (Wi-Fi Multimedia) support
               MAC Access Control
               RADIUS Setting: Required in Radius with 802.1x, WPA, WPA2
                 mode.
               SSID Isolation: Support SSID hiding.
               Wireless Separation: Prevent wireless clients from
                 communicating with each other.
               Guest Account: Provide a second SSID for wireless access in
                 Gateway mode.
               Infrastructure Mode: AP Only
                                    WDS
                                    Hybrid
                                    Client
                                    URE
                                    AfterBurner
                                    BroadRange
NETWORK ARCHITECTURE TYPES-
               Port Trigger: Open certain TCP or UDP ports to communicate
                 with the computers connected to WL330gE.
               Virtual Server: Provide services, like WWW, FTP by a server
                 in local network accessible for outside users.
               Virtual DMZ: Expose one computer to Internet, so that all
                 the inbounds packets will be redirected to the exposed
                 computer.
               ALG: FTP, SIP, VPN Passthrough-IPSec(1), PPTP/L2TP(4)
FIREWALL     - NAT and SPI (Stateful Packet Inspection) Firewall
               Filtering: Single Port and Port Range & URL based
ROUTING      - Static Route
MANAGEMENT   - Internet connection type: Automatic IP, Static IP, PPPoE
                 (MPPE supported), PPTP, Bigpond Service.
               Support UPnP IGD
               DHCP Server:
                  - supports up to 253 IP addresses
                  - changeable DHCP lease time, IP pool, domain name
               DNS Proxy
               NTP Client
               DDNS: DynDNS, ZoneEdit, TZO
               Web-based administration: Managed from LAN and Internet
                                         Password Setting
               System Event Log
               Firmware Upgrade: Web Interface, Bootloader
               Save/Restore Configuration File
UTILITIES    - Device Discovery, support XP, 2000, Vista
               Firmware Restoration, support XP, 2000, Vista
STANDARDS    - IEEE802.11g, IEEE802.11b, IEEE802.11d, IEEE802.3,
                 IEEE802.3u, IEEE802.1X, WPA, WMM, IPv4, IPv6.
CERTIFICATION- Compliant Wi-Fi, WPA, WMM, UPnP IGD
POWER SOURCE - AC input: 100V~240V(50~60HZ)
               DC output: 5V with max. 1A current
DIMENSIONS   - 62mm W x17mm H x 86mm D        WT.- 2.187 oz.
usa.asus.com
