MODEL- HAUP-1128          VENDOR- HAUPPAUGE COMPUTER WORKS

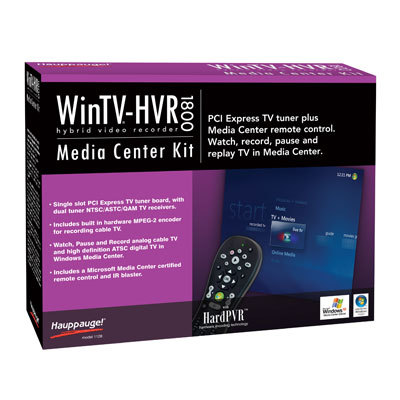

FEATURES- WinTV-HVR-1800 MC-Kit
       WinTV-HVR-1800 MC-Kit, with WinTV-HVR-1800 model 1129 board,
        NSTC/ATSC/QAM support, FM radio and MCE remote. English manual
        only.
       Dual tuner PCI Express NTSC/ATSC/QAM TV receiver board for Windows
        Vista.  Watch and record analog cable TV plus hi-definition ATSC or
        clear QAM digital TV on your PC!
       WinTV-HVR-1800 is a PCI Express X1 board. It contains two tuners: a
        digital TV tuner to receive ATSC and QAM channels plus a 125-
        channel cable ready TV tuner. For ATSC and QAM digital TV, all 18
        ATSC formats including 1080i can be watched or recorded to disk as
        a MPEG-2 Program Stream. A highly integrated MPEG-1/2 hardware
        encoder based on the Conexant -418 is on-board for recording analog
        cable TV to disk. The playback of the recorded ATSC and QAM digital
        TV and MPEG-2 encoded analog programs are done through a software
        MPEG-2 player.
       Watch and record ATSC high definition digital TV or analog cable TV
        on your PC, in a window or full screen! ATSC HD is the over-the-air
        high definition TV standard for North America.
       Watch and record 'clear QAM' digital TV channels. Clear QAM are
        digital ATSC channels which are re-broadcast on digital cable TV.
       Two tuners on board: a 125 channel cable ready TV tuner and an ATSC
        digital TV tuner. Connect both cable TV and ATSC digital TV to the
        WinTV-HVR-1800 at the same time.
       Includes Hauppauge's WinTV2000 application. Our WinTV2000
        application allows you to toggle between cable TV, QAM and ATSC
        digital TV channels.
       WinTV-HVR-1800 PCI bus card with 125 channel cable-ready TV tuner,
        ATSC/QAM receiver, hardware MPEG-2 encoder, dbx-TV stereo decoder,
        S-Video/composite and stereo audio inputs.
* Digital ATSC HD TV features
   - ATSC over-the-air digital TV receiver built-in. Supports all ATSC
     formats, up to the high definition 1080i format!
   - Supports Dolby Digital AC3 audio
   - Record ATSC digital TV to your PC's hard disk using high quality
     MPEG-2. TV recordings will typically consume 5 Gb of disk space per
     hour for ATSC high definition.
* Digital QAM TV receiver features
   - If you are using digital cable which broadcast the local ATSC channels
     on their cable TV network, you can receive these QAM channels with the
     new WinTV v6 application.
     Note: not all cable TV networks send clear QAM channels
* Analog TV features
   - Built-in high quality hardware MPEG-2 encoder, so your PC continues to
     run at full speed while watching, pausing and recording analog cable
     TV.
   - 125 channel cable ready TV receiver built-in. With dbx-TV stereo
     decoder, for great TV sound.
   - Composite/S-Video and audio inputs, for cable or satellite set top
     boxes or VCRs.
* WinTV-HVR-1800 brings over-the-air high definition ATSC digital TV and
  analog cable TV to your PC. Watch and record TV in a window or full
  screen using high quality MPEG-2.
* ATSC digital TV is the over-the-air digital TV for North America. ATSC
  digital TV typically requires an antenna for reception, and is currently
  broadcast in 200 cities, with over 1500 TV stations. Note: ATSC digital
  TV is NOT digital cable TV or digital satellite TV. The WinTV-HVR-1800
  cannot receive digital satellite TV directly. To receive digital
  satellite, you will need a satellite receiver set top box.
* ATSC digital TV brings you sharper pictures and enriches your PC's
  multimedia experience with Dolby Digital AC3 sound. WinTV-HVR-1800 s ATSC
  digital TV receiver adds great features to your TV viewing: high
  definition TV reception, automatic identification of channel names plus
  records high-definition digital TV programs to your PC's hard disk in an
  MPEG-2 format with no loss in quality.
* Two tuners to simplify connections The WinTV-HVR-1800 has two tuners: one
  for analog cable TV and one for ATSC/QAM digital TV. You can connect both
  cable TV and an ATSC digital TV antenna at the same time. And our new
  WinTV v6 application allows you to toggle between cable TV and ATSC or
  QAM digital TV channels.
* Create your own personal Digital Video Recorder! Record cable TV shows to
  your PC's hard disk with our built-in high quality MPEG-2 hardware
  encoder. You can also record high definition digital ATSC and QAM to disk
  in the original digital quality. Use the WinTV-Scheduler to schedule the
  recordings of your favorite analog or ATSC digital TV programs. Play the
  recordings back to your PC screen at any time.
* Are you using Windows Vista Media Center? If so, you can add
  WinTV-HVR-1800 as either the primary or as the second TV tuner. The
  Microsoft Media Center application supports up to two TV tuners, so you
  can watch one TV channel while recording another! And WinTV-HVR-1800 has
  Windows Vista Premium certification.
* To check the ATSC digital transmissions in your area, input your Zip code
  at: ww2.titantv.com
  When you see the TV guide information for your area, click the HD only
  button.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- PCI-express x1
CONNECTORS   - (1) FM Radio connector
               (1) NTSC Cable TV connector
               (1) ATSC antenna or QAM cable TV connector
               (1) S-Video/Composite Video port
               (1) Left Audio Input
               (1) Right Audio Input
REQUIREMENTS - 2.2 GHz P4 or equivalent (minimum) required for displaying
                 ATSC high definition TV on your PC screen.
               Microsoft Windows XP Home, Pro or Media Center Edition. Also
                 Windows Vista Premium certified.
               Available PCIe X1 or X8 slot
               Graphics with 64 MB memory (or greater)
               Sound card
               DVD or CD writer for burning Video CD's, S-VCD's or DVD's
                 (optional).
  www.hauppauge.com
