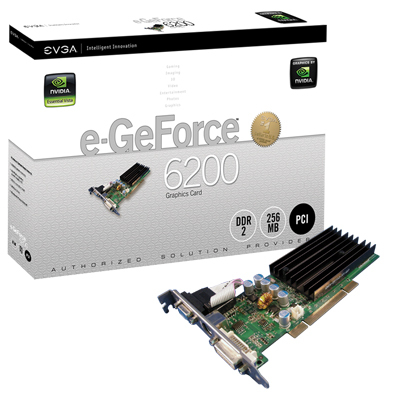

MODEL- 256-P1-N399-LX     VENDOR- eVGA

FEATURES- e-GeForce 6200 256MB PCI (low-profile)
       Built for todays hottest games such as Doom3, the GeForce 6200
        features groundbreaking technology innovations such as the
        industrys first superscalar GPU architecture, a 128-bit DDR memory
        interface and support for Microsoft DirectX 9.0 Shader Model 3.0,
        arming you with everything you need so you can play the games the
        way it is meant to be played.
       NVIDIA ForceWare multimedia software suite contains advanced NVIDIA
        nView multi-display software features for unlimited flexibility in
        multiple-monitor setups. NVIDIA nView provides a quick and easy way
        for you to manage multiple Windows desktops, thereby increasing
        your efficiency and enabling you to see what you have been missing.
    Includes GeForce 6200 AGP 8X Graphics Card, Quick Installation Guide,
      CD-ROM disc, DVI-to-VGA adapter, S-video cable, and Y-Power Cable.
* Superscalar GPU architecture
   Delivers up to 8X the shading power of previous generation products for
   outstanding gaming performance.
* 64-bit Floating Point Texture Filtering and Blending
   NVIDIAs 64-bit texture implementation sets new standards for image
   clarity and quality through floating point capabilities in filtering,
   texturing and high dynamic range (HDR) lighting.
* NVIDIA UltraShadow II Technology
   Enhances the performance of bleeding-edge games that feature complex
   scenes with multiple light sources and objects. Second-generation
   technology delivers more than 4x the shadow processing power over the
   previous generation.
* NVIDIA Intellisample 3.0 Technology
   Delivers ultra-realistic visuals with no jagged edges at lightning-fast
   speeds. Visual quality is taken to new heights through a new rotated
   grid sampling pattern.
* NVIDIA Digital Vibrance Control 3.0 Technology
   Allows the user to adjust color controls digitally to compensate for the
   lighting conditions of their workspace, in order to achieve accurate,
   bright colors in all conditions.
* Integrated HDTV Encoder with Video Scaling and Filtering
   High-quality scaling and filtering technology improves video playback
   quality at any window size, including full-screen HDTV resolutions.
* Microsoft DirectX 9.0 Shader Model 3.0 Support
   Ensures top-notch compatibility and performance for all Microsoft
   DirectX 9.0 applications, including gaming titles utilizing Shader Model
   3.0.
* On-chip video processor
   Delivers a paramount multimedia experience. Integrated HDTV-output
   brings content from your desktop to your high-definition TV.
* Microsoft OpenGL 1.5 Optimizations and Support
   Ensures top-notch compatibility and performance for all OpenGL
   applications.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit PCI 8x
CHIPSET      - 300MHz nVIDIA GeForce 6200A-LE GPU
               4 Pixel Pipelines
MEMORY       - 256MB 64-bit DDR2 Memory
               4.26GB/sec. memory bandwidth
               533MHz (effective)
RAMDAC       - Dual 400MHz
CONNECTORs   - (1) 15-pin VGA port
               (1) 24-pin DVI-I port (DVI to VGA adapter included)
               (1) 7-pin S-Video/TV-Out Port
RESOLUTION   - 240 Hz Max Refresh Rate
               2048 x 1536 x 32-bit x 85 Hz Max Analog
               1600 x 1200 Max Digital
REQUIREMENTS - Intel Pentium III, AMD Duron or Athlon class processor or
                 higher.
               128MB system RAM
               A 300W system power supply
               An PCI slot
               50MB of available hard disk space
               CD-ROM or DVD-ROM drive
               Windows 98, ME, 2000, XP, or Windows NT4.0 (Service Pack 6)
               VGA or DVI-I compatible monitor
www.evga.com
                                 TECH e-mail -eVGATech@eVGA.com
