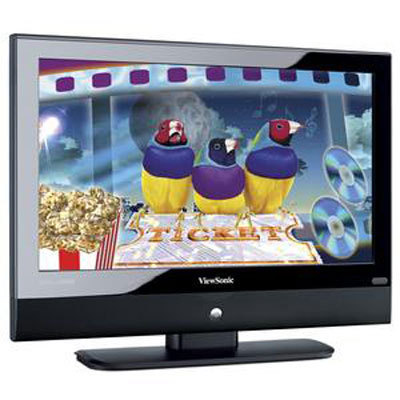

MODEL- N2635W            VENDOR- VIEWSONIC

FEATURES- 26" Widescreen LCD TV- Black bezel
       Immerse yourself in entertainment!
       ViewSonic's high-performance N2635w 26" widescreen LCD TV immerses
        you in HIGH-DEFINITION ENTERTAINMENT. Fast video response, high
        brightness and contrast ratio deliver crystal-clear fast action
        movies and videos. Build a complete high-definition home theater by
        connecting a DVD player, gaming console, HD set top box and more
        with the multiple video and audio connections. HDMI with HDCP
        ensures long term compatibility with emerging technolgoy. ADVANCED
        CLEARPICTURE ELECTRONICS enhance contrast, define details and boost
        color for amazingly lifelike images. Built-in 20-watt Dolby
        Digital sound completes the experience. For a total multimedia
        experience that your neighbors will envy, choose the ViewSonic
        N2635w.
    Includes LCD TV display, power cable(s), Remote control with batteries,
      VGA cable, RCA A/V cable, Quick Start Guide, User Guide.
* Experience wide-screen HDTV
   Enjoy a widescreen theater experience and a high-definition picture
   quality with this display's widescreen aspect ratio, HDTV capability,
   and wide viewing angles.
* ClearPicture electronics deliver clearer, crisper, sharper images
   ClearPicture electronics eliminate noise, increase contrast and detail
   and optimize color for rich, vibrant images. High-definition images look
   amazing and even standard television images are unbelievably smooth and
   sharp.
* Vivid graphics, clear text, stunning TV
   Ultra-high brightness of 500 nits (typ), high contrast ratio of 800:1
   (typ), and 1360x768 optimum PC resolution provide vibrant video and
   crisp data images on the desktop or in the living room.
* Expand your options with plug-and-play connectivity
   This HDTV provides the ultimate viewing experience with integrated HDTV
   tuner and plug-and-play, high-end connectivity for HD settop boxes,
   DVDs, game consoles and camcorders.
* OptiSync technology now features HDMI
   Add versatility to your LCD TV with support for HDMI with high-
   definition content protection (HDCP) and analog (VGA) signals, plus
   component, S-video, composite, and TV/cable input.
* Powerful high-fidelity audio
   It's all accompanied by an ultra-high fidelity 20-watt Dolby Digital
   sound that completes the entertainment experience.

  -- SPECIFICATIONs -----------------------------------
LCD PANEL     - Type         : 26" color TFT active matrix, wide LCD
                Display Area : 22.7" horizontal x 12.7" vertical
                Viewing Angle: 160 degrees horizontal, 150 degrees vertical
                Light Source : Long life, 50,000 hrs. (typical)
                Aspect Ratio : 16:9
                Glass Surface: Anti-glare, Anti-reflective coating
RESOLUTION    - 1366 x 768
RESPONSE TIME - 8ms gray-to-gray (average)
BRIGHTNESS    - 500 cd/m2 (typical)
CONTRAST RATIO- 800:1
VIDEO INPUT   - PC            : RGB Analog (0.7 Vp-p, 75 ohms)
                TV            : TV/cable
                                Composite (RCA)
                                Component YPbPr/YCbCr
                                S-Video
                Audio         : 3.5mm mini stereo audio in/out and RCA
                                  (left/right) audio in.
                RGB Frequency : 30-64 kHz (horizontal)
                                60-75 Hz (vertical)
                Sync          : H/V separated (TTL)
                Digital       : HDMI (with HDCP and audio support)
                Tuner         : ATSC/NTSC
AUDIO OUTPUT  - Speakers      : (2) 10-watt with Dolby Digital sound
INPUT SIGNAL  - TV/Video Comp.: 480i, 480p, 720p, 1080i
COMPATIBILITY - PC : 1360x768 (preferred), 1024x768, 1280x768, 1280x1024
                Mac: Power Mac G3/G4/G5 up to 1280x1024
CONNECTORS    - Analog        : (1) 15-pin mini D-sub (VGA) port
                Digital       : (3) HDMI ports
                Power         : 3-pin plug
CONTROLS      - Basic : Power, enter, channel +/-, volume +/-, menu
                OnView: PC Mode- Auto adjust, contrast, brightness, H.
                                   position, V. position, H. size, fine
                                   tune, aspect ratio, information,
                                   text/graphic mode, color temperature.
                        Video  - Picture (contrast, brightness, color,
                                   tint, sharpness, color temperature),
                                   sound (volume, balance, bass, treble,
                                   equalizer, SPDIF tuner, surround,
                                   reverb) input menu (TV, AV, S-video,
                                   YCbCr, YPbPr, HDMI, VGA), parental
                                   control (caption, change password, TV
                                   ratings, MPAA movie ratings, V-chip
                                   temporary disable), setup menu (time
                                   out, language, memory recall).
                        TV     - MTS, TV/CATV, auto scan, set channel,
                                   channel delete, label, favorite, fine
                                   tune.
VESA MOUNT    - 200mm x 400mm
APPROVALS     - cUL, FCC, NOM, EN 55013, CB
POWER SOURCE  - AC 90-240V (universal), 47/63Hz; Consumption 150W (typ.)
DIMENSIONS    - 25.9"w x 22.0"h x 8.2"d w/stand       WT.- 30.4 lbs.
                25.9"w x 19.4"h x 3.9"d w/o stand          26.9 lbs.
