MODEL- US41750            VENDOR- M-AUDIO

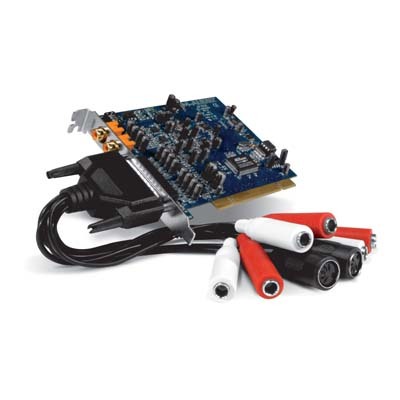

FEATURES- Audiophile 192
       High-Definition 4-In/4-Out Audio Card with Digital I/O and MIDI.
       The Audiophile 192 continues the legacy of M-Audios industry-
        standard Delta audio card line. Building on our Audiophile 2496--
        one of the worlds most popular audio cards--the Audiophile 192
        features high-definition 192kHz sampling rate, digital I/O,
        balanced analog I/O and an amazing signal-to-noise ratio. The
        Audiophile 192 represents a new benchmark in audio performance
        that Is as good as it gets for music production, mastering and
        critical listening. As with all Delta cards, you get rock-solid
        drivers and seamless integration with your favorite Mac and PC
        applications--and even the ability to combine multiple Delta cards
        in one system. And since M-Audio is always ahead of the pack, this
        world-class card is also compliant with PCI 2.2 and 64-bit audio
        drivers so you Are ready to take advantage of next-generation
        platforms and software. The Audiophile 192 is the new world-class
        standard in stereo audio cards.
* Up to 24-bit/192kHz audio
* 2 balanced analog inputs (1/4" TRS)
* 2 balanced analog outputs (1/4" TRS)
* S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
* SCMS copy protection control
* Digital I/O supports surround-encoded AC-3 and DTS pass-through.
* Direct hardware input monitoring via separate balanced 1/4": TRS monitor
  outputs.
* Software routing of inputs and outputs
* Digital I/O can be routed to/from external effects
* 16-channel MIDI I/O
* ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with
  most applications.
* 64-bit driver support for Windows
* PCI 2.2 compatibility

  -- SPECIFICATIONs -----------------------------------
SAMPLE RATES - 44.1, 48, 88.2, 96, 176.4, 192 kHz
MAIN INPUTS  - Max Input (balanced)   : +14.2dBu (4 Vrms)
               Max Input (unbalanced) : +14.2dBu (4 Vrms)
               Signal to Noise ratio  : -113dB @ 48kHz (A-weighted)
               Dynamic Range          : 113 dB @ 48kHz (A-weighted)
               THD + N                : 0.0006%, 1kHz, -1dBFS @ 48kHz
               Frequency Response     : +/-0.1dB, 20Hz to 20kHz @ 48kHz
               Crosstalk              : -130dB, 1kHz, channel-to-channel
               Impedance (balanced)   : 20k Ohms
               Impedance (unbalanced) : 10k Ohms
MAIN OUTPUTS - Max Output (balanced)  : +14dBu (3.9 Vrms)
               Max Output (unbalanced): +8dBu (1.95 Vrms)
               Signal to Noise ratio  : -108dB @ 48kHz (A-weighted)
               Dynamic Range          : 109dB @ 48kHz (A-weighted)
               THD + N                : 0.0023%, 1kHz, -1dBFS @ 48kHz
               Frequency Response     : +/-0.1dB, 20Hz to 20kHz @ 48kHz
               Crosstalk              : -105dB, 1kHz, channel-to-channel
               Impedance (balanced)   : 300 Ohms
               Impedance (unbalanced) : 150 Ohms
COMPATIBILITY- ASIO
               WDM
               GSIF 2
               Core Audio
REQUIREMENTS - PC : Pentium 3 - 700 MHz or higher, 256 MB RAM (192 and
                      96kHz operation).
                    Pentium 3 - 500 MHz or higher, 128 MB RAM (48kHz
                      operation).
                    DirectX 9.0b or higher
                    Windows XP (SP1) or Windows 2000 (SP4)
                    Available PCI slot
               MAC: Macintosh G4 733 MHz or higher
                    512MB RAM
                    Mac OS X Jaguar (10.2.8 or later) or Panther (10.3.4)
       www.m-audio.com
