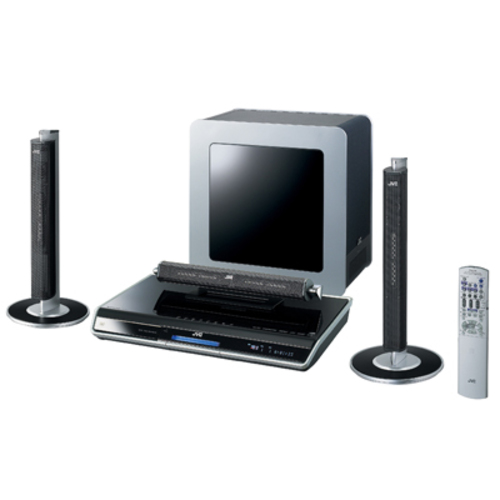

MODEL- DD-3               VENDOR- JVC COMPANY OF AMERICA

FEATURES- Home Theater Media System
       A New Type of DLNA CERTIFIED Network Media System featuring Front
        Surround with a Direct Drive Center Speaker, USB Host, HDMI
        Terminal, plus Direct Drive Front Speakers and a Stylish Subwoofer.
* Sources: LAN, USB, Disc, Tuner
* Plays DVD-Video, DVD-RW/-R, +RW/+R, JPEG, MP3, WMA, WAV (PCM), AC3,
  MPEG-1/2, MPEG-4 (ASF), MS MP4 v3, and DivX.
* Dolby Digital/DTS/Dolby Pro Logic II Decoders
* 220W Total Power
* Progressive Scan Output
* Component Video Output
* DLNA CERTIFIED Network Media Player
* Original Front Surround Technology
* Direct Drive Front/Center Surround Speakers
* Designed to match Flat Panel Displays
* USB Host (2.0 Full-Speed)
* HDMI Digital Output with Video Signal Conversion to 720p
* Wall-Mountable Direct Drive Speakers
* Digital Direct Progressive Scan Output
* Clear Voice Function
* 6-5/16" (16cm) Slim Powered Subwoofer

  -- SPECIFICATIONs -----------------------------------
CENTER UNIT  - Network Media Player Function: DLNA CERTIFIED
                 CyberLink Media Server (Microsoft Windows XP is required
                 for installing.)
               Formats (Video/Music/Picture)-
                 Disc: JPEG, MP3, WMA, WAV (PCM), AC3, DTS, MPEG-1/2,
                       MPEG-4 (ASF), MS MP4 v3, DivX.
                 USB Host (Up to 2Mbps): JPEG, MP3, WMA, WAV (PCM), AC3,
                       MPEG-1/2, MPEG-4 (ASF), MS MP4 v3, DivX.
                 LAN (Up to 12Mbps): JPEG, MP3, WMA, WAV (PCM), AC3,
                       MPEG-1/2, MPEG-4 (ASF), MS MP4 v3, DivX.
               Single-play DVD Player
               Formats: DVD-Video, DVD-R/RW (Video), DVD+R/RW (Video),
                        CD/CD-RW, SVCD/VCD, MP3, WMA, IDE/WMA Tag, WAV
                        (PCM), JPEG Digital Still, MPEG-1/2, MPEG-4 (ASF),
                        MS MP4 v3, DivX.
               Approx. 500 lines Horizontal Resolution
               NTSC Playable system
               Digital Direct Progressive Scan Output
FRONT SURROUND SYSTEM-
               Auto, Movie/Multi Music, Wide/2ch Music, Super Wide
               Quick Portable Link
               Clear Voice Function
               Circuitry: Video D/A Converter- 12-bit/108MHz
                          Audio D/A Converter- 96kHz/24-bit
                          Dolby Digital Decoder
                          DTS Decoder
                          Dolby Pro Logic II Decoder
               DVD: Rolling Pickup
                    VFP (Video Fine Processor)
                    Variable Search (Forward/Reverse): Auto/Time/Group
                    Variable Slow (Forward/Reverse)
                    One-Touch Replay: 10 Sec.
                    Repeat/ Random/ Program (99)/ Resume Fuction
                    Slow/ Zoom/ Angle/ Still/ Subtitle
                    MPX
               Tuner: Band- AM/FM
                      Number of Presets- 15 AM and 30 FM
                      Sleep Timer
               Terminals: Component Video Out
                          S-Video Out
                          Composite Video Out
                          USB Host (2.0 Full-Speed)
                          Headphone Out
                          HDMI Digital Out (720p Up-Conversion)
                          LAN
               Video Output Signal Level:
                    Component (Y): 1.0Vp-p/75 ohms
                    Component (Pb/Pr): 0.7Vp-p/75 ohms
                    S-Video (Y): 1.0Vp-p/75 ohms
                    S-Video (C): 0.286Vp-p/75 ohms
                    Composite  : 1.0Vp-p/75 ohms
               Audio Input/Output:
                    Analog IN/OUT (Front x 1/Rear x 1)/(Front x 1)
                    Digital IN/OUT
                    Bass/Treble Control
                    On-Screen Language in English/ French/ Spanish
                    Remote Control Unit (Glow Type)
POWER OUTPUT - (10% THD): Total Power (RMS) 220W
                          Front 25W x 2, 3 ohms, at 1kHz
                          Center 25W x 2, 3 ohms, at 1kHz
                          Subwoofer 120W, 4 ohms, at 100Hz
SUBWOOFER    - Magnetically Shielded
               (1) 6-5/16" (16cm) Cone, Bass-Reflex, Powered
               120W Power Handling Capacity
               Impedance 4 ohms
               Frequency Range 30Hz - 230Hz
               Sound Pressure Level 72dB/W.m
FRONT SPKRS  - (1) 3-3/4" (9.5cm) x 7/16" (1cm) Direct-Drive Speaker
               (1) 13/16" (2cm) Dome Tweeter
               Magnetically Shielded
               Wall-Mountable
               Power Handling Capacity 30W
               Impedance 3 ohms
               Frequency Range 100Hz - 40kHz
               Sound Pressure Level 78dB/W.m
CENTER SPKR  - (2) 3-3/4" (9.5cm) x 7/16" (1cm) Direct-Drive (2-channel)
               Magnetically Shielded
               Wall-Mountable
               Power Handling Capacity 30W
               Impedance 3 ohms
               Frequency Range 120Hz - 40kHz
               Sound Pressure Level 79dB/W.m
DIMENSIONS   - Center Unit: 17-9/16"w x 2-3/16"h x 11-5/16"d  WT.- 6.7 lbs.
               Subwoofer  :  9-9/16"w x 14-3/8"h x 14-5/16"d      27.1 lbs.
               Front      :  6-1/2"w  x 14-13/16"h x 6-1/2"d       2.2 lbs.
               Center     : 13-9/16"w x  2-7/16"h x 3"d            2.1 lbs.
