MODEL- EMPS5              VENDOR- EPSON AMERICA

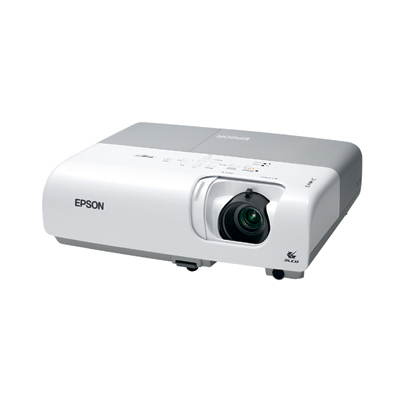

FEATURES- PowerLite S5 Multimedia Projector
       Versatility, value and outstanding performance!
       With SVGA resolution, 2000 lumens and high-aperture Epson 3LCD
        technology -- all in just 5.8 lb, the travel-friendly Epson
        PowerLite S5 helps you achieve powerful presentations, at your
        office or on the road. The smart choice for any business, it even
        includes an energy-efficient E-TORL lamp that lasts up to 4000
        hours.
       Get right to it with a 5-second startup (Instant On). Then, take
        control of your presentation with the convenient A/V Mute Slide.
        Just slide it over to instantly shut off images and sound. After
        you've completed your presentation, shut down quickly using the
        Instant Off function, and head off to your next important meeting.
    Includes Multimedia Projector, Power cable, Computer Cable, Projector
      Remote Control, Batteries, Soft Carrying Case, CD-ROM, Quick Setup
      Sheet, PrivateLine Support Card, Password Protection Sticker.
* Brilliant presentations in almost any lighting condition with 2000 lumens
* Lightweight, travel-friendly design (just 5.8 lb)
* Instant On and Instant Off for fast setup and quick shut down
* Native SVGA (800 x 600) resolution for remarkable clarity and color --
  supports HDTV (720p, 1080i), XGA, SXGA+.
* Sharper, more intense images with the latest generation of high-aperture
  Epson 3LCD technology.
* Greater positioning flexibility with 1.3x digital zoom
* A/V Mute Slide for greater control over any presentation (instantly turns
  off the sound and images).
* Energy-efficient E-TORL lamp that lasts up to 4000 hours
* Easy lamp and air filter access for quick, affordable replacements
* Convenient anchor bar for added security in any environment

  -- SPECIFICATIONs ------------------------------------
PROJECTION SYSTEM-
               Epson 3LCD Technology
PROJECTION METHOD-
               Front/rear/ceiling mount
LCD PANEL    - Driving method   : Epson Poly-silicon TFT Active Matrix
               Pixel number     : 480,000 dots (800 x 600) x 3 LCDs
               Native resolution: SVGA
               Aspect ratio     : 4:3 (supports 16:9)
               Pixel arrangement: Cross Stripe
PROJECTION LENS-
               F-number         : 1.44
               Focal Length     : 16.6m
               Zoom ratio       : Optical zoom 1.0 ~ 1.35
LAMP         - Type             : E-TORL 170 W UHE
               Life             : 3000 hours (high brightness)
                                  4000 hours (low brightness)
SCREEN WIDTH RATIO-
               1.2 (Dist/Width)
SCREEN SIZE  - 30" ~ 300" (2.9 ~ 39.8 ft)(projected distance)
KEYSTONE CORRECTION- (automatic)
               Vertical: +/- 30 degrees
BRIGHTNESS   - Up to 2000 lumens (High Brightness Mode)
CONTRAST RATIO-
               Up to 400:1 (High Brightness, Game Mode)
BRIGHTNESS UNIFORMITY-
               90% (typical)
COLOR REPRODUCTION-
               24-bit; 16.7 million
AUDIO OUTPUT - 1 Watt Monaural
SCANNING FREQUENCY RANGE-
               Pixel clock        : 13.5MHz to 162MHz
               Horizontal         : 15KHz to 92KHz
               Vertical           : 50Hz to 85Hz
REMOTE CONTROL-
               Source selection, power, aspect, color mode, volume, e-zoom,
                 A/V mute, freeze, menu, help, auto.
RGB          - Native             :  800 x  600
               Resize             :  640 x  480
                                    1024 x  768
                                    1280 x 1024
                                    1400 x 1050
VIDEO I/O    - Display Performance: NTSC: 560 lines
                                    PAL : 560 lines (Depends on observation
                                            of the multi burst pattern).
               Input signal       : NTSC, NTSC4.43, PAL, M-PAL, N-PAL,
                                      PAL60, SECAM.
                                    HDTV: 480i, 480p, 720p, 1080i
               Interfaces         : Computer/
                                       Component video: Mini D-sub 15 pin
                                    S-video: Mini DIN
                                    Composite video: RCA
                                    Monitor out
                                    Composite audio RCA x 2
CONTROL I/O  - USB Type B (for mouse and keyboard control)
SECURITY     - Kensington-style lock provision
ACCESSORIES  - V13H010L41    Replacement lamp
               V12H162020    ELPDC05 High Resolution Document Imager
               V13H134A13    Air filter set
               ELPKS43       Soft Shoulder Case
               ELPKS35S      Wheeled Soft Case for Projector and Laptop
               ELPDA01       Distribution Amplifier
               ELPKC19       Component Video Cable, 3.0m
               ELPSV01       S-Video Cable
               ELPMBACC      Adjustable Ceiling Channel
               ELPMBUNI      Ceiling Mount
               ELPMBFCP      False Ceiling Plate
               ELPMBAPL      Suspension Adapter
               ELPSL01       Kensington Microsaver Security Lock
               ELPMBSEC      Security Dual Lock Mounting Cable System
               ELPSC09       Classroom Style Pull-Down Screen 83.6"
               ELPSC80       Duet Ultra Portable Projector Screen
               ELPSC07       Portable Pop-up Screen 60"
               ELPSC08       Portable Pop-up Screen 80"
               ELPSC06       Portable Projection Screen 50"
FAN NOISE    - 35db (High Brightness Mode)
               28db (Low Brightness Mode)
POWER SOURCE - 100 ~ 240 VAC +/-10%, 50/60Hz; Consumption 248W/4.1W standby
DIMENSIONS   - 9.6"w x 4.3"h x 12.9"d         WT.-  5.8 lbs.
    www.epson.com
