MODEL- HLE08500-01K       VENDOR- ACTIONTEC ELECTRONICS

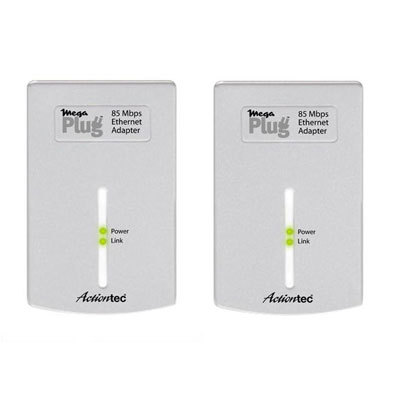

FEATURES- MegaPlug 85 Mbps Ethernet Adapter- 2 Pack
       Actiontec's MegaPlug 85 Mbps Ethernet Adapter ups the ante for ease
        of use and network expandability. Just plug a MegaPlug Ethernet
        Adapter in any 2- or 3-prong electrical outlet in one room of your
        house, and another MegaPlug Adapter in any power outlet, and you've
        got instant network access across your power lines. What could be
        easier? If you need a simple way to extend your home network, the
        MegaPlug 85 Mbps Ethernet Adapter is the quickest and most
        economical way to do it.
       Nothing could be easier than creating a network connection with a
        pair of MegaPlug Ethernet Adapters. Instead of stringing unsightly
        Ethernet cables all over your house, the Adapters use your home's
        already installed and hidden power lines to transfer data at up to
        85 Mbps, making every available electrical outlet a potential
        network connection. Your networking possibilities are suddenly
        endless!
       Use the MegaPlug 85 Mbps Ethernet Adapter to link your computers
        together, install a networked printer, or connect another device
        (scanner, networkable hard drive, etc.) to your network. The
        Ethernet Adapter even works with all popular gaming consoles, so
        playing networked games is a breeze. Integrated QoS (Quality of
        Service) is also included, ensuring smooth data transfers.
* No new cables required. Uses your existing power lines.
* Very Easy to Use -- Simply plug in
* Compatible with any Router or Gateway
* Supports HomePlug speeds up to 85 Mbps
* Integrated QoS
* Perfect for gaming! Use with any Gaming Console.
* Secure data encryption

  -- SPECIFICATIONs -----------------------------------
STANDARDs    - IEEE 802.3, HomePlug Turbo Powerline Specification 1.0.1
PROTOCOLS    - Forward Error Correction (FEC)
               Automatic Channel Adaptation
DATA RATEs   - Up to 85 Mbps over standard home power lines
RANGE        - Up to 300 meters in wall power lines
               Capable of passing through circuit breakers
SECURITY     - 56-bit DES Data Encryption
FREQUENCY    - 4.3 MHz ~ 20.9 MHz
MODULATION   - OFDM Symbol Modulation
               DQPSK
               DBPSK
               ROBO Carrier Modulation
QoS          - Integrated
               Prioritized Random Access
               Contention-Free Access
               Segment Bursting
INDICATORs   - LEDs for Power, Link
APPROVALs    - FCC Part 15 Class B
               UL
REQUIREMENTS - Router, Gateway, or other device with HomePlug capability
               Microsoft Windows 98SE,Me, 2000 or XP
               TCP/IP Network Protocol Installed
               Internet Explorer 4.0+ or Netscape 4.0+
POWER SOURCE - 100 to 240V @ 50/60 Hz internal
  www.actiontec.com
