MODEL- KVM-1601PREU-OSD    VENDOR - ADDLOGIX

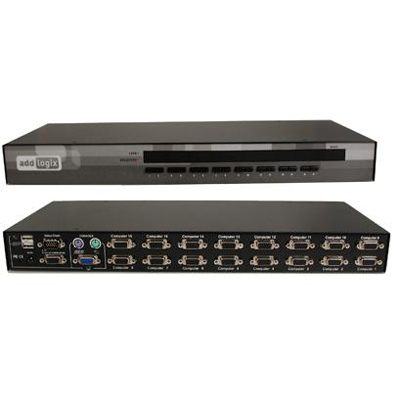

FEATURES- PowerReach 16-port Rackmount KVM Switch
       The daisy-chained feature in the PowerReach 16-Port Rackmount allows
        server expansion to the hundreds. The enhanced hot-plugging
        capability allows the administrator to plug and to unplug cablings
        in and out of the KVM switch without powering down the connected
        servers. Dual USB and PS/2 interface support on both console and PC
        side offers maximum convenience in a computing environment that
        accommodates both newer USB-enabled computers and older computers
        with only PS/2 interfaces.
* 16-port 19" Cascadable Rackmount USB PS/2 KVM switch with OSD
* Daisy-chain ready up to 8 levels
* USB and PS/2 interface support on both console and PC side
* Support Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse
  and other compatibles.
* Direct channel selection and operation using front-panel push buttons and
  keyboard hotkeys.
* Support for DOS, Windows 95/98/SE/ME/2000/XP, Linux and Netware
* Dual numerical LED displays and LED indicators for easy bank/port status
  monitoring.
* Hot-plugging PCs for maintenance without powering down the KVM Switch or
  PCs.
* Enhanced PS/2 mouse reset hotkeys for non-PnP OS such as Win NT 4.0 and
  Linux.
* LED indicators for easy port status monitoring
* Plug-and-play for PnP OS, no Windows driver software needed
* Buzzer sound for hotkey and port switching confirmation
* Autoscan mode for quick browsing of all connected computers
* Search PC by name
* Password protection
* High VGA resolution 1920 x 1440
* 19" rack mount design with metal enclosure for best shielding and
  protection.

  -- SPECIFICATIONs -----------------------------------
CONNECTORS   - (16) HD15 ports
               ( 1) Console port
               ( 1) Daisy-chain port
               ( 2) USB Type A ports
               ( 2) PS/2 female 6-pin miniDIN ports (for keyboard & mouse)
               ( 1) 15-pin VGA HDB female port
MISCELLANEOUS- On-Screen Display
               Hotkeys/Pushbuttons/OSD
               32 PC Port LEDs
               5 - 99 second Scan Delay Time (programmable)
RESOLUTION   - 1920 x 1400
HOUSING      - metal enclosure
POWER SOURCE - DC 9V, 500mA Adapter (optional)
DIMENSIONS   - 16.0"w x 1.75"h x 6.5"d        WT.- 2 lbs.
               (1U rackmount space)
