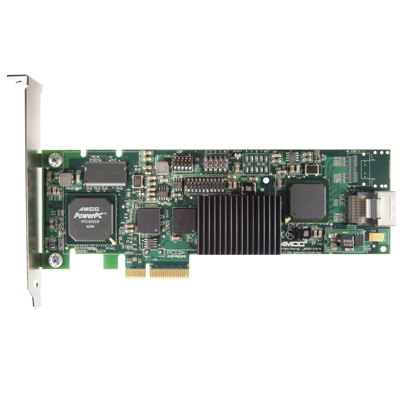

MODEL- 9650SE-4LPML-SGL    VENDOR- 3WARE/AMCC STORAGE

FEATURES- PCI Express to Serial ATA II Hardware RAID Controller- Bulk Singl
       AMCC's 3ware 9650SE SATA II hardware RAID controllers deliver
        industry-leading RAID 6 and RAID 5 performance, robust fault
        tolerance, and multi-terabyte capacities. A PCI Express host
        interface, Multi-lane connectivity, StorSwitch architecture and
        sophisticated SATA II features drive this unrivaled performance.
       The 3ware 9650SE PCI Express to SATA II RAID controller pushes
        AMCC's established leadership in RAID controller performance to new
        heights. While 3ware controllers continue to lead the market in
        RAID 5 performance, the 3ware 9650SE outshines the competition as
        the new standard bearer for RAID 6 performance, delivering over
        800MB/s RAID 6 reads and 600MB/s RAID 6 writes.
       3ware's parallel XOR RAID 6 parity generation algorithm maximizes
        RAID 6 throughput, so that RAID 6 enabled 9650SE controllers
        deliver unequaled RAID 6 performance.
* 8th-generation StorSwitch non-blocking switched architecture.
* On-board I/O RISC processor and RAID offload provides true hardware RAID.
    - SCSI device driver model to take advantage of the benefits of SCSI
      using inexpensive Serial ATA drives .
* Bootable array support for greater fault tolerance.
* Variable stripe size for performance tuning by application.
* 64-bit LBA support.
* ATA pass-through mode support.
* Up to 512MB DDR2 533 memory with ECC protection.
* 32 pooled DMA channels.
* Complete configuration management suite.
   - 3ware BIOS Manager 2 (3BM2) -- easy to use BIOS configuration tool.
   - 3ware Disk Manager 2 (3DM2) -- browser-based management tool.
   - Command Line Interface (CLI) -- scriptable configuration tool.
* SNMP support.
* SMTP support for email/pager notification.
* ATA/6 and Out of band (OOB) staggered drive spin-up support.
* Auto carving allows LUNs > 2TB to be divided into multiple units for
  legacy operating systems limited to 2TB max. per LUN.
* Battery Backup Unit (BBU) support.
* Multiple logical unit sizes and RAID levels on one card.
* Multiple card support within a system for large storage requirements.
* Hot-swap and hot-spare support for data availability.
* Dynamic sector repair for robust data protection.
* S.M.A.R.T. disk drive monitoring for reliability.
* Emergency Flash Recovery protects against failed firmware upgrade.
* Drive activity LED support.
* Online Capacity Expansion and RAID Level Migration.
* Enhanced data protection with write journaling for non-redundant arrays
  and accidental drive removal.
* Drive insertion and removal notification.
* Array/Drive Status and drive identification LED support. (requires 3ware
  Chassis Control Unit-enabled backplane)
* Chassis Control Unit for enclosure management via I2C.
* RoHS compliant

  -- SPECIFICATIONs -----------------------------------
FORM FACTOR   - Low Profile
PORT COUNT    - 4
PCI EXPRESS   - 4 lanes
RAID LEVELS   - 0, 1, 5, 10, Single Disk, JBOD
CACHE MEMORY  - 256MB DDR2 533MHz
CONNECTOR TYPE- Multi-lane
BBU SUPPORT   - Yes
 www.3ware.com
