MODEL- 602029             VENDOR- CANOPUS

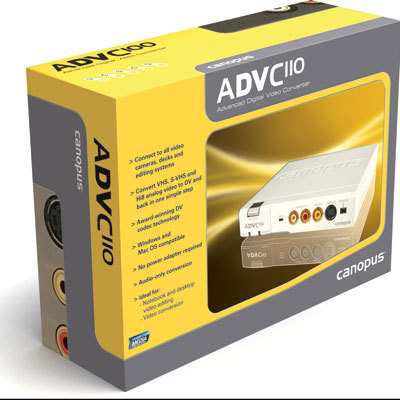

FEATURES- ADVC-110  Advanced Digital Video Converter
       High-quality Bidirectional Analog/Digital Video Conversion.
       Use ADVC-110 to connect all analog and digital video cameras, decks
        and editing systems. ADVC110 is a portable and easy-to-use digital
        video converter compatible with Windows and Mac OS computers.
       ADVC110 is the ideal device for capturing and outputting analog
        video from any FireWire-equipped notebook and desktop computer.
        There are no drivers to install and ADVC110 does not require a
        power supply when used with a 6-pin FireWire cable.
    Includes ADVC-110 unit, One FireWire cable (6-pin to 6-pin) and User
      manual.
* Intelligent Input/Output
   ADVC110's intelligent usability allows for easy setup and connection in
   any video environment. Front and rear connectors provide analog and DV
   signal pass-through and ensure that connecting cables is neat and
   simple.
   ADVC110 also features a color bar reference signal generator to further
   enhance its integration into any video production environment.
* Proven DV Codec Technology
   At the heart of ADVC110 is Canopus's proprietary DV codec chip,
   providing the industry's best picture quality preservation during
   analog-to-DV and DV-to-analog conversion.
* Locked/Unlocked Audio Support
   Other converters can lose audio/video sync when converting longer
   segments of video. ADVC110 supports locked audio when converting from
   analog to digital, assuring perfect audio and video synchronization.
   ADVC110 also allows conversion of analog audio signals only, when
   needed.
* Long product life
   The broadest video equipment and editing software compatibility ensures
   ADVC110 provides a long product life and a high return on investment.

  -- SPECIFICATIONs ------------------------------------
VIDEO FORMATS- NTSC: 720 x 480 @ 29.97fps
               PAL : 720 x 576 @ 25   fps
                 ADVC110 also accepts SECAM video (input only)
AUDIO FORMATS- 2-channel 48kHz 16-bit
               2-channel 32kHz 12-bit
DIGITAL VIDEO INPUT/OUTPUT-
               (1) 4-pin S100 FireWire port (100Mbps)
               (1) 6-pin S100 FireWire port (100Mbps)
ANALOG VIDEO INPUT-
               (1) S-Video port (4-pin miniDIN)
               (1) Composite port (RCA)
ANALOG VIDEO OUTPUT-
               (1) S-Video port (4-pin miniDIN)
               (1) Composite port (RCA)
ANALOG AUDIO INPUT- (unbalanced)
               (1) Stereo port (RCA)
ANALOG AUDIO OUTPUT- (unbalanced)
               (1) Stereo port (RCA)
POWER SOURCE - IEEE 1394 bus powered or DC5V from EIAJ#2 DC jack
REQUIRES     - Note   : A video capture card or IEEE 1394 FireWire
                         connection is required to capture DV.
               Wins PC: Windows 2000 (requires Service Pack 3 or higher),
                         Windows XP Home or Windows XP Professional
                         (requires Service Pack 1 or higher).
               Mac    : Mac OS X 10.1 or later
www.canopus.com
  Canopus basic tech support is available from the Knowledge Base at
canopustechsupport
