MODEL- ELIMINATOR         VENDOR- COOLIT INC

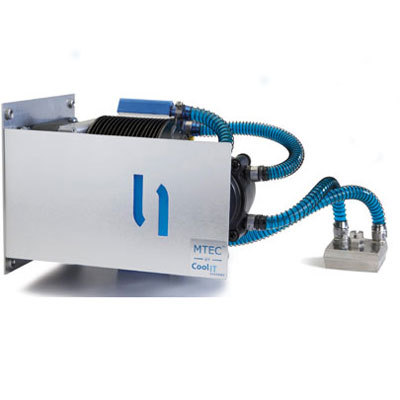

FEATURES- Eliminator Thermoelectric CPU Cooler
       The Eliminator is recommended for CPUs with a total heat output of
        up to 125W. The Eliminator is targeted for overclocking nearly any
        dual core CPU while the Freezone is more than capable of cooling
        the new quad core kentsfield from Intel.
        Eliminator has 3 TECs with a total maximum power draw of 40W.
        The Thermal Control Module (TCM) on the Eliminator has 3 settings -
         low, medium and high. "Low" is intended for very low power CPU's
         in a multimedia setting where there is a desire for very low noise
         output. "Medium" will be more than adequate cooling for day to day
         activities as well as gaming for stock processor speeds. "High" is
         maximum cooling power for the overclocking enthusiasts.
* Patented FHE Design Promotes Heat Transfer
   The Eliminator CPU Cooler is equipped with a CPU FHE (Fluid Heat
   Exchanger, or cold plate) that is monolithic (a solid piece of) copper.
   This FHE is designed to absorb high thermal flux from an area with high
   thermal density (i.e., it is very effective at removing a lot of heat
   from a very small surface).
* Integrated Design
   The Eliminator CPU Cooler patented chiller module has an integrated
   reservoir, which consists of a high flow DC pump and expansion chamber.
   Combining the Chiller and the Pump into a single module is a space-
   saving design that allows for ease of installation.
* Regulated Temperature Control
   Because of the extreme cooling capacity the Freezone product provides,
   there is a TCM (Thermal Control Module) built into the system to protect
   against over-cooling and condensation.  The TCM regulates the amount of
   power that is applied to the TECs and exhaust fan.  The TCM will
   automatically vary system level output to adjust for changes in both
   ambient temperature and CPU load.  This complies with Energy Star
   standards.
* Adjustable User Settings
   The factory TCM setting will automatically adjust the system to run
   silently during low load operations and boost cooling power under heavy
   loads and/or adverse environmental conditions.  Since the TCM regulates
   the TECs as cooling boosters, it is far more effective than simple fan
   speed regulation.  If the user desires, the TCM can be manually adjusted
   to suit the preferences of an individual user.  For example, if the user
   intends to enhance the performance of a CPU, the TCM can be adjusted to
   reduce the coolant temperature and thus reduce the operating temperature
   of a CPU; if the user requires continuous silent operation, the TCM can
   be safely adjusted to reduce power output to the TECs and exhaust fan.
* Maintenance-Free Operation
   The Eliminator CPU Cooler requires less maintenance than air or water-
   cooling systems. The liquid system itself is factory-sealed and a closed
   loop constructed with vapor resistant materials and fitted with gas
   resistant plumbing. This way, the Eliminator CPU Cooler never requires
   refilling, for the entire life of the system.  The chiller module itself
   has a heatsink that promotes laminar air-flow through the fins.  Laminar
   flow ensures that dust, dirt and particulates simply pass through the
   fin array, while promoting maximum thermal transfer.  The only
   maintenance the Eliminator CPU Cooler system requires is the occasional
   dusting of the exhaust fan. This can be accomplished in a few seconds
   using compressed air, or gas.
* Environmentally Friendly Coolant
   The coolant in the liquid loop is composed of Low-Tox PPG (polypropylene
   glycol) and distilled water. This mixture is environmentally friendly,
   promotes enhanced cooling and reliability, and it is recyclable.  Unlike
   water cooling systems, the Eliminator CPU Cooler only contains about 125
   CCs (half a cup) of coolant. The coolant temperature is tightly
   regulated by the TCM in real time. That means the Eliminator CPU Cooler
   does not require a large reserve of coolant to act as a temporary heat
   dump for low duration operations at high loading. In fact, the
   Eliminator CPU Cooler's duty cycle is designed for 100% operation under
   continuous maximum loading.

  -- SPECIFICATIONs -----------------------------------
CPU FHE      - (Fluid Heat Exchanger)
               Design      : Monolithic copper, multi-cell, single channel
               Dimension   : 42 x 42 x 17 mm
               Weight      : 195 grams
TCM          - (Thermal Control Module)
               Design      : Dual IC SMT PCB w/outboard IC sensor
               Input       : 12VDC, 5VDC
               Weight      : 89 x 53 mm
               Function    : Thermal controller to adjust TEC and fan power
                               output.
CHILLER & PUMP MODULE- (Heatsink)
               Design      : 3-way dissipation plate, anodized alloy,
                               laminar flow array.
               Dimension   : 105 mm (diameter) x 60 mm (deep)
               Weight      : 380 grams
                       (TECs)
               Design      : Three solid-state heat pump wafers
               Dimension   : 40 x 40 x 3.5 mm (each)
               Weight      : 20 grams (each) x 3
               Function    : Active coolant thermal reduction
                       (Chiller FHE's):
               Design      : Tri anodized alloy distribution, multi-
                               channel w/laminar flow.
               Dimension   : 41 x 41 x 12 mm (each)
               Weight      : 32 grams (each) x 3
                       (Fan)
               Noise       : 34dBA
               Bearing Type: Enhanced life ceramic
               Life Cycle  : 50,000 hrs
               Dimension   : 92 x 92 x 38 mm
               Function    : Heatsink convection, chassis exhaust
                       (Pump and Reservoir)
               Design      : 12VDC coreless outrunner pump w/integrated
                               expansion vessel.
               Bearings    : Dual in fluid sapphire bearings
               Noise       : <15dBA
               Life Cycle  : 50,000 hours
               Dimension   : 50 x 50 x 75 mm
               Weight      : 360 grams
