Enermax Galaxy DXX EGX850EWL 850W Power Supply

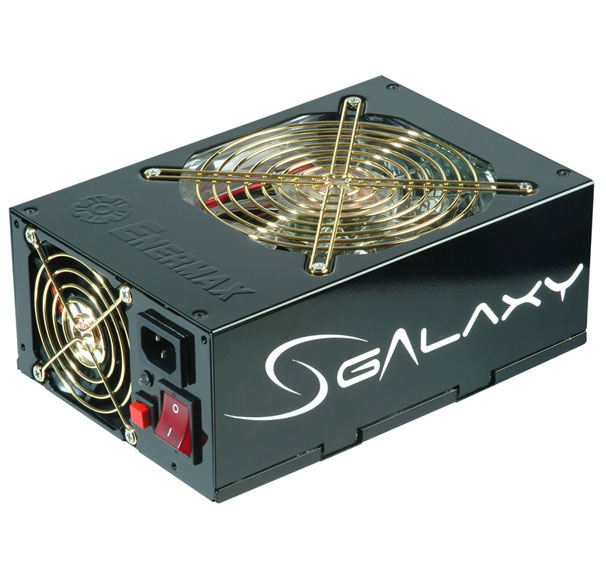

1038824_Enermax_EGX850EWL.jpg-ENERMAX_850W_POWER_SUPPLY

Manufacturer	Enermax
Mfg. Part #	EGX850EWL
ITEM#	510792
Unit Price	$282.50 (~CAD$281.91)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$282.50 (~CAD$281.91)	$320.00 or less (~CAD$319.33)
3 ~ 7	$279.38 (~CAD$278.80)	$309.88 or less (~CAD$309.23)
8 ~ 14	$276.25 (~CAD$275.67)	$304.31 or less (~CAD$303.68)
15 ~ 19	$273.13 (~CAD$272.56)	$300.30 or less (~CAD$299.67)
20 ~	$270.00 (~CAD$269.44)	$296.93 or less (~CAD$296.31)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Product Description:
Features :

	850 WATTs CONTINEOUS POWER for the most EXTREME SYSTEMS.
	816 WATTs 12V COMBINED POWER for the most EXTREME CPU and GRAPHICS.
	24/7 @ 50C NON-STOP FULL POWER @ 50C by design and components.
	2007 EPS12V COMPLIANT WORLD’s FIRST PSU compliant with upcoming 2007 EPS12V design guide revision.
	WORLD’s FIRST FIVE 12V rails 2007 EPS12V specification for next-generation systems.
	WORLD’s STRONGEST +5Vsb output of 6A 2007 EPS12V specification for next-generation systems & multiple USB devices.
	QUAD QUAD QUINTUPLE + 24 support QUAD CPU, QUAD CORE, QUINTUPLE GRAPHICS, 24 DRIVES.
	Dual 6+2P PCI-E & Triple 6P PCI-E connector Maximize extreme multiple GPU + physic accelerator graphics performance.
	80-85% EFFICIENCY @ 20-100% load for the SMALLEST electricity BILLS
	MODULAR connectors MAXIMUM SATA or IDE/SCSI drives (21+3 of free choice).
	SILENT & COOL by 13.5 & 8cm dual fans, with durable two ball bearings.
	POWER GUARD 4 ALERT MODES on PSU STATUS with RESET button.
	TRIPLE TRANSFORMER TECHNOLOGY the UTMOST in STABILITY & POWER.
	COMBINED MINIMUM LOAD design OUTSTANDING COMPATIBILITY with upcoming multi-core processors.
	RAM POWER CABLE WORLD’s FIRST PSU with a dedicated RAM power cable to support 32-64GB RAM systems.
	ACTIVE PFC & UNIVERSAL AC IN run your GALAXY from 90-264VAC with automatic adjustment

Specifications :

EGX850EWL					EGX1000EWL
AC Input
Input Voltage		100-240VAC, 50-60Hz, automatic switching (Active PFC universal)
Input Current		12A max.			15A max.
DC Output
+3.3V	(min/max)	0.5A / 30A	200W Combined		0.5A / 30A	200W Combined
+5V	(min/max)	0.5A / 30A			0.5A / 30A
+12V1	(min/max)	1.0A / 24A	816W (68A) Combined		1.0A / 24A	900W (75A) Combined
+12V2	(min/max)	1.0A / 24A			1.0A / 24A
+12V3	(min/max)	0.9A / 24A			0.9A / 24A
+12V4	(min/max)	1.0A / 24A			1.0A / 24A
+12V5	(min/max)	0A / 24A			0A / 24A
-12V	(min/max)	0A / 0.6A			0A / 0.6A
+5Vsb	(min/max)	0A / 6A			0A / 6A
Total Power		850W			1000W
Peak Power		950W			1100W
Protection Circuits
Over Voltage Protection		DC rails		Trigger Range
		+3.3V		3.9 ~ 4.5V
		+5V		5.7 ~ 6.5V
		+12V 1/2/3/4/5		13.3 ~ 14.5V
		-12V		-13.3 ~ -14.5V
		+5Vsb		5.7 ~ 6.5V
Over Current Protection		DC rails		Trigger Range
		+3.3V		33 ~ 48A
		+5V		33 ~ 48A
		+12V 1/2/3/4/5		25 ~ 30A
Over Load Protection		Activated when total output > 110 ~ 150% of rated max load
Short Circuit Protection		Activated when any DC rails short circuited
Under Voltage Protection		Activated when AC input voltage < 75VAC
Others
Efficiency		81~85%, from 20~100% loading, 230VAC/50Hz
Operation environment		Ambient temperature: 0~50oC / 32~122oF Humidity: to 85% relative humidity, non-condensing at 25oC
Storage environment		Ambient temperature: -40~70oC / -40~158oF Humidity: to 95% relative humidity, non-condensing at 50oC
MTBF		> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25oC
Cooling		1 x 8025 axial fan, 2-ball bearings, 1400~3500RPM 1 x 13525 axial fan, 2-ball bearings. 700~1800RPM
Dimension		150 (w) x 86 (h) x 220 (d) mm
Weight		3.55 kg (without modular cable)
Safety		UL/cUL, TÜV
EMC		CE, FCC
