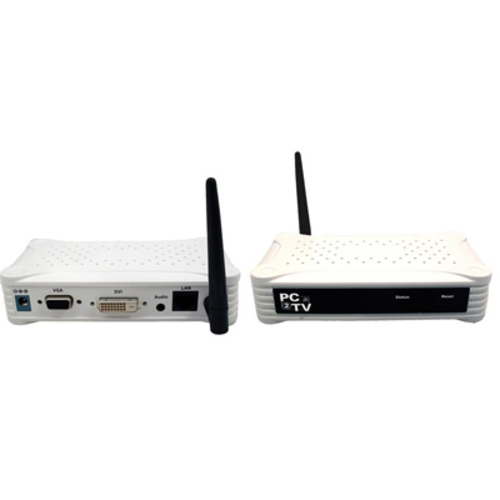

MODEL- EV2100             VENDOR - ADDLOGIX

FEATURES- InternetVue 2100 (VGA & DVI video output)
       Wirelessly Send Video from Computer to Projectors and More!
       InternetVue (formerly EchoView FM), Addlogix's compact Display Video
        Adapter connects to TV's component video or composite video input.
        It allows a computer to use its onboard or add-on IEEE802.11 b/g
        adapter to wirelessly stream video to the TV without any cable.
        With the video quality at up to 30 frames per second, the
        transmitted video is smooth and jitter-free with virtually no delay
        or distortion. Browser based internet videos and digital photos
        will look great on the big screen TV.
       InternetVue offers a fast and easy "out-of-box" set up and is
        controlled by user-friendly software which is built into the unit.
        When powered on, InternetVue shows up as an available wireless
        network connection (similar to a WiFi Hotspot" connection) on the
        computer's network setting. Users simply load the installation disc
        in the computer. Upon user's confirmation, the software driver is
        then installed to the computer. To send PC screen wirelessly to
        InternetVue and the connected TV, all user has to do is launch the
        installed application.
* Duplication mode (mirrors the computer's screen)
* Extended mode (doubles the notebook computer's screen)
* Up to 1024 x 768 XGA graphics resolution
* Up to 640 x 480 VGA/SD video resolution
* Up to 30 fps frame rate
* Up to 32-bit color depth
* Up to 75Hz frequency
* Send computer video wirelessly to TV, monitors, projectors, or other
  video displays.
* Compatible with wireless (802.11 b/g) enabled PC (no additional hardware
  required).
* Plug-and-play installation with driver installed from the product (no CD)
* Access Internet or local area network (LAN) through on-board 10/100
  Ethernet interface.
* Compatible with Intel-based Mac's (requires installation of Apple Boot
  Camp and Windows XP).

  -- SPECIFICATIONs -----------------------------------
CONNECTORS   - (1) DVI output
               (1) VGA output
               (1) 3.5mm stereo audio output
               (1) Ethernet (RJ45) socket
SECURITY     - WEP: 64/128 bit-Hex or 64/128 bit ASCII
               WPA2PSK
REQUIREMENTS - Pentium 1.5GHz
               512 MB RAM
               802.11 b/g Wireless
               Windows XP Pro, XP Home, WIN 2K w/SP4
  www.addlogix.com
