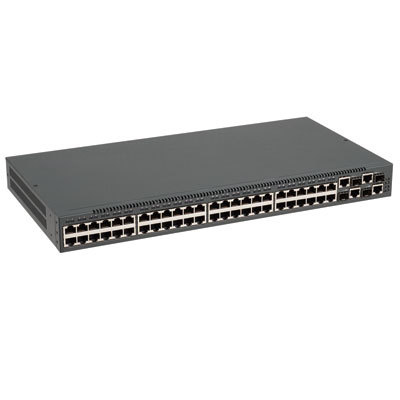

MODEL- SMC6152L2          VENDOR- SMC

FEATURES- TigerSwitch 10/100 Switch
       10/100 Standalone 48-port 10/100 Managed Layer 2 Switch with 4 x
        Gigabit combo ports!
       The SMC6152L2 provides wire speed 10/100 Fast Ethernet switching
        with features specifically designed for SMB workgroup environments.
        The switch has 4 built in Gigabit ports providing enhanced uplink
        capabilities. An integrated part of this switch family is the IP
        Clustering function. The feature allows customers to group together
        up to 32 switches into a single logical group which can be managed
        using a single IP address.
       The switch features advanced Quality of Service features that can
        reduce the latency of packets through the network, with specific
        traffic prioritization improving the delivery of converged data
        such as voice and high quality video over IP. Other standard
        features included are Spanning Tree and IGMP for protecting your
        network against loops and managing your IP multicasts enhances the
        productivity and problem free networking. The gigabit ports are 4
        Combo gigabit ports (RJ-45/SFP). Overall this switch is part of
        flexible switch family which brings PoE and non-PoE switches to the
        edge of the network.

  -- SPECIFICATIONs -----------------------------------
CONNECTORS   - (48) 10/100BASE-T ports
               ( 4) Gigabit combo ports (RJ-45/SFP)
               ( 1) Console port
NETWORK INTERFACE-
               10/100 BASE-T ports
               10/100/1000 BASE-T ports
               SFP Transceiver slots supporting SX, LX and ZX SFP
               Multimode fiber cable: 62.5/125 or 50/125 microns
               Singlemode fiber cable: 9/125 micron
SWITCHING FABRIC-
               17.6Gbps
               13.0Mpps
BUFFER ARCHITECTURE-
               4Mbits
SWITCHING DATABASE-
               8K MAC address entries
INDICATORS   - System LEDs: Power, Diagnostics
               Port LEDs  : Link/Activity
SWITCH FEATURES-
               Spanning Tree Protocol (802.1D, .1w)
               Forwarding Mode: Store-and-forward
               VLAN Support: Up to 255 groups; port-based or with 802.1Q
                             VLAN tagging, GVRP for automatic VLAN learning
                             802.1v (Protocol based Vlans)
                             Private VLAN support
               Quality of Service
                 Supports 4 levels of priority with flexible classification
                   and prioritization.
                 Per port bandwidth management
               MultiLink Trunking (LACP)
                 8 groups of up to 8 ports
               Port Mirroring
               IEEE 802.1x
               L2/L3/L4 access control lists
               TACACS+ client authentication
               HTTPS and SSL
               SSH for Telnet sessions
               Static port security
               Jumbo Frame support (on gigabit ports)
               Dual firmware images
               Multiple configuration files support
MANAGEMENT   - In-Band Management
                 Telnet, SLIP, Web-based HTTP, or SNMP manager
               Out-of-Band Management
                 RS-232 DB-9 console port
               Software Loading
                 TFTP in-band or Xmodem out-of-band
               MIB Support
                 MIB II (RFC 1213), Bridging MIB (RFC 1493), Ethernet-Like
                   MIB (RFC 2665), Bridge MIB Extensions (RFC 2764), RMON
                   MIB (RFC 1757), RFC 2737, RFC 2742, RFC 2021, RFC 2863,
                   RFC 2618, SMC's private MIB.
STANDARDS    - IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet
               IEEE802.1D Spanning Tree Protocol and traffic priorities
               IEEE802.1p Priority tags
               IEEE802.1Q VLAN
               IEEE802.1ac VLAN tagging
               IEEE802.1ad Link aggregation control protocol
               IEEE802.1w Rapid Spanning Tree
               IEEE802.1v Protocol Based Vlans
RMON SUPPORT - Groups 1,2,3, 9 (Statistics, History, Alarm, Event)
ACCESSORIES  - SMC1GSFPSX    1G SX SFP Transciever, 550M, Multimode fiber
               SMC1GSFPLX    1G LX SFP Transciever, 10Km, Singlemode fiber
               SMC1GSFPZX    1G LH SFP Transciever, 70Km Singlemode fiber
APPROVALS    - IEC8802.3
               CE Mark, Emissions, FCC Class A, Industry Canada Class A,
                 EN55022 (CISPR 22) Class A, EN 61000-3-2/3, VCCI Class A,
                 Immunity, EN 61000-4-2/3/4/5/6/8/11.
               UL/CUL (UL 60950-1, CSA 22.2 NO60950-1), TUV/GS (EN60950-1),
                 CB (IEC60950-1).
MTBF         - 8 Years
POWER SOURCE - Internal, auto-ranging transformer: 100-240 VAC, 50/60 Hz
               External, supports connection for redundant power supply
               Consumption 30 watts max.
DIMENSIONS   - 17.3"w x 6.7"h x 9.055"d        WT.- 6.94 lbs.
