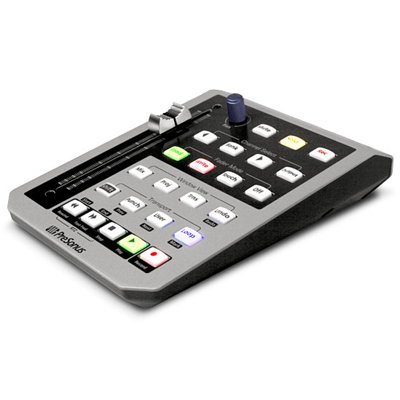

MODEL- FADERPORT          VENDOR- PRESONUS AUDIO

FEATURES- FaderPort - Personal Motorized Fader for DAW Transport
       The FaderPort puts the feel, vibe, and efficiency back into music
        recording and production. No more clicking through menus and
        drawing automation edits with a mouse. The easy-to-use FaderPort
        delivers complete transport control for fast and efficient
        recording along with motorized fader for writing fades and
        automation. The high-quality ultra-smooth motorized long throw
        fader on the FaderPort has the feel needed for recording perfect
        fades and writing automation in real-time. Pan, mute, solo, and
        record enable can also be easily controlled with the FaderPort
        along with window selection, play, stop, record, and managing
        markers (locate points) for fast and easy recording. A foot switch
        jack is also included on the FaderPort for hands free punch-in/out
        recording. The FaderPort works with all Mac or Windows-based
        recording software including Pro Tools, Cubase, Nuendo, Logic and
        more.
    Includes FaderPort, USB cable, power supply, rubber feet.
* Complete recording transport control
* Touch sensitive, long throw motorized fader
* Write single channel or group channel automation
* Pan control, mute, solo, record enable
* Quick window selection (edit, mix, transport)
* Footswitch jack for hands free punch in/out
* Compatible with all major recording software including Pro Tools, Cubase,
  Nuendo, Logic, and more.
* Mac and Windows compatible

  -- SPECIFICATIONs -----------------------------------
EMULATION     - Pro Tools and Logic uses HUI Control, Nuendo and Cubase
                  uses custom FaderPort control driver.
CONTROLS      - PAN, MUTE, SOLO, REC, channel selection with BANK, OUTPUT
                  (master fader), READ, WRITE, TOUCH, OFF (fader mode),
                  Window View (MIX, PROJ {edit}, TRNS (transport), UNDO,
                  START, END, PUNCH IN, USER, LOOP, REWIND, FAST FORWARD,
                  STOP, PLAY RECORD. (functionality varies slightly between
                  DAW software applications).
COMPATIBILITY - The FaderPort has been tested and approved to work with the
                  following software: Pro Tools ver. 6 and later
                                      Pro Tools M-Powered ver. 6 and later
                                      Logic ver. 6 and later
                     (note OUTPUT and USER buttons are not supported in HUI
                        Control - Pro Tools and Logic).
                                      Nuendo 2 and later
                                      Cubase SX 2 and later
                                      Cubase SL 2 and later
                     (note Cubase LE and Cubase SE are NOT supported)
REQUIREMENTS  - Windows XP or Mac OS X operating system
                one available USB port
POWER SOURCE  - Operational via USB bus, motorized fader powered via 9V 2A
                  DC external power supply.
DIMENSIONS    - 7" x 5.25" x 1.75"          WT.- 1 lb.
 www.presonus.com
