MODEL- INSPIRE            VENDOR- PRESONUS AUDIO

FEATURES- Inspire 1394  FireWire Recording System
       The INSPIRE 1394 is a revolutionary FireWire Recording System
        featuring professional quality 24-bit/96k analog to digital
        conversion rate, four simultaneous inputs, software control panel
        as well as audio recording and production software giving you the
        smallest, most flexible, most affordable and all-inspiring computer
        recording studio ever!
       The INSPIRE 1394 is loaded with state of the art components and
        technology enabling the easiest computer recording experience ever.
        The INSPIRE 1394 installs effortlessly on both Windows XP and
        Macintosh-based computers and works seamlessly with virtually all
        popular recording software including Cubase, Nuendo, Sonar,
        Cakewalk, Logic, Logic Express, Digital Performer and many others.
        The microphone and instrument preamplifiers loaded in the INSPIRE
        1394 are designed to deliver ultra-low noise, high gain
        preamplification for all types of microphones and instruments
        needed for professional quality recordings.
* Ins and Outs

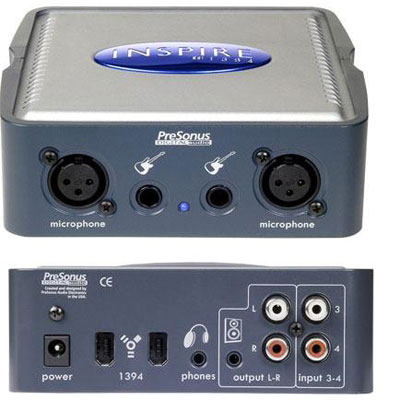

   The front panel of the INSPIRE 1394 features two custom-designed
   PreSonus microphone preamplifiers with +48V phantom power and two
   instrument Hi-Z inputs. The back of the INSPIRE features selectable line
   or phono (with RIAA filter) inputs great for all types of keyboards,
   samplers, drum machines and turntables. Outputs on the INSPIRE 1394
   include RCA unbalanced and mini TRS jacks as well as headphone output.
* Software Control Panel
   The INSPIRE 1394 is completely controlled by an easy-to-use software
   mixer interface called the CONTROL PANEL. Controls include, input gain,
   phantom power, limiter (off/on), preamp boost (off/on), sample rate,
   headphone volume, main output volume as well as zero latency input
   mixing with playback mixing. This software control panel also serves as
   a mixer between your computer playback and your inputs for zero latency
   recording. The software control panel also features LOAD, SAVE
   functionality so that you can save and recall all of your settings from
   session to sesson.
* Daisy Chain for More Inputs
   The INSPIRE 1394 is equipped with two FireWire connectors enabling the
   ability to daisy-chain up to FOUR INSPIRE 1394's together for up to
   sixteen simultaneous inputs at 24-bit/96k recording rate.
* ProPak Software Suite
   The INSPIRE 1394 comes complete with the ProPak software suite including
   Cubase LE recording and production software, Sony's ACID XMC, Discwelder
   Bronze, Discrete Drums, 25 real-time effects plug-ins and over 3 GB of
   drum loops and samples giving you a complete and professional music
   production environment.

  -- SPECIFICATIONs -----------------------------------
PERFORMANCE  -  24-bit/96kHz Sampling
                Full Digital control and recall from the Control Panel
                Low Latency hardware mixer configured from the Control
                  Panel.
                Mac (Core Audio) and PC (WDM and ASIO 2.0) compliant.
                THD+N < 0.008%
                S/N > 95dB
CONNECTORS   - (2) Microphone/Instument inputs via separate XLR-1/4" TS
                     connectors.
               (2) Line Level (-10dB)/Phono inputs via Stereo RCA
                     connectors.
               Stereo Line Level Outputs via Stereo RCA connector or
                 3.5mm TRS.
               Stereo Headphone Output via 3.5mm TRS
               Sync Indicator LED.
               (2) IEEE1394 (Firewire) ports at 400Mb/s capable of bus
                     powering the unit.
               Aux power input jack.
 www.presonus.com
