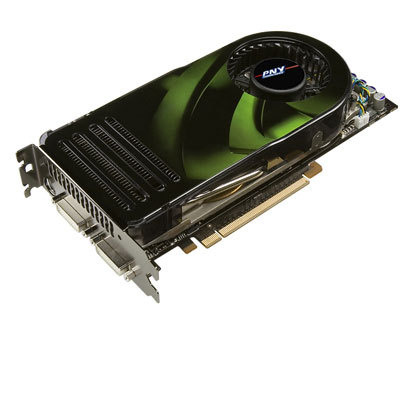

MODEL- VCG88GTS32XPB      VENDOR- PNY TECHNOLOGIES

FEATURES- GeForce 8800 GTS 320MB PCI-Express
       Get ready to XLR8! Redefine reality with NVIDIA SLI-Ready GeForce
        8800 graphics processing units (GPUs). The world s first DX10 GPUs
        feature a unified architecture and unprecedented levels of graphics
        performance and realism.
* NVIDIA unified architecture
   Fully unified shader core dynamically allocates processing power to
   geometry, vertex, physics, or pixel shading operations, delivering up to
   2x the gaming performance of prior generation GPUs.
* GigaThread Technology
   Massively multi-threaded architecture supports thousands of independent,
   simultaneous threads, providing extreme processing efficiency in
   advanced, next generation shader programs.
* Full Microsoft DirectX 10 Support
   World's first DirectX 10 GPU with full Shader Model 4.0 support delivers
   unparalleled levels of graphics realism and film-quality effects.
* NVIDIA SLI Technology
   Delivers up to 2x the performance of a single graphics card
   configuration for unequaled gaming experiences by allowing two cards to
   run in parallel. The must-have feature for performance PCI Express
   graphics, SLI technology dramatically scales performance on today's
   hottest games.
* NVIDIA Lumenex Engine
   Delivers stunning image quality and floating point accuracy at ultra-
   fast frame rates:
    - 16x Anti-aliasing: Lightning fast, high-quality anti-aliasing at up
      to 16x sample rates obliterates jagged edges.
    - 128-bit floating point High Dynamic-Range (HDR): Twice the precision
      of prior generations for incredibly realistic lighting effects--now
      with support for anti-aliasing.
* NVIDIA Quantum Effects Technology
   Advanced shader processors architected for physics computation enable a
   new level of physics effects to be simulated and rendered on the GPU--
   all while freeing the CPU to run the game engine and AI.
* NVIDIA ForceWare Unified Driver Architecture (UDA)
   Delivers a proven record of compatibility, reliability, and stability
   with the widest range of games and applications. ForceWare provides the
   best out-of-box experience and delivers continuous performance and
   feature updates over the life of NVIDIA GeForce GPUs.
* OpenGL 2.0 Optimizations and Support
   Ensures top-notch compatibility and performance for OpenGL applications.
* NVIDIA nView Multi-Display Technology
   Advanced technology provides the ultimate in viewing flexibility and
   control for multiple monitors.
* PCI Express Support
   Designed to run perfectly with the PCI Express bus architecture, which
   doubles the bandwidth of AGP 8X to deliver over 4 GB/sec. in both
   upstream and downstream data transfers.
* Dual 400MHz RAMDACs
   Blazing-fast RAMDACs support dual QXGA displays with ultra-high,
   ergonomic refresh rates--up to 2048x1536@85Hz.
* Dual Dual-link DVI Support
   Able to drive the industry's largest and highest resolution flat-panel
   displays up to 2560x1600.
* Built for Microsoft Windows Vista
   NVIDIA's fourth-generation GPU architecture built for Windows Vista
   gives users the best possible experience with the Windows Aero 3D
   graphical user interface.
* NVIDIA PureVideo HD Technology
   The combination of high-definition video decode acceleration and post-
   processing that delivers unprecedented picture clarity, smooth video,
   accurate color, and precise image scaling for movies and video.
    - Discrete, Programmable Video Processor: NVIDIA PureVideo is a
      discrete programmable processing core in NVIDIA GPUs that provides
      superb picture quality and ultra-smooth movies with low CPU
      utilization and power.
    - Hardware Decode Acceleration: Provides ultra-smooth playback of
      H.264, VC-1, WMV and MPEG-2 HD and SD movies.
    - HDCP Capable: Designed to meet the output protection management
      (HDCP) and security specifications of the Blu-ray Disc and HD DVD
      formats, allowing the playback of encrypted movie content on PCs when
      connected to HDCP-compliant displays.
    - Spatial-Temporal De-Interlacing: Sharpens interlaced content on
      progressive displays, delivering a crisp, clear picture that rivals
      high-end home-theater systems.
    - High-Quality Scaling: Enlarges lower resolution movies and videos to
      HDTV resolutions, up to 1080i, while maintaining a clear, clean
      image. Also provides downscaling of videos, including high-
      definition, while preserving image detail.
    - Inverse Telecine (3:2 & 2:2 Pulldown Correction): Recovers original
      film images from films-converted-to-video, providing more accurate
      movie playback and superior picture quality.
    - Bad Edit Correction: When videos are edited after they have been
      converted from 24 to 25 or 30 frames, the edits can disrupt the
      normal 3:2 or 2:2 pulldown cadence. PureVideo uses advanced
      processing techniques to detect poor edits, recover the original
      content, and display perfect picture detail frame after frame for
      smooth, natural looking video.
    - Video Color Correction: NVIDIA's Color Correction Controls, such as
      Brightness, Contrast and Gamma Correction let you compensate for the
      different color characteristics of various RGB monitors and TVs
      ensuring movies are not too dark, overly bright, or washed out
      regardless of the video format or display type.
    - Integrated SD and HD TV Output: Provides world-class TV-out
      functionality via Composite, S-Video, Component, or DVI connections.
      Supports resolutions up to 1080p depending on connection type and TV
      capability.
    - Noise Reduction: Improves movie image quality by removing unwanted
      artifacts.
    - Edge Enhancement: Sharpens movie images by providing higher contrast
      around lines and objects.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- PCI-Express x16 slot (NVIDIA SLI-Ready)
MAIN MEMORY  - 320MB DDR
               320-bit Memory Interface
               64GB/sec. Memory Bandwidth
               1.6 GHz Memory Frequency (effective)
CHIPSET      - nVIDIA GeForce 8800GTS GPU
               24 Billion Pixels/sec. Fill Rate
               96 Stream Processors
               1200MHz Shader Clock
               500MHz Core Clock
CONNECTORs   - (1) HDTV/S-Video port
               (2) 24-Pin DVI ports
RESOLUTION   - Two dual-link DVI outputs support two 2560x1600 resolution
                 displays.
MISCELLANEOUS- NVIDIA unified architecture with GigaThread technology
               Full Microsoft DirectX 10 Shader Model 4.0 support
               16x full-screen anti-aliasing
               True 128-bit floating point high dynamic-range (HDR)
                 lighting.
               NVIDIA Quantum Effects physics processing technology
               NVIDIA PureVideo HD technology
               HDCP Capable
               OpenGL 2.0 support
               NVIDIA ForceWare Unified Driver Architecture (UDA)
               Built for Microsoft Windows Vista
REQUIREMENTS - Intel Pentium III, AMD Duron or Athlon class processor or
                 higher.
               256MB system RAM
               A minimum 400W system power supply (with 12V current rating
                 of 26A).
               A PCI Express compliant motherboard with one x16 graphics
                 slot.
               One 6-pin supplementary power connector
               50MB of available hard disk space
               CD-ROM or DVD-ROM drive
               Microsoft Windows 2000, XP
               VGA or DVI-I compatible monitor
 www.pny.com
