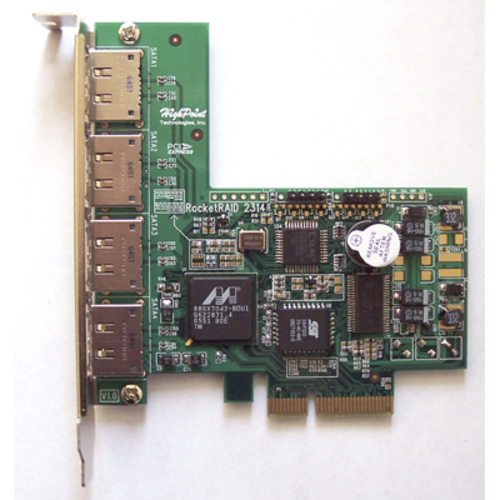

MODEL- RR2314             VENDOR- HPT USA/HIGHPOINT TECH

FEATURES- RocketRAID 2314 Host Adapter
       Four external eSATA PCI-e SATA II RAID Controller!
       Initially SATA was designed as an internal or inside-the-box
        interface technology, bringing improved performance and new
        features to internal PC or consumer storage. Creative designers
        quickly realized the innovative interface could reliably be
        expanded outside the PC, bringing the same performance and features
        to external storage needs instead of relying on USB or 1394
        interfaces.
       Called external SATA or eSATA, customers can now utilize shielded
        cable lengths up to 2 meters outside the PC to take advantage of
        the benefits the SATA interface brings to storage.
       SATA is now out of the box as an external standard, with
        specifically defined cables, connectors, and signal requirements
        released as new standards in mid-2004. eSATA provides more
        performance than existing solutions and is hot pluggable.
    Includes PCI Express Controller, (2) internal eSATA cables,
       (2) external eSATA cables, driver CD and User guide.
* Port Multiplier (PM) Ready
* Up to 4 SATA II or SATA I Hard Drives
* Support RAID 0, 1, 5, 10, and JBOD
* Compatible with eSATA enclosures
* Native Command Queuing (NCQ) for improved random performance
* Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
* Staggered drive spin up
* Bad Sector Repair/Remapping
* BIOS Booting (INT13) to RAID array
* Quick and Background initialization for instant RAID access
* Write through and write back cache for RAID arrays
* Hot swap and hot spare
* Online array roaming
* Automatic detect drive to rebuild degraded RAID
* S.M.A.R.T array monitoring for hard drive status and reliability
* 64-bit LBA for RAID arrays greater than 2TB
* Web browser-base software (Web GUI)
* Command Line Interface (CLI)
* SMTP email notification for events and error reporting
* Remote array management through (Web GUI, RAID GUI and CLI)
* Support Windows (XP, 2000, Server 2003, x64 Edition and (32 and 64-bit
  Vista), Linux, FreeBSD and Mac OS X.
* RoHS Compliant

  -- SPECIFICATIONs ------------------------------------
HOST SIDE INTERFACE - PCI-Express x4 (x8 and x16) slot compatible
DEVICE INTERFACE    - SATA I or SATA II
# OF CHANNELS       - (4) External eSATA connectors at 3Gb/s per port
RAID LEVELS         - Supports RAID 0, 1, 5, 10, and JBOD
O/S SUPPORT         - Windows (XP, 2000, Server 2003, x64 Edition and
                        (32 and 64-bit) Vista), Linux, FreeBSD and
                        Mac OS X.
RAID MANAGEMENT TOOL- BIOS
                      Browser-based RAID Management CLI
APPROVALS           - FCC B, CE
DIMENSIONS          - 4.16"w x 3.99"d
www.highpoint-tech.com
