Product Description:
| Product Description |

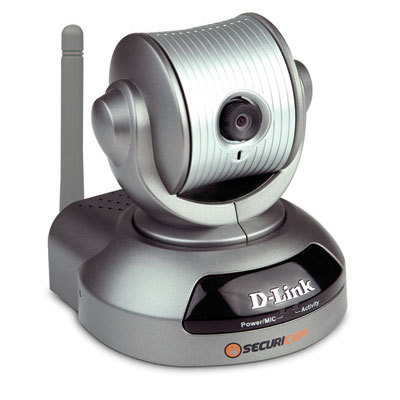

D-Link DCS 5220 Wireless Pan/Tilt Internet Camera - network
camera |
| Device Type |
Network camera - pan / tilt |
| Dimensions (WxDxH) |
4.1 in x 4.3 in x 4.4 in |
| Weight |
11.2 oz |
| Camera |
Color |
| Optical Sensor Type |
CMOS - 1/4" |
| Minimum Illumination |
0.5 lux - F2.0 |
| Focal Length |
4 mm |
| Lens Iris |
F/2.0 |
| Interfaces |
Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g |
| Digital Zoom |
4 |
| Audio Support |
Yes : built-in microphone |
| Power |
DC 12 V |
| Features |
Auto exposure control, auto white balance, auto gain control,
e-mail alerts |
| System Requirements |
Microsoft Windows 2000 SP4, Microsoft Windows XP SP2 |
| Environmental Parameters (operating) |
32 °F ... 104 °F ; 0 - 95% relative humidity |
| General |
| Device Type |
Network camera |
| Width |
4.1 in |
| Depth |
4.3 in |
| Height |
4.4 in |
| Weight |
11.2 oz |
| Camera |
| Type |
Color - pan / tilt |
| Digital Video
Format |
MPEG-4 SP |
| Digital Zoom |
4 |
| Exposure Range |
1/15000 sec - 1/60 sec |
| Minimum
Illumination |
0.5 lux - F2.0 |
| Video Capture |
640 x 480 @ 30 fps
320 x 240 @ 30 fps
176 x 144 @ 30 fps
160 x 120 @ 30 fps |
| Still Image |
JPEG |
| Audio Support |
Yes : built-in microphone |
| Features |
Auto exposure control, auto white
balance, auto gain control, e-mail alerts |
| Image Sensor |
| Type |
CMOS 1/4" |
| Lens Construction |
| Focal Length |
4 mm |
| Lens Iris |
F/2.0 |
| Interfaces |
| Networking |
Ethernet 10Base-T/100Base-TX, IEEE
802.11b, IEEE 802.11g - DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP,
RTSP, PPPoE |
| Miscellaneous |
| Compliant
Standards |
FCC Class B certified |
| Power |
| Power
Requirements |
DC 12 V |
| Power Device |
Power adapter - external 4.8 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft Windows 2000 SP4,
Microsoft Windows XP SP2 |
| System
Requirements Details |
- 1.3 GHz - RAM 256 MB |
| Environmental Parameters |
| Operating
Temperature |
32 °F ... 104 °F |
| Relative
Humidity (operating) |
0 - 95% |
|
