Product Description:
StarTech.com’s

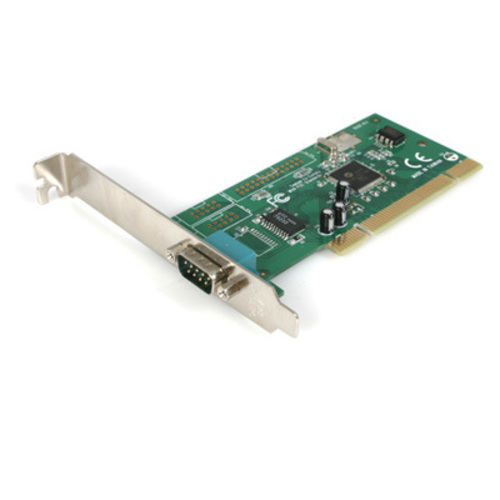

PCI1S950DV gives you high performance 16C950 serial UART channels/ports
for connecting any new or old serial peripheral, with data transfer
rates of up to 460 Kbits/sec.
Perfect for connecting serial modems, POS devices, PDAs, digital
cameras, printers, ISDN terminal adapters and more, to your system.
Installation is a breeze with the options of using PCI 5V / PCI-X 3.3V.
This card supports for Windows® Vista, XP, ME, 2000, 98, 95 and
NT4. Plus, IRQ sharing and a PCI plug and play interface, guarantee
convenient, hassle-free connections.
- Reach maximum transfer rates up to 420 Kbps
- Standard and low profile bracket included
- Works in both 3.3 and 5.0 volt PCI slots
- This product is backed by StarTech.com's lifetime warranty
Features
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable
Xon/Xoff in both directions
- Automated out-of-band hardware flow control using RTS / CTS
and/or DSR / DTR
- Maximum data transfer rate of 460 Kbps
- One high performance 16C950 UART channels
- PCI 2.2 and PCI Power Management 1.0 compliant
- UART’s fully compatible with 16C550 type devices
Applications
- Manufacturing (CNC machinery, process control equipment, bar code
scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code
scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card
readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations,
modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard,
mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial
printers)
- ISDN Networking
Specifications
| Warranty |
Lifetime |
| Bus Type |
PCI-X
(3.3 Volt) |
| Connector
Types |
1 - DB9
Male |
| Number of
Ports |
1 |
| Carton
Quantity |
48 |
| Bus Type |
PCI 5V /
PCI-X 3.3V |
| Maximum
Data Transfer Rate |
460Kbps
(Note: Crystal will need to be adjusted to achieve 460Kbps) |
| OS Support |
Windows
NT4, 95 / 98 / ME / 2000 / XP / Vista and Linux |
|
